Blaupunkt ACR 3251 Operating Instructions Manual

Blaupunkt car stereo system user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating instructions
ACR 3251
1

Advertisement

Table of Contents
loading

Related Manuals for Blaupunkt ACR 3251

Summary of Contents for Blaupunkt ACR 3251

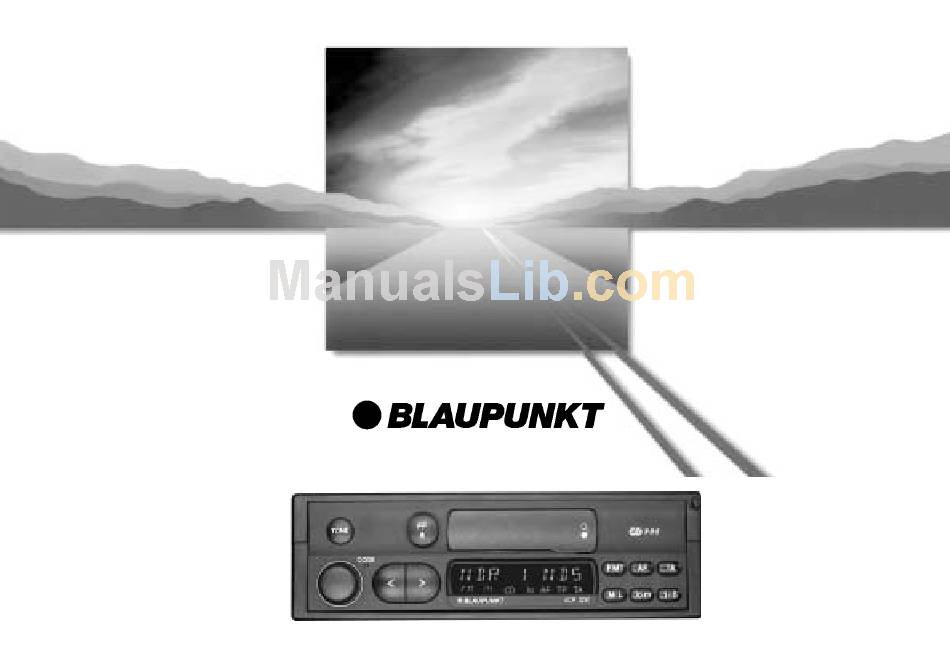

  • Page 1 Operating instructions ACR 3251...
  • Page 2 QuickOut (Option) < QuickOut (Option)

  • Page 3: Table Of Contents

    Table of contents Short instructions ... 14 Important notes ... 16 Precautions ... 16 Traffic safety ... 16 QuickOut ... 16 Installation/Connection ... 16 Anti-theft protection ... 16 Entry of a wrong code number ... 16 Switching on security coding ... 17 Re-start following an interruption of the power supply ...

  • Page 4: Short Instructions

    Short instructions 1 On / Off: Turn the knob. To adjust the volume: Turn the knob. 2 TONE – audio To adjust the BASS TREBLE (Treble control) To alter a setting: Toggle the TONE button until the corre- sponding abbreviation and the adjusted value appear in the display.
  • Page 5 9 lo·m lo (local) - To alter the seek tuning sen- sitivity during radio operation. If “lo” is displayed, the radio will only pick up strong, local stations (normal sensitivity). If “lo” does not light up, the radio will also pick up weaker, distant stations (high sensitivity).

  • Page 6: Important Notes

    Do not ground the loudspeaker outputs! Use only the accessory and replacement parts approved by Blaupunkt. Anti-theft protection This car radio is supplied with inactive code protection. In order to switch the security coding system on, proceed as described in the following.

  • Page 7: Switching On Security Coding

    Turn on the radio. The display shows “CODE”. • Enter the code number given in the Blaupunkt car radio passport and con- firm (see example under “Switching on security coding”). The unit is now ready for use. Switching off security coding •...

  • Page 8: Radio Operation With Rds

    Radio operation with RDS (Radio Data System) The Radio Data System offers you more convenience when listening to FM radio sta- tions. More and more radio stations have begun to broadcast RDS information alongside their programmes. As soon as a programme has been identified, the station name including a regional identi- fier, if applicable, will appear in the display, for example, NDR1 NDS (regional program-...

  • Page 9: Manual Tuning

    When keeping the or the button de- pressed, seek tuning will speed up in up- wards or downwards direction. Manual tuning Prerequisite: “m” lights up in the display. Toggle the lo·m button until “m” is displayed. • Press ; the frequency will change in short intervals in upwards or down- wards direction.

  • Page 10: Recalling Stored Stations

    This function is particularly convenient on longer trips. • Press the FM·T button until the search process begins. The radio will search for the strongest FM stations and store them on the memory bank “T” (Travelstore). When this process has been completed, the radio will play the first station.

  • Page 11: Automatic Seek Tuning Start

    Automatic seek tuning start Prerequisite: The priority for traffic announcements has been activated. When leaving the reception area of the tuned in traffic programme station while listening to a tape or after having turned down the vol- ume completely, the system will automati- cally start searching for a new TA programme.

  • Page 12: Specifications

    Specifications Amplifier Output power: 2 x 10 W RMS power acc. to DIN 45324/3.1 into 2 FM waveband Sensitivity: 1.3 V at 26 dB signal-to-noise ratio Frequency response: 35 - 15 000 Hz Tape player Frequency response: 30 - 14 000 Hz Subject to modifications!
