Summary of Contents for Blaupunkt ACR 4251

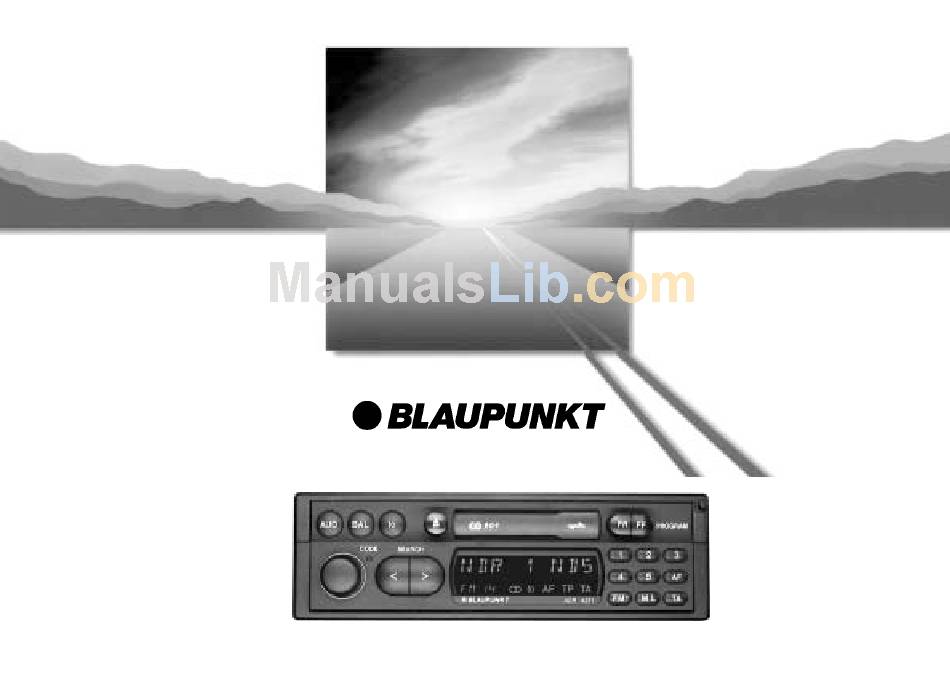

- Page 1 Operating instructions ACR 4251...
- Page 2 QuickOut (Option) 2 3 4 < ; : > QuickOut (Option)
-
Page 3: Table Of Contents
Table of contents Short instructions ... 15 Important notes ... 17 Precautions ... 17 Traffic safety ... 17 QuickOut ... 17 Installation/Connection ... 17 Anti-theft protection ... 18 Entry of a wrong code number ... 18 Switching on security coding ... 18 Re-start following an interruption of the power supply ... -
Page 4: Short Instructions
Short instructions 1 On / Off: Turn the knob. To adjust the volume: Turn the knob. 2 AUD – audio To adjust the BASS TREBLE (Treble control) To alter a setting: Toggle the AUD button until the corre- sponding abbreviation and the adjusted value appear in the display. - Page 5 8 1,2,3,4,5 - preset buttons You can store five stations on each FM memory bank (I, II and “T”). On MW/LW, you can store five stations for each waveband. To store a station: Press button dur- ing radio operation and hold down until the radio resumes play and a beep sound is heard.
-
Page 6: Important Notes
If you would like to install this equipment yourself or add any new components, please carefully read the installation and connection instructions following the appendix. Do not ground the loudspeaker outputs! Use only the accessory and replacement parts approved by Blaupunkt. -
Page 7: Anti-Theft Protection
(coding system is activated) • Turn on the radio. The display shows “CODE”. • Enter the code number given in the Blaupunkt car radio passport and con- firm (see example under “Switching on security coding”). The unit is now ready for use. -
Page 8: Switching Off Security Coding
Switching off security coding • Turn off the radio. • Press preset buttons 1 and 4 simul- taneously and hold down while • switching the set on again. The display shows “CODE”. • Now enter the code number to be found in the car radio passport and confirm (see example under “Switching on security coding”). -
Page 9: Selecting A Waveband
• Press the AF button for approximately 2 seconds until you hear the beep and “REG OFF” is indicated in the display. When active, “REG ON” will be briefly dis- played each time the radio is switched on. Selecting a waveband You can choose between the following wave- bands: FM 87.5 - 108 MHz... -
Page 10: Storing Stations
Storing stations On FM, you can store five stations on the preset buttons 1 to 5 for each of the memory banks I, II and T. On MW/LW, you can store five stations for each waveband. • Select the waveband with FM or M·L button, for FM select the memory bank with FM... -
Page 11: Receiving Traffic Programme Stations With Rds-Eon
Receiving traffic programme stations with RDS-EON Many FM broadcasters offer traffic mess- ages for their service area at regular inter- vals. All traffic programme stations transmit a spe- cial carrier signal alongside their program- mes, which is decoded by your car radio. If this signal is identified, “TP”... -
Page 12: Tape Operation
Tape operation Inserting a tape • Turn on the set. • Insert a tape. Insert the tape with side A or 1 showing up, the open side facing to the right. = Press to eject the tape. The tape will be played in the direction used last. -
Page 13: Appendix
Appendix Mechanism/cassette tapes To avoid possible problems, you should not use cassette tapes longer than 60 or 90 minutes (C60/C90). Store your tapes in a cool place away from dirt, dust and temperatures exceeding 50 Celsius. Allow very cold tapes to warm up before playing them in order to avoid uneven transport.
