Summary of Contents for Blaupunkt ACD 9431

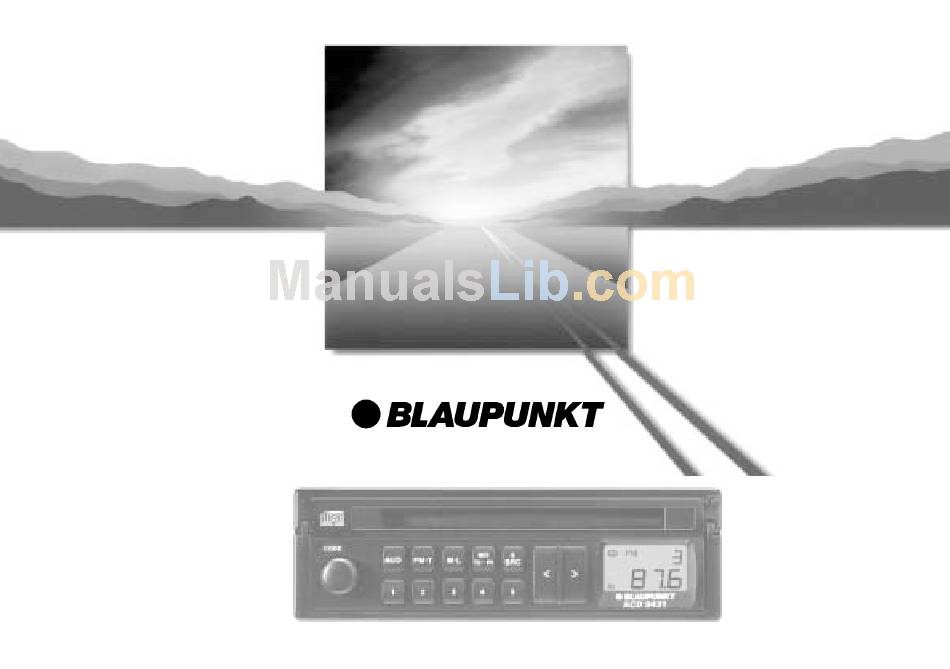

- Page 1 Operation Instructions ACD 9431...
- Page 2 QuickOut QuickOut Radio...
-
Page 3: Front Panel Description
Front Panel Description 1 ON/OFF Switch on the set by turning knob 1. 2 AUD button (sound control/broader interior sound impression) BAS – Adjustment of the low frequen- cies via buttons < > 7. TRE – Adjustment of the high frequen- cies via buttons <... -
Page 4: Table Of Contents
Contents Front Panel Description ... 12 Important information ... 13 What you need to know! ... 13 Traffic safety ... 13 QuickOut ... 13 Installation/connection ... 14 Anti-theft coding ... 14 Wrong code number entered ... 14 Switching the code system on ... 14 Restart following interruption of power supply ... -
Page 5: Installation/Connection
Do not connect the loudspeaker outputs to ground! Only use the accessory and replacement parts approved by Blaupunkt. Anti-theft coding The car radio comes standard with the code system deactivated. If the anti-theft coding system is on while the power supply to the unit is interrupted (e.g. -
Page 6: Restart Following Interruption Of
• Turn the set on. “Cod” will appear in the display. • Enter the code number given in the Blaupunkt car radio passport and con- firm: See example “Restart following interruption …”. The code system is now deactivated. Amplifier Section... -
Page 7: Balance And Fader Control
Balance and Fader Control Balance control To balance the sound level left/right: Press the AUD button 2 until bal is • shown on the display. Press rocker switch < > 7 on the left or right to adjust the sound impression according to your personal preferences. -
Page 8: Cd Section
Mono/Stereo Operation If the lo•m button 5 is pressed longer than 2 secs. but less than 8 secs., the set swit- ches over to mono and the stereo symbol (h) goes off. If the lo•m button 5 is pressed longer than 2 secs. -
Page 9: Changing The Audio Source With Src
Review (Fast backward): • Keep depressed the left side of the rocker switch < > 7 for more than than 1 second. Mix Function Press the Mix button 5 to listen to the titles in an arbitrary order. When Mix is on, the “Mix” indication lights up on display 9 j.
