To make sure that the RAID array is configured correctly:
1. Run raidconfig status
The new hard disk drives are shown with the RAID 10 arrays.
2. Run lvdisplay /dev/vg_splat/lv_log
The additional hard drive storage is shown.

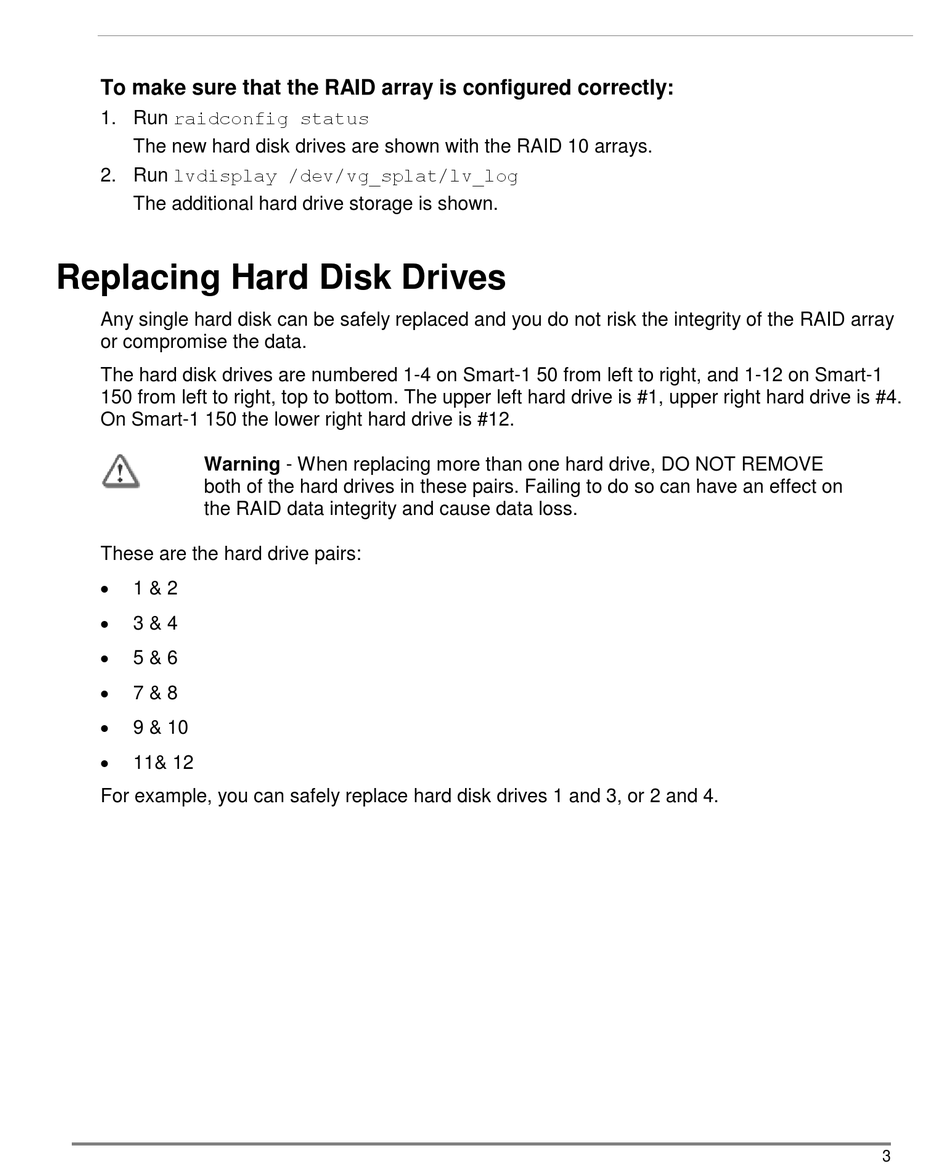

Replacing Hard Disk Drives

Any single hard disk can be safely replaced and you do not risk the integrity of the RAID array
or compromise the data.
The hard disk drives are numbered 1-4 on Smart-1 50 from left to right, and 1-12 on Smart-1
150 from left to right, top to bottom. The upper left hard drive is #1, upper right hard drive is #4.
On Smart-1 150 the lower right hard drive is #12.
Warning - When replacing more than one hard drive, DO NOT REMOVE
both of the hard drives in these pairs. Failing to do so can have an effect on
the RAID data integrity and cause data loss.
These are the hard drive pairs:

1 & 2

3 & 4

5 & 6

7 & 8

9 & 10

11& 12
For example, you can safely replace hard disk drives 1 and 3, or 2 and 4.
