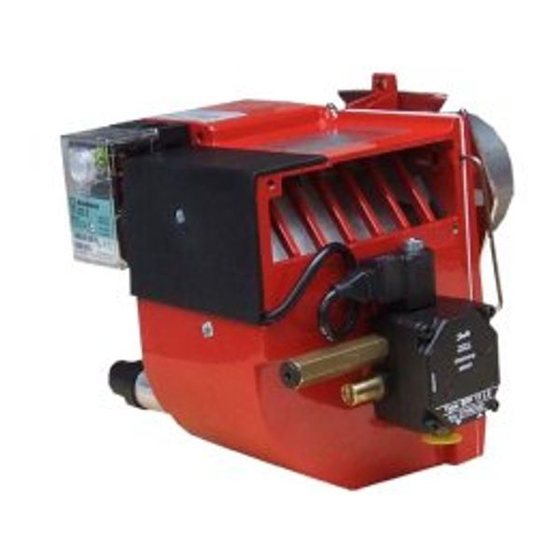

- Page 1 178 153 15-1 2019-08-30 Providing sustainable energy solutions worldwide Installation- and maintenance instruction ST50 ST 120 KA...
- Page 2 Bentone...
-
Page 3: Table Of Contents
General Table of contents 1. General Information __________________________________ 4 2. Technical data _______________________________________ 7 2.1 Dimensions ST 120 _______________________________ 7 2.2 Dimensions, flanges _______________________________ 8 2.3 Burner installation _________________________________ 8 2.5 Working field ST 120KA ____________________________ 9 2.4 Setting of brake plate and air flow ___________________ 9 2.6 Recommended nozzles and pressures ______________ 10 2.7 Nozzle table, 8-15 bar ____________________________ 10 2.8 Description ______________________________________ 11... -
Page 4: General Information
• work with the burner may only be carried out by certified installers/ personnel • Enertech AB is not liable for any typographical errors and reserves the right to make design changes without prior notice. • The burner may only be used for its intended purpose in accordance with the product’s technical data. - Page 5 • The electrical installation must be professionally carried out in accordance with applicable high voltage regulations, as per Enertech’s recommendations. • Before servicing, shut off the fuel supply and turn off the power to the burner. • Leak checks must be performed during installation and servicing to prevent fuel leakage.
- Page 6 Burner servicing schedule Servicing must be carried out once a year or after 3000 hours of operation Burner 1 year 3000 hrs Filter 1 year 3000 h Change Oilhose 1 year control/change Nozzle 1 year change 3000h Change Electrods 1 Year Change /cleaning 3000h Change /cleaning Brake plate 1 Year Change /cleaning...
-
Page 7: Technical Data
2. Technical data The burner is intended for: • Light oil, B10 heating oil/biofuel blend (as defined in DIN V51603-6) and is used for: • Water heating generators • Hot air generators (these require LMO 24 255 C2E) 2.1 Dimensions ST 120 * Min. -
Page 8: Dimensions, Flanges
2.2 Dimensions, flanges Protrusion from flange, measurement A Length of blast tube Flange Flange 1 Flange 2 ø89,7 ø90 130-150 125-150 2.3 Burner installation 2.3.1 Hole patten Make sure the hole pattern on the boiler is designed for burner flange. Combustion device ST 120 KA... -
Page 9: Working Field St 120Ka
2.5 Working field ST 120KA 2,0-5,6 kg/h 24-66 kW mbar -0,3 20,0 30,0 40,0 50,0 60,0 70,0 2.5.1 Electric Specification Burner correspond to IP 20 Type Motor Complete Sound burner ST 120 KA 90W 0,75A 230V 230V 0,8A 70 dBA ± 0,5 50/60Hz 4µF 50Hz 2.4 Setting of brake plate and air flow... -
Page 10: Recommended Nozzles And Pressures
2.6 Recommended nozzles and pressures Because of the different types of boiler in existence, with varying furnace geometries and furnace loads, it is not possible to commit to any given spray angle or spay pattern. Note that spray angles and spray patterns change with pump pressures. -
Page 11: Description
2.8 Description Reset button Ignition electrodes 17. Adjustment, air damper Control box 10. Connecting pipe 18. Photoresistor Ignition transformer 11. Air damper 19. Motor Ignition cables 12. Solenoid valve 13. Pump Nozzle assembly Nozzle 14. Drive coupling Brake plate 15. Indication, air damper Blast tube 16. -
Page 12: General Instructions
3. General instructions 3.1 General instructions Oil burners must be installed in accordance with local regulations. The installer must therefore be knowledgeable of the regulations pertaining to oil and combustion. Only oil suitable for the burner must be used and then in combination with a suitable oil filter installed before the burner’s oil pump. -
Page 13: Delivery Inspection
• Burners must be connected to an all-pole switch. • Connection must conform to the wiring diagram. • Use appropriately sized fuses. If any electrical connection is used other than that recommended by Enertech, there may be a risk of damage to property and personal injury. Bentone... -
Page 14: Burner Installation
3.6 Burner installation 3.6.1 Hole pattern Make sure the hole pattern on the burner corresponds to the supplied flange (refer to Technical data). 3.6.2 Burner installation Install the flange with gasket on the boiler. Fit the selected nozzle (refer to Technical data). Install the brake plate and check the ignition electrodes (refer to Burner Servicing). -
Page 15: Basic Settings
4. Basic settings 4.1 Example of basic settings 4.1.1 Choice of nozzle ST 120 R 69-16 Burner output 30 kW Estimated nozzle output: 30 / 11.86* 2.53 kg/h Choice of nozzle according to the table (refer to Technical data). According to the nozzle table, this provides the following nozzle. Nozzle: 0.65 GPH Pump pressure:... - Page 16 Bentone...
- Page 17 4.1.2 Insert control The burner is equipped with a lever that changes the position of the brake plate in the burner tube. This is used to set the correct pressure drop across the combustion assembly, thereby obtaining good combustion without pulsation.
-
Page 18: Burner Servicing
5. Burner servicing 5.1 Servicing Servicing must be carried out after 3,000 operating hours, but at least once yearly. Only authorised personnel may perform service. Before any type of servicing is carried out, shut of the power at the main switch and turn off the oil. -
Page 19: Replacing The Oil Pump
5.3 Replacing the oil pump Switch off mains power and disconnect the Europlug from the burner. Undo the oil hoses from the pump. Remove the burner from the boiler by loosening the screw (A) Loosen the housing screw (B) and remove the front cover (C). This will make it easier to install the pump. -
Page 20: Replacing The Fan Motor And Fan Wheel
5.4 Replacing the fan motor and fan wheel Switch off mains power and disconnect the Europlug from the burner. Remove the burner from the boiler by loosening the screw (A). Loosen the housing screw (B) and remove the front cover (C). This will make it easier to fit the motor and fan wheel. -
Page 21: Servicing The Air Intake And Intake Cone
5.5 Servicing the air intake and intake cone Switch off mains power and disconnect the Europlug from the burner. Remove the burner from the boiler by loosening the screw (A). Air intake Loosen the housing screw (B) and remove the front cover (C). Oil pipe Loosen the motor and oil pipes. -
Page 22: Replacing Individual Electrical Package Components
5.7 Replacing individual electrical package components Switch off mains power and disconnect the Europlug from the burner. Remove the burner from the boiler by loosening the screw (A). Remove the burner control and loosen the two bottom screws in the relay socket. -
Page 23: Danfoss Bfp 11 And Bfp 21
5.8 Danfoss BFP 11 and BFP 21 5.8.1 Technical data Viscosity range: 1,3–12,0 mm Pressure range: 7–15 bar Oil temperature: –10 to +70°C 5.8.2 Components Pressure regulation Manometer connection G 1/8” Filter Solenoid valve Nozzle connection G 1/8” Vacuum manometer connection G 1/8” Horseshoe washer/Return plug Suction line G 1/4”... - Page 24 5.8.5 Function BFP 11 and BFP 21 When the pump is started oil is drawn from the suction connection (S) through the filter (H) to the gear wheel pump’s suction side (C). From there the oil is conveyed to the pressure side of the gear wheel pump, where the oil is pressurized.
- Page 25 5.8.6 LE-S System Note! The *LE-S pump has an integrated check-valve function at the solenoid valve, allowing the oil pressure to expand backwards during standstill. The desired function of avoiding the formation of drops on the nozzle can only be achieved by using both the LE-S pump and the LE valve built into the FPHB- LE preheater.
- Page 26 5.8.8 Suction pipe tables BFP11 and BFP21 5.8.8.1 Overhead Tank One-pipe system Height m Line diameters ø 4 mm ø 5 mm 100 100 ø 6 mm 100 100 100 100 100 Two-pipe system Height m Line diameters ø 6 mm ø...
-
Page 27: Oil Burner Control
6. Oil burner control 6.1 Wiring diagram Mains connection and fuses in accordance with local regulations. 165 105 31 Bentone... -
Page 28: List Of Components
6.2 List of components A1 Oil burner control P1 Time meter (optional) A2 Twin thermostat R1 Flame detector F1 Fuse, max. 10A S3 Main switch H1 Alarm lamp T1 Ignition transformer H2 Signal lamp (optional) Y1 Solenoid valve M1 Burner motor Mains connection and fuse in 6.2.1 Function LMO14/24 accordance with local regulations... -
Page 29: Colour Codes Lmo14/24
6.3 Colour codes LMO14/24 When the burner starts, three signal lights in the reset switch indicate the normal sequence, as well as provide indication if something abnormal is happening in accordance with the following table: Preheater in operation Solid yellow Ignition switched on Flashing yellow Normal operation... -
Page 30: Fault Location
7. Fault Location Burner will not start Symptom Causes Remedies Motor starts Unstable flame Burner pre-ventilates Excess air Adjust the damper Low oil pressure Check the oil pressure Flame formed Check the nozzle in relation to the combustion apparatus dimensions and the Burner trips Incorrect combustion apparatus settings ignition electrode position... -
Page 31: Delayed Ignition
7.3 Delayed ignition Remedies Indications Causes Correct boiler draught Burner pulsates at Excessively strong draught start with hot flue gases Adjust the burner Excessive pressure drop across the brake plate Check preheater function Preheater temperature too low Adjust the preheater's set operating temperature New oil type Ensure that the new oil's physical parame-... - Page 32 171 905 28...
-
Page 33: Log Of Flue Gas Analysis
8. Log of flue gas analysis Owner Adresss Tel. no: Installation Tel. no: Boiler Type Make Power Bentone Burner Type Model Serial no. Fuel Step 1 Step 2 Step 3 Draught in fireplace Fan Press mbar Filter smoke number Flue gas temp. °C Setting brake disc Setting Air damper Pump pressure... -
Page 34: Oil Burners Maintenance Instructions
9. Oil burners maintenance instructions General information If the burner starts but does not ignite Keep the boiler room clean. Ensure that the boiler Make an attempt to start the burner. room has permanent fresh air intake. Switch off before Never make close repeated start attempts. - Page 36 Enertech AB. P.O Box 309, SE-341 26 Ljungby. www.bentone.se, www.bentone.com...
