1. Solar collector – Weights and Dimensions:
Qty. of solar
Item No. tubes
SFB104715 10pcs
SFB154715 15pcs
SFB204715 20pcs
SFB304715 30pcs
SFB105818 10pcs
SFB155818 15pcs
SFB205818 20pcs
SFB305818 30pcs

2. Transportation and storage

The Navitron Solar Collector is packaged in boxes designed to minimize the risk of
damage during transit. Depending on the number of tubes, the collector may be packaged
in three or four boxes, one containing the header, frame and various small components,
and the others containing the evacuated glass tubes. The boxes should be regarded as
fragile and handled accordingly. During storage, handling, and transport, the boxes should
remain horizontal. Under no circumstances should the boxes be propped up against a wall
or stored vertically.
Avoid impacts, do not handle the boxes roughly and avoid dropping the boxes and
dropping objects onto or against the boxes.

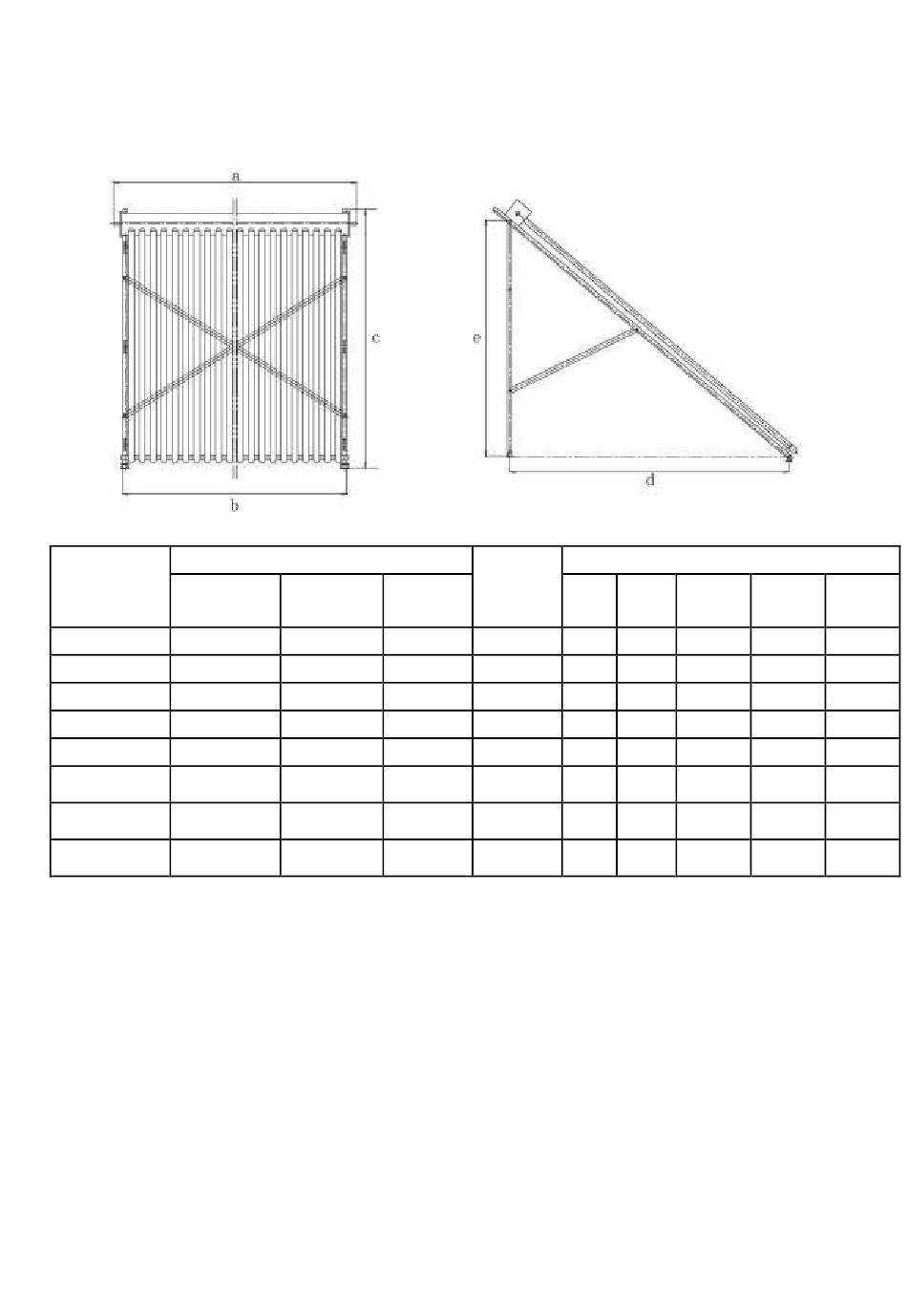

Specification
Diameter of Length of
solar tube solar tube
Ø 47mm 1.5M
Ø 47mm 1.5M
Ø 47mm 1.5M
Ø 47mm 1.5M
Ø 58mm 1.8M
Ø 58mm 1.8M
Ø 58mm 1.8M
Ø 58mm 1.8M
Weight a b
Kg
32 870 750
48 1220 1050
54 1570 1450
76 2270 2150
50 960 840
75 1360 1190
115 1760 1640
122 2560 2440
size(mm)
c d
1660 1174 1000
1660 1174 1000
1660 1174 1000
1660 1174 1000
1960 1398 1200
1960 1398 1200
1960 1398 1200
1960 1398 1200
