Page 1: Installation Instructions
HFC-2 Installation Instructions HFC-2 Installation Instructions - 0 -... -
Page 2: Table Of Contents
HFC-2 Installation Instructions Catalogue 1. Parameters Table……………………………………………..2 2.Marks….…………………………………………………….…..3 3.Structure and Dimensions……………………………...……..5 4.Installation………………………………………………….…….7 4.1 Slope Roof…………………………………………………... 4.2 Flat Roof……………………………………………………... 5.Connection and lightning-protection………….………...…..14 5.1 Connection and lightning-protection…………………...14 5.2 Collector coupling demonstration……………………..15 5.3 Pressure drop Curve………………………………..…… 15 6.Solar System Demonstrates…………………………………..16 6.1 Single Coil System………………………………………………………16 6.2 Double Coils System……………………………………………………17... -
Page 3: Parameters Table
HFC-2 Installation Instructions 1. Parameters Table Module(Manifold) φ22 Hydraulic connections 1981*1010*110 Gross size L x W x H 56Kg Weight empty Glycol max:50% Anti-Freeze fluid Glazing demountable? Mounting On flat roof with support with support On slope roof Tilted roof integration Operating data Min. - Page 4 HFC-2 Installation Instructions 2. Cautions 2.1 Collector’s glazing for toughened glass, please be careful handling, when installation, please pay special attention to don’t impact, Be careful to be scratched when glass broken, 2.2 Under no circumstances are the collector to be left exposed to the sun over a long period before the system installation was completed.
-
Page 5: Structure And Dimensions

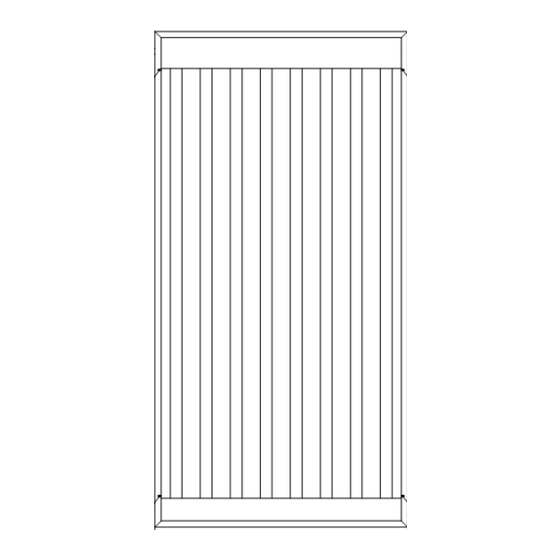

HFC-2 Installation Instructions Structure and Dimensions ②、Heat Pipe Vacuum Tube ③、CPC Reflector ①、Frame ④、Glass ⑤、Inlet/Outlet - 4 -... - Page 6 HFC-2 Installation Instructions ： Maintenance requirements Disassembly：Prize the A(decoration strip) firstly and then use a pistol to dig into to take out B(Aluminum rivetφ3.2×11 ) and finally move glass(together with glass frame) Assembly：Put on the glass((together with glass frame)，Note the sealing strip should be inside of troug.And then make rivet to fix it and finally tighten decoration strip.
-
Page 7: Installation
HFC-2 Installation Instructions 4. Installation Please select the roof which is faced the sun mostly, installation Angle should be identical with local latitude, Roof load shall withstand collector weight, Make sure no cover around installation area. Installation is divided into：... - Page 8 HFC-2 Installation Instructions 4.1.1.1 Please remove the tiles according to the “A”、 “B”、 “C”size, and fix the brace to the roof （Please choose the different fix ways according to the roof material---wooden screws anchors） 4.1.1.2 Please put the bottom of screw to...
- Page 9 HFC-2 Installation Instructions 4.1.2 horizontal bar installation： Please fix the horizontal bar to well-installed brace, make the difference of the top and down horizontal bar。See below photo. （It is better to add rubber spacer below horizontal bar to keep roof smoothly）...
- Page 10 HFC-2 Installation Instructions 4.2 Flat roof installation Please choose the correct installation angle depends on the local latitude Adjustable angle：28°、35°、42°、50° ①、Front leg ②、Stands higher ③、stands lower ④、horizontal bar(top) ⑤、 horizontal bar(down) ⑥、slope track ⑦、X Bar ⑨、stand foot ⑧、fixing - 9 -...
- Page 11 HFC-2 Installation Instructions 4.3 Color-coated steel tile installation 4.3.1 Fix the horizontal bar installation Please install the horizontal bar to the color-coated steel tile, fasten with the tapping screw,; see below photo: the screw distance between horizontal bar is 1000mm Above shows 2sets solar collector in series;...
-
Page 12: Connection And Lightning-Protection
HFC-2 Installation Instructions Note: Fix the feet tightly with bolts after the complete assembly. 5. Connection and Lightning-Protection Connection and Lightning-Protection: Max number of collector in series: 10units Mark：Please make sure the effective grounding to prevent lightning. - 11 -... -
Page 13: Collector Coupling Demonstration
HFC-2 Installation Instructions Collector Coupling Demonstration Collector array with 20m Pressure drop Curve of Collector ： Pressure drop in Pa 20℃ Flowrate(L/h) - 12 -... -
Page 14: Solar System Demonstrates
HFC-2 Installation Instructions 6. Solar System Demonstration 6.1 Single Coil System ① Expansion Vessel ② Storage Water Tank ③ Element ④ Coil Motor 3-way Pump One-way Pressure Air vent Security Setter Manual Valve valve valve gauge valve valve inline valve 6.2 Double Coils System... -
Page 15: Multi-Function Combined System
HFC-2 Installation Instructions valve will switch on to save the extra energy in the storage water tank. ① Expansion Vessel ② Storage Water Tank ③ Coil ④ Consumption tank ⑤Upper Coil in consumption tank ⑥ Element ⑦ Lower coil in...
