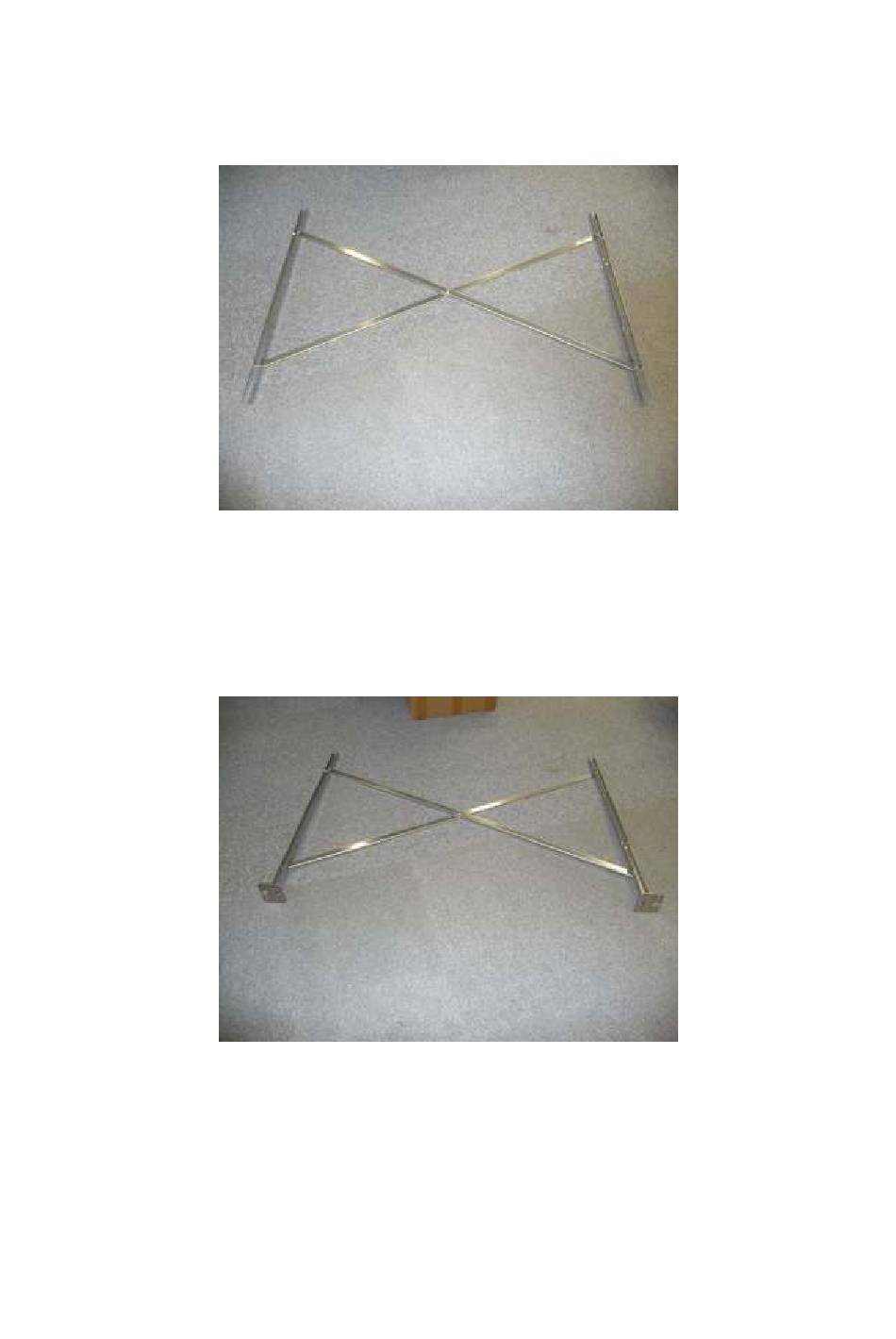

Attach the legs using the nuts, bolts and washers provided. Note - 3 legs and 4 back
cross supports for 30 tube panels.
Fit the support 2 feet the standing legs and 2 feet to the bottom side supports of the
solar panel frame. Note 6 feet are supplied for 30 tube panels.
