jablotron OS-310 FORTE Manual

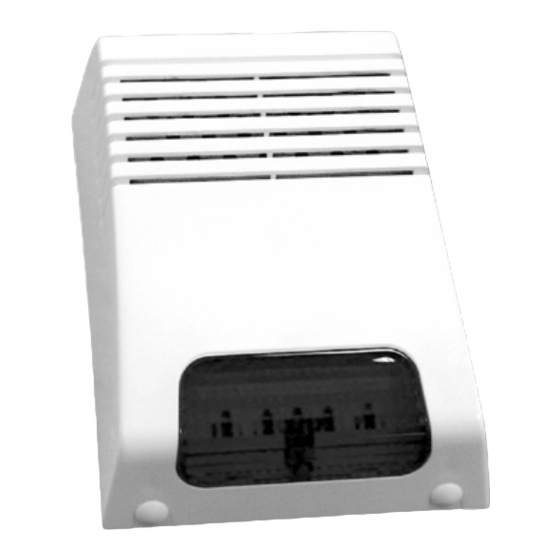

Outdoor siren OS-310 FORTE
The OS-310 FORTE is a high quality outdoor siren
combining loud acoustic siren output and a flashing light.
Under weather and UV resistant plastic cover there is an
inner steel case providing excellent mechanical protection.
The back plate of the siren is made of steel too. All metal parts
have got special surface treatment. The device is protected by
two magnetic tamper switches.
Specification
voltage
current
siren
Security Grade 3 (Medium to high risk) according to EN 50131-1
Environmental Class IV - Outdoor - General (-25 o to +60 o C) according to EN 50131-1
Complies with the essential requirements of: 89/336/EC EMC Directive - Protection concerning
electromagnetic compatibility when is used for its intended purpose. Original of the conformity
assessment can be found at the web page www.jablotron.cz, section Technical support.
Installation
Remove plastic cover by removing two screws (under plastic caps) with a screwdriver. Then
remove internal cover (one screw). Route all cabling into the siren through a hole in the rear
part. Hang the siren housing on the top screw and fix it using two other screws.
Connect the wires from control panel to the siren (see examples of connections on the back
side). Assemble the siren.
NOTICE :
Do not forget to switch the control panel to the service mode before wiring the siren !
For maximum siren output use cables with sufficient cross section of wires.
Terminals
TAMP - NC tamper switches output (connect
to 24 hour loop)
GND - ground terminal
+12V - power voltage terminal (+10 to 15V)
Operation
When voltage is applied to +12V input, the piezo siren sounds and flash light flashes.
Note: Although this product does not contain any harmful materials we
suggest you to return the product to the dealer or directly to the
producer after usage
Outdoor siren OS-310
10 -15 V DC
1 A
piezoelectric 118 dB
1/2
Pod Skalkou 33
466 01 Jablonec nad Nisou
Czech Republic
Tel.: +420 483 559 999
fax: +420 483 559 993
Internet: www.jablotron.cz
MDS51602
