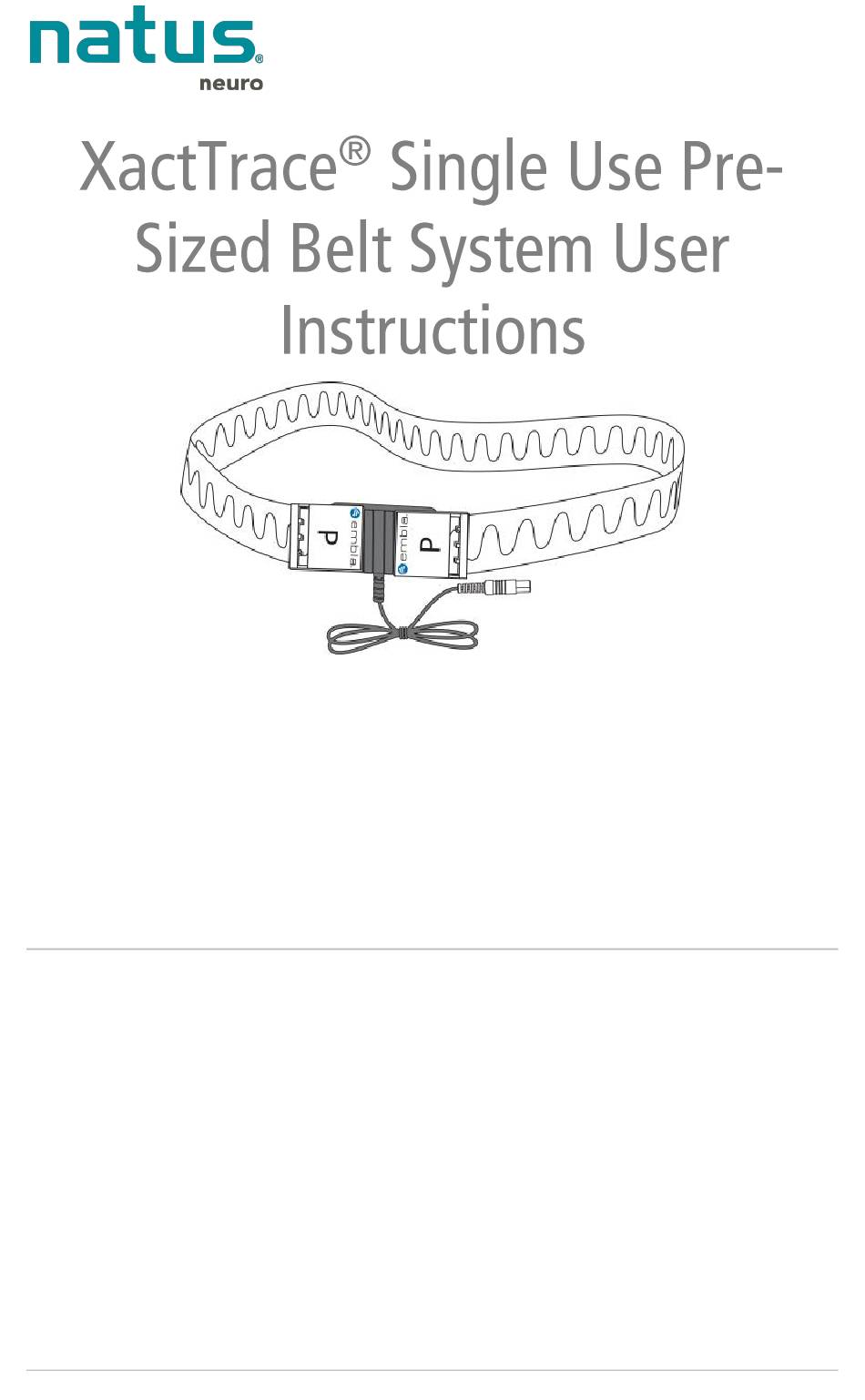

natus XactTrace User Instructions

natus XactTrace User Instructions

Single use belt system
Hide thumbs Also See for XactTrace:
Table of Contents

Advertisement

Quick Links

The Single Use Pre-Sized XactTrace belt system (XactTrace belts) is
used during sleep studies to acquire and transfer data related to thoracic
and abdominal respiratory effort to a compatible sleep recorder.
This document describes how to use the XactTrace belts and includes
information on intended use, warnings and cautions, system
components, adjusting and attaching the belts, storage and cleaning.
Intended Use
®
The XactTrace
measure respiratory effort to assist in the diagnosis of sleep disorders or
sleep related respiratory disorders. The respiratory effort signals
measured are processed to provide electrical signals suitable for
connection to the inputs of physiological recording equipment.
The intended environments are hospitals, institutions, sleep centers,
sleep clinics.
®
The XactTrace
diagnostics purposes only and is not intended to be used as an apnea
monitor.
Single Use Respiratory Effort Belt System is intended to
Single Use Respiratory Effort Belt System is intended for
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XactTrace and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for natus XactTrace

Summary of Contents for natus XactTrace

  • Page 1 This document describes how to use the XactTrace belts and includes information on intended use, warnings and cautions, system components, adjusting and attaching the belts, storage and cleaning.

  • Page 2: Warnings And Cautions

    XactTrace® Single Use Pre-Sized Belt System User Instructions Warnings and Cautions  XactTrace belts shall be worn over the patient's clothing The belts are single use.  Do not stretch the belts too tightly around the patient as this may cause discomfort ...

  • Page 3: System Components

    Choosing a Belt Size The XactTrace belts come in four sizes: Large, Medium, Small and Pediatric. The length of the belt size can be adjusted to ensure a good fit. The belts should fit the patient snugly without being uncomfortably tight.
  • Page 4 XactTrace® Single Use Pre-Sized Belt System User Instructions XactTrace Belt Sizes Full Size Reduced Size Inches Inches Large 127 - 190 50 - 75 102 - 165 40 - 65 Medium 96 - 140 38 - 55 76 - 119...
  • Page 5 XactTrace® Single Use Pre-Sized Belt System User Instructions 3. Connect the abdominal (yellow) and the thoracic (blue) XactTrace belt connectors to the appropriate color-coded inputs on the recording device. 4. External inductive interface cables are required only with non- Embla amplifiers, referred to as “universal” applications. When...

  • Page 6: User Settings

    High Frequency Filter – 15 to 35 Hz. Note: Shorter time constants or higher low frequency filter settings significantly attenuate waveforms. Technical Specifications See the table below for technical specifications for the XactTrace belts. Physical Properties Pre-Sized lengths – Based on sizing chart Belt...

  • Page 7: Hardware Compatibility

    XactTrace® Single Use Pre-Sized Belt System User Instructions Physical Properties Cable Length: 78 inches (200 cm) Extension Material: PVC jacketed; zip-style cord (Optional) Inductive Box: Interface Cable: PVC jacketed; zip-style cord Cable (Optional) Environmental Specifications Temperature Operation: 40°F to 120°F (+5°C to +50°C) Storage: 0°F to 120°F (-18°C to +50°C)

  • Page 8: Maintenance

    XactTrace® Single Use Pre-Sized Belt System User Instructions Storage Proper storage extends the life of the XactTrace belts. To prevent damage, do the following when storing the sensor and belts between studies.  The belts are single use and should not be used for more than one study.

  • Page 9: Warranty

    12 months from the date purchased. The sole liability of Natus and our distributors is limited to replacement or repair of the product at the option of Natus, with no charge for parts or labor if any part is proven to be defective in workmanship, performance, or materials during the warranty period.
  • Page 10 This copy of the User Manual shall be used only in accordance with the conditions of sale of Natus Medical Incorporated or its distributors. Natus Medical Incorporated makes no representations or warranties of any kind whatsoever with respect to this document.
