Gunlocke SILEAEH Installation Instructions Manual page 71

2

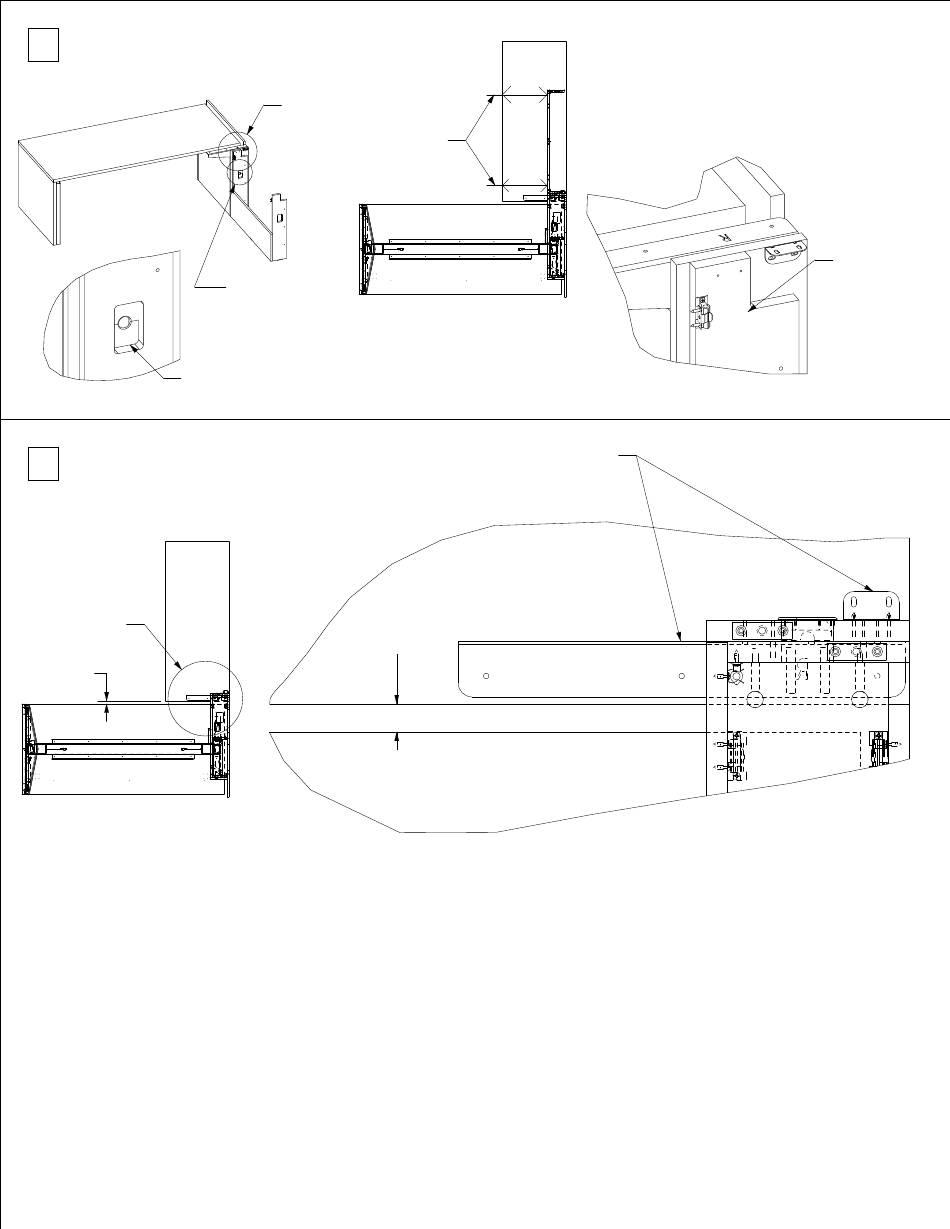

NOTE: SHOWN WITHOUT PED, WORKSURFACE,
AND TOP OF WALL ACCESS
PANEL FOR REFERENCE
ALIGN GROMMET ROUTS, INSERT
GROMMET IF DESIRED
3
NOTE: SHOWN WITH OUT PED
OR A WALL ACCESS PANEL
SEE DETAIL Z
1.000
* BOTTOM VIEW *
NOTE: AFTER UNITS HAVE BEEN SECURED, RUN THE POWER CORD FROM THE CONTROL THROUGH THE EXTENSION
END OF THE HEIGHT ADJUSTABLE UNIT. RUNNING THE CORD THROUGH THE TOP GROMMET, IT CAN BE
RAN TO THE WALL OR THROUGH THE WALL ACCESS PANEL GROMMET ROUTES IF NEEDED.
SEE DETAIL Y
MAKE SURE
MEASUREMENTS
ARE EQUAL
SEE DETAIL X
NOTE: SHOWN WITH OUT PED
DETAIL X
SCALE 0.150
1.000
X
X
DETAIL Y
SCALE 0.175
ATTACH THE BRACKETS
INTO THE WORKSURFACE
USING THE 5/8" PANHEADS
* BOTTOM VIEW *
NOTE: ONCE WALL ACCESS PANEL IS LEVEL
AND PLUM. SCREW THE ENDS INTO
WORK SURFACE USING THE TWO INSIDE
2" BRACKETS. SCREW THE TWO ENDS
INTO BOTH SIDES USING THE 1-1/4"
PAN HEADS.
SCREW INTO
WORK SURFACE
SCREW
THROUGH
INTO THE
OTHER UNITS
DETAIL Z
SCALE 0.250
PAGE 12 OF 15
