Floating Shelves - Gunlocke SILEAEH Installation Instructions Manual

GENERAL NOTES
1. ALWAYS PROTECT THE FLOATING SHELF HARDWARE AND SHELF DURING INSTALLTION.
2. THE MANUFACTURER ASSUMES NO RESPONSIBILITY FOR THE METHOD AND FASTENERS USED TO ATTACH
THE FLOATING SHELF SUPPORTS. IT IS THE RESPONSIBILITY OF THE INSTALLER / END USER
TO DETERMINE THE APPROPRIATE METHOD OF ATTACHMENT BASED ON THE TYPE OF WALL MATERIAL
AND/OR STUDS AVAILABLE.
FLOATING SHELF HARDWARE
1 ONCE SUPPORTS ARE ATTACHED TO THE WALL, CHECK TO MAKE SURE THEY ARE VERTICALLY ALIGNED
2 ONCE ALIGNED, INSERT THE SHELF PARTIALLY THEN ADJUST HORIZONTALLY IF NEEDED
3 TO ADJUST THE INCLINATION, USE A WRENCH AND TURN CLOCKWISE ON
THE PIN TO ADJUST THE ANGLE OF THE SHELF
4 ONCE ALL ADJUSTMENTS ARE COMPLETED, SCREW THE LOCKING BOLT IN
AND PUSH THE SHELF FULLY AGAINST THE WALL
**VERY IMPORTANT TO MAKE SURE THE LOCKING BOLT IS FACING DOWN DURING INSTALLATION, ANOTHER CHECK
IS TO MAKE SURE THE WRITING ON THE BRACKET IS FACING UPWARDS**
ASSEMBLY INSTRUCTION
FLOATING SHELF

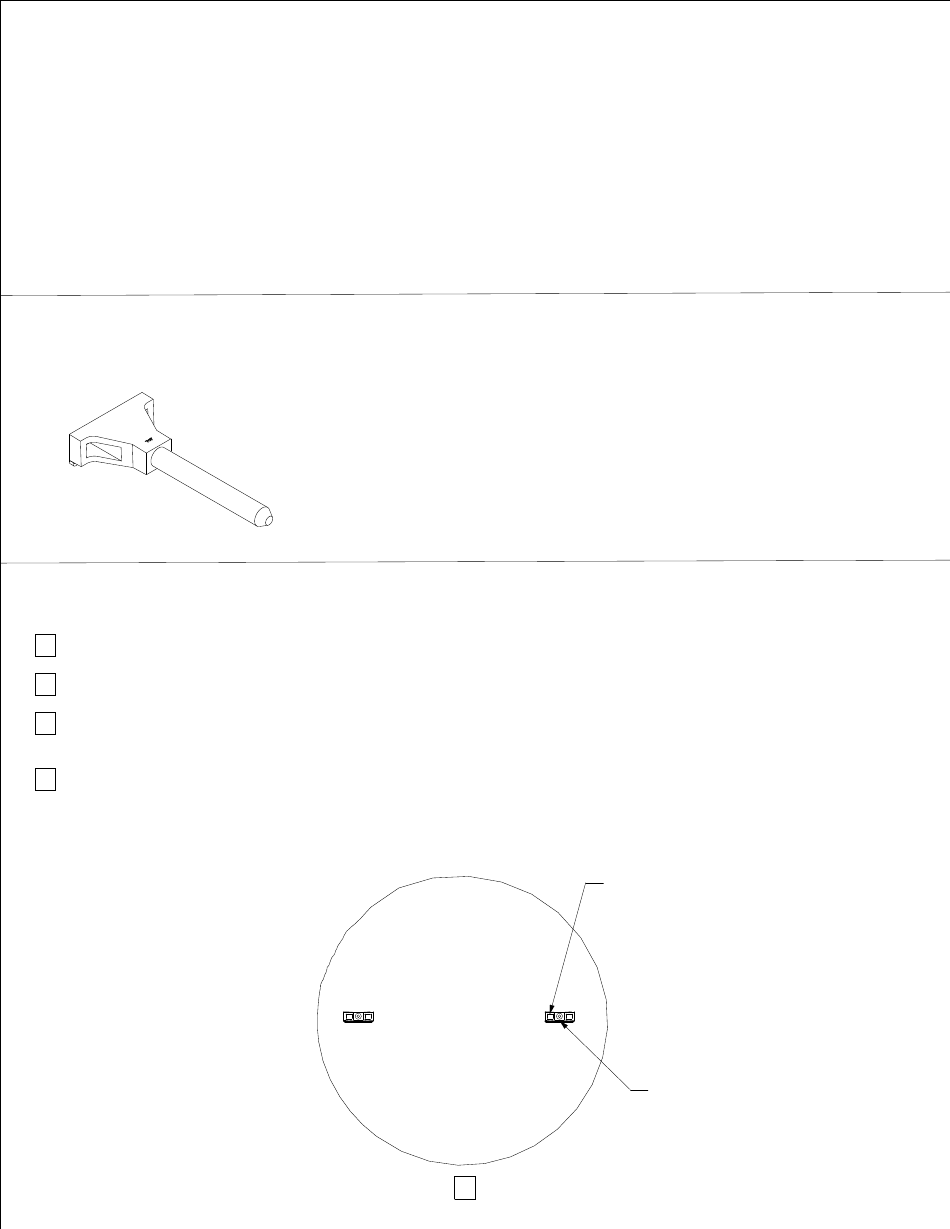

FLOATING SHELF SUPPORT
FLOATING SHELF SETUP
1
ALIGN SUPPORTS
TO EACH OTHER
LOCKING BOLT FACING DOWNWARDS
S2013-0007-00
REV A
DATE: 03-JUL-2018
PAGE 1 OF 2
