Adjustable Shelves - Gunlocke SILEAEH Installation Instructions Manual

GENERAL NOTES
1. ALWAYS PROTECT THE UNIT DURING INSTALLATION.
2. INSTALLATION PROCESS FOR THE ADJUSTABLE SHELF IS THE SAME
FOR LAM, WOOD AND PAINT.
3. SHELVES WILL BE INSTALLED IN THE UNIT.

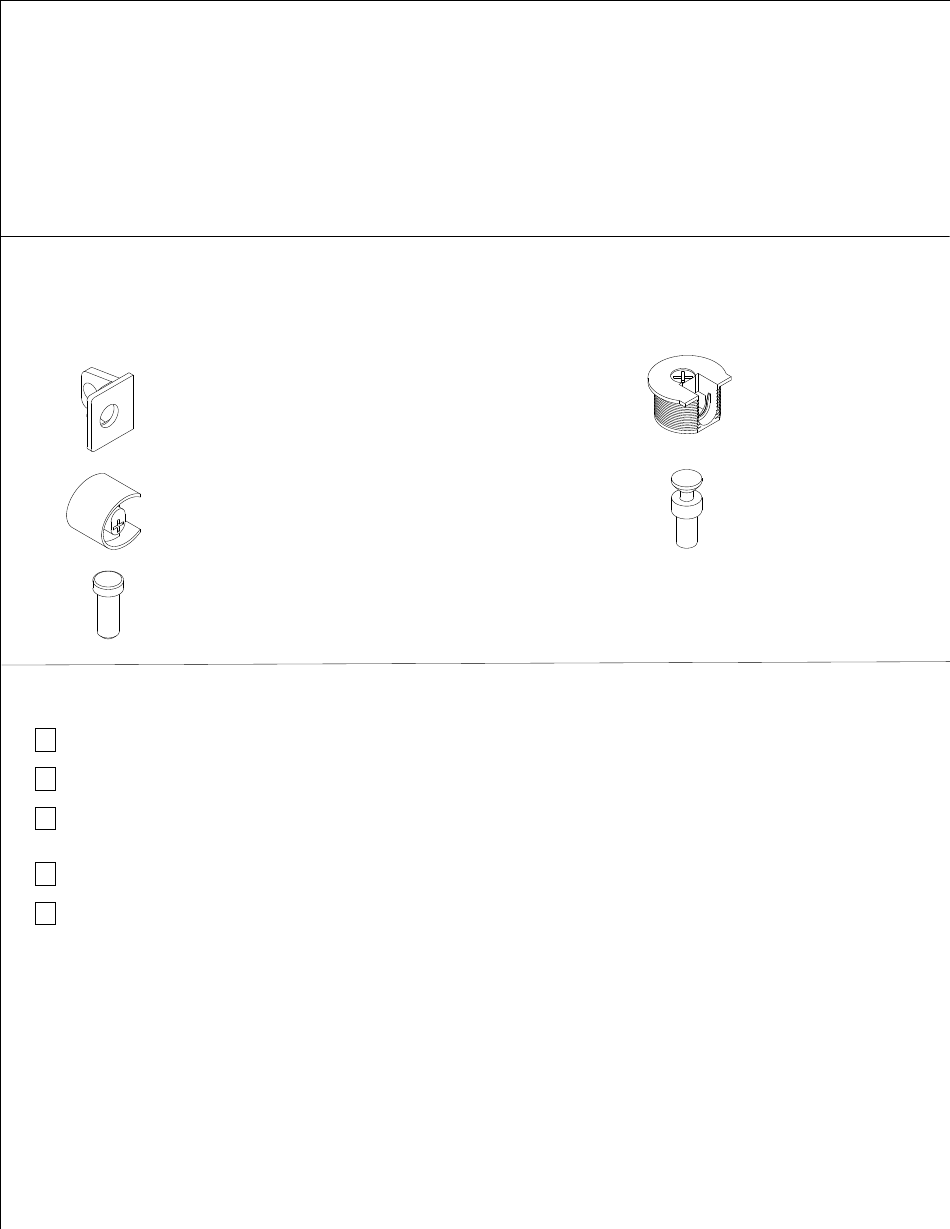

ADJUSTABLE SHELVING HARDWARE
WOOD/PAINT
1 INSERT THE SHELF PIN THROUGH THE SHELF CLIP HOLE
2 INSERT THE PIN INTO THE DESIRED HOLE IN THE END PANEL
3 ONCE ALL PINS AND SHELF CLIPS ARE IN THE DESIRED LOCATION
BRING THE SHELF INSIDE THE UNIT ABOVE ALL FOUR PINS
4 BRING SHELF DOWN ONTO THE PINS AND CLIP INTO PLACE
5 USE A SCREW DRIVER TO TIGHTEN THE INSERT INTO PLACE
**LAMINATE WORKS IN THE SAME FASHION JUST DIFFERENT HARDWARE**
**BE CAREFUL WHEN MOVING SHELVES AS TO NOT PULL OUT THE PINS TOO HARD AND DAMAGE THE PANELS**
**THE UNIT WILL HAVE THE ADJUSTABLE SHELVES ALREADY INSTALLED**
ASSEMBLY INSTRUCTION
ADJUSTABLE SHELVING
SHELF CLIP
INSERT PLASTIC SHELF
SHELF PIN
ADJUSTABLE SHELVING SETUP
19013-0018-00
REV A
DATED: 13-JUL-2018
LAMINATE
RAFIX CAM
REMOVABLE RAFIX PIN
PAGE 1 OF 2
