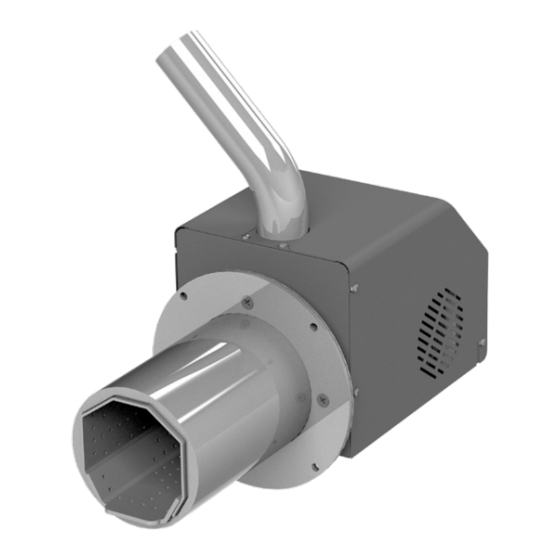

- Page 1 PELLET BURNER Pell ECO series TECHNICAL PASSPORT INSTALLATION and OPERATION MANUAL Version p0.2 model: serial number:...
-
Page 2: Table Of Contents
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL TABLE OF CONTENTS EXPLANATION OF SYMBOLS AND SAFETY INSTRUCTIONS ......3 1.1. Explanation of symbols ................. 3 1.2. Requirements to burner installation room ........... 3 1.2.1. Instructions to burner installer ..............3 1.2.2. Instructions to installation user ..............4 1.2.3. -
Page 3: Explanation Of Symbols
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL 1. EXPLANATION OF SYMBOLS AND regulations must be observed: SAFETY INSTRUCTIONS • local construction regulations installation, air supply and exhaust 1.1. Explanation of symbols gas extraction as well as chimney connection. Important CAUTION! • regulations and norms concerning the recommendation warning fitting of the heating installation with... -
Page 4: Instructions To Installation User
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL • Do not install the burner in sleeping It is mandatory to assure a premises. backup power generator of • Do not connect the burner to any other corresponding rated power! air-intake systems . (see 11.3) •... -
Page 5: Minimum Clearances For Installation And Combustibility Of Construction
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL - This manual should be kept throughout 1.2.3. Minimum clearances for the lifetime of the burner. installation and combustibility of construction materials CAUTION! Hot surface! The applicable minimum clearances in Risk of burns if you touch the your country may differ from the ones running system. -
Page 6: Materials
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL Table 1. Combustibility of construction Longitudinally, under the housing, there materials are air jacket, fuel ignition heater, fan and control unit. On the upper part of the Stone, bricks, ceramic Class burner there is a feeder chute to which tiles, baked clay, solutions, А... -
Page 7: Fuel
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL The main control unit, located in the • Power interruption. In case of power burner, manages the entire heating interruption, all parameter settings are process. stored in the memory of the controller. Controler functions: Upon the subsequent restart of the burner, the controller resumes the 1) fully automated ignition and pellet execution of the program from the... - Page 8 TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL efficiency is easier to adjust since the When purchasing pellets, ask fuel quantity in the combustion chamber for conformity declaration and certificate issued by an remains constant and predictable. accredited laboratory and Fuel efficiency. High combustion make sure the fuel meets the...
-
Page 9: Delivery Of The Burner
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL We recommend to use pellet with size of - Dimensions of the packaging of the 6 - 8mm. Density 600 - 750kg/m heating auger: 260х120х1700 mm value 4.7 - 5.5 kWh/kg. Ash content – less 5. - Page 10 TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL 5) Service booklet and Warranty card Mounting, installation and setup of burner should be carried out by If any of the above items are missing, authorized technician. Installer contact your supplier. shall advise the user of the installation minimum clearances 6. STORAGE OF PELLET BURNER to combustible materials and liquids.
- Page 11 TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL mains power supply Improper cable connections may Such connection must be damage the regulator! performed by a technician / service shop authorized for such It is mandatory to assure a operations. backup power generator of corresponding rated power! (see Caution! ELECTRIC SHOCK 11.3) HAZARD! - Before opening the unit: switch The device may be damaged if off the voltage and secure the struck by a lightning. Make sure...
- Page 12 TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL Diagram 7. Wiring diagram of connection of external devices / sensors to the burner Fuel Feeder blue brown blue brown blue brown blue brown blue brown blue brown blue brown Power Supply 220 V The burner must be connected to a Create tight...
-
Page 13: Trouble-Shooting
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL 7.3. Trouble - shooting Table 4. Fault Cause Solution 1.1 Change fuel type 1.1 Low quality fuel 1. Feeder chute is fiiled 1.2 Clean the burner grate 1.2 Clogged burner grate often 1.3 Low chimney draft 1.3 Increase the chimney draft 2. -
Page 14: Ignition
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL to check up and clean the burner and its 8. BURNER OPERATING components. 8.1. Ignition. It is mandatory to clean up the After the start up of the burner from combustion chamber of burner and the control panel, the main pellet auger movable grate. -
Page 15: Controller View. Explanation Of Buttons And Indicators
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL Type of Procedure Duty of: maintenance Cleaning of movable grate (B). Unclogging the holes Daily in the movable grate and combustion chamber (if User clogged ones). Dismantling of combustion chamber housing (A), movable grate (B) and positioning plate (C). Cleaning of combustion chamber (A), movable grate (B) and Seasonally Installer... - Page 16 TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL to change the value of a parameter in Flame 1 symbol means Low output the menu and to move to the next menu mode of burner. In this mode the page After entering the correct value burner operates minimum...
- Page 17 TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL supply for few seconds and then switch Symbol “T” on it again, boiler goes back to normal indicates, that operation (error notification is deleted). room termostat has been activated. Notify the authorized installer/ In “CH only” mode when there is a signal service performed immediately inspection of the...
-
Page 18: User Menu
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL 9.2. User`s menu the pump will stop. It will restart once 9.2.1. Initial (start-up screen) "Standby" the water temperature inside the DHW For access to user settings menu press tank drops by 5°C. In this way the water and hold functional key F for 3-4 seconds. - Page 19 TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL - Temperature in the boiler (23°C), time, pump). In this mode, the boiler can and by pressing the Enter button you be managed via a room thermostat can browse the quick menu (bottom left) or be temperature-controlled by the where the following read-only data is temperature inside the connected displayed:...
-
Page 20: Warranty Terms
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL 10. WARRANTY TERMS The warranty terms are described in the Service booklet included in the supply. 11. TECHNICAL FEATURES OF PELLET BURNER Pell ECO 11.1. Elemets of pellet burner Pell ECO Diagram 9. Elemets of pellet burner Pell ECO 1. Pellet burner Pell ECO 6. -
Page 21: Spare Parts
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL 11.2. Spare parts for Pell ECO pellet burner Diagram 10. Spare parts for pellet burner Pell ECO Table 5 Pell 35 Pell 55 Pell 35 Pell 55 № Part Number № Part Number 82081300000021 х 89080000000032 х х 82801300000045 х 89081200009740 х... -
Page 22: Technical Parameters
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL 11.3. Technical parameters Table 6 Specifications Pell 35 ECO Pell 55 ECO Nominal heat output Min./ Max. heat output 5÷35 15÷55 ~ 400 Average power Firing-Up mode consumption Operate mode ~ 60÷70 Electric power supply V/Hz ~230 AC/50 Hz Fuel wood pellets, Ø... -
Page 23: Recycling
TECHNICAL PASSPORT. INSTALLATION and OPERATION MANUAL 12. RECYCLING AND WASTE DISPOSAL Submit all packaging material for recycling separately from other recyclable waste according to the local regulations and containing substances hazardous to requirements. health and environment. Both metal and At the end of life cycle of each product its non-metal parts are sold out to licensed components are due to be disposed of in organizations for recyclable metal or... - Page 24 12 Madara Blvd., 13 Chelopeshko Shose Str, 9700 Shumen, Bulgaria 1839 Sofia, Bulgaria t: +359 54 874 555 t: +359 2 903 97 80 f: +359 54 874 556 f: +359 54 874 556 e-mail: ftrade@sunsystem.bg e-mail: sales@sunsystem.bg www.sunsystem.bg...
