3

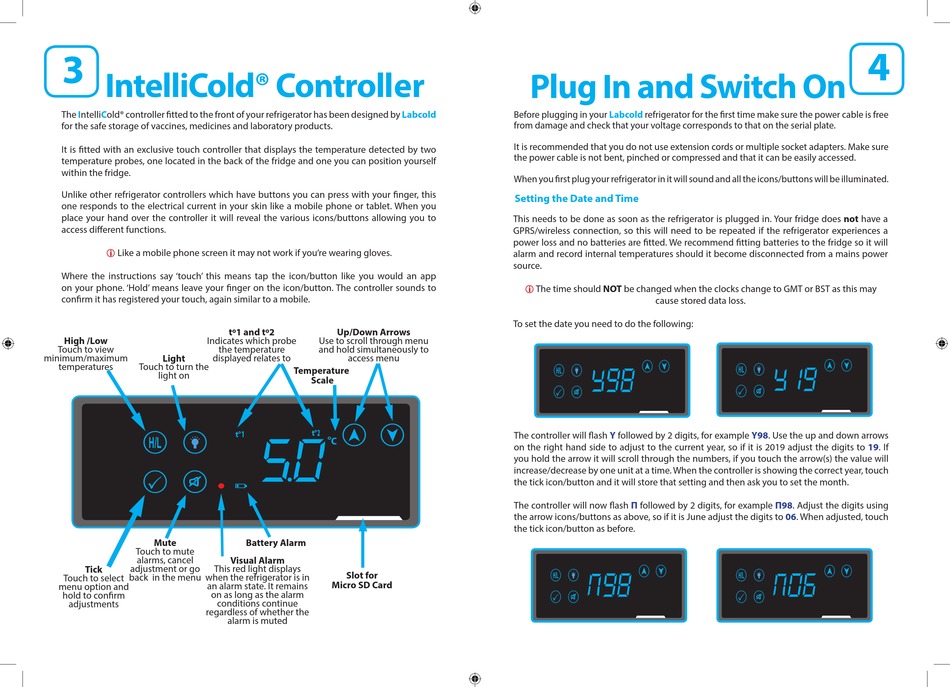

IntelliCold® Controller
The IntelliCold® controller fitted to the front of your refrigerator has been designed by
for the safe storage of vaccines, medicines and laboratory products.
It is fitted with an exclusive touch controller that displays the temperature detected by two
temperature probes, one located in the back of the fridge and one you can position yourself
within the fridge.
Unlike other refrigerator controllers which have buttons you can press with your finger, this
one responds to the electrical current in your skin like a mobile phone or tablet. When you
place your hand over the controller it will reveal the various icons/buttons allowing you to
access different functions.
Like a mobile phone screen it may not work if you're wearing gloves.
Where the instructions say 'touch' this means tap the icon/button like you would an app
on your phone. 'Hold' means leave your finger on the icon/button. The controller sounds to
confirm it has registered your touch, again similar to a mobile.
High /Low
Indicates which probe
Touch to view
the temperature
minimum/maximum
Light
displayed relates to
temperatures
Touch to turn the
light on
H/L
P
Mute
Touch to mute
alarms, cancel
Tick
adjustment or go
This red light displays
back in the menu
when the refrigerator is in
Touch to select
an alarm state. It remains
menu option and
hold to confirm
on as long as the alarm
conditions continue
adjustments
regardless of whether the
Labcold
to1 and to2
Up/Down Arrows
Use to scroll through menu
and hold simultaneously to
access menu
Temperature
Scale
t °
2
° t
1
°
C
Battery Alarm
Visual Alarm
Slot for
Micro SD Card
alarm is muted

Plug In and Switch On

Before plugging in your
Labcold
refrigerator for the first time make sure the power cable is free
from damage and check that your voltage corresponds to that on the serial plate.
It is recommended that you do not use extension cords or multiple socket adapters. Make sure
the power cable is not bent, pinched or compressed and that it can be easily accessed.
When you first plug your refrigerator in it will sound and all the icons/buttons will be illuminated.
Setting the Date and Time
This needs to be done as soon as the refrigerator is plugged in. Your fridge does not have a
GPRS/wireless connection, so this will need to be repeated if the refrigerator experiences a
power loss and no batteries are fitted. We recommend fitting batteries to the fridge so it will
alarm and record internal temperatures should it become disconnected from a mains power
source.
The time should NOT be changed when the clocks change to GMT or BST as this may
cause stored data loss.
To set the date you need to do the following:
H/L
P
The controller will flash
Y
followed by 2 digits, for example Y98. Use the up and down arrows
on the right hand side to adjust to the current year, so if it is 2019 adjust the digits to 19. If
you hold the arrow it will scroll through the numbers, if you touch the arrow(s) the value will
increase/decrease by one unit at a time. When the controller is showing the correct year, touch
the tick icon/button and it will store that setting and then ask you to set the month.
The controller will now flash
П
followed by 2 digits, for example П98. Adjust the digits using
the arrow icons/buttons as above, so if it is June adjust the digits to 06. When adjusted, touch
the tick icon/button as before.
H/L
P
4
H/L
P
H/L
P
