Becker BLU-BKR Installation Manual

Bluetooth music streaming aux ready radios
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995

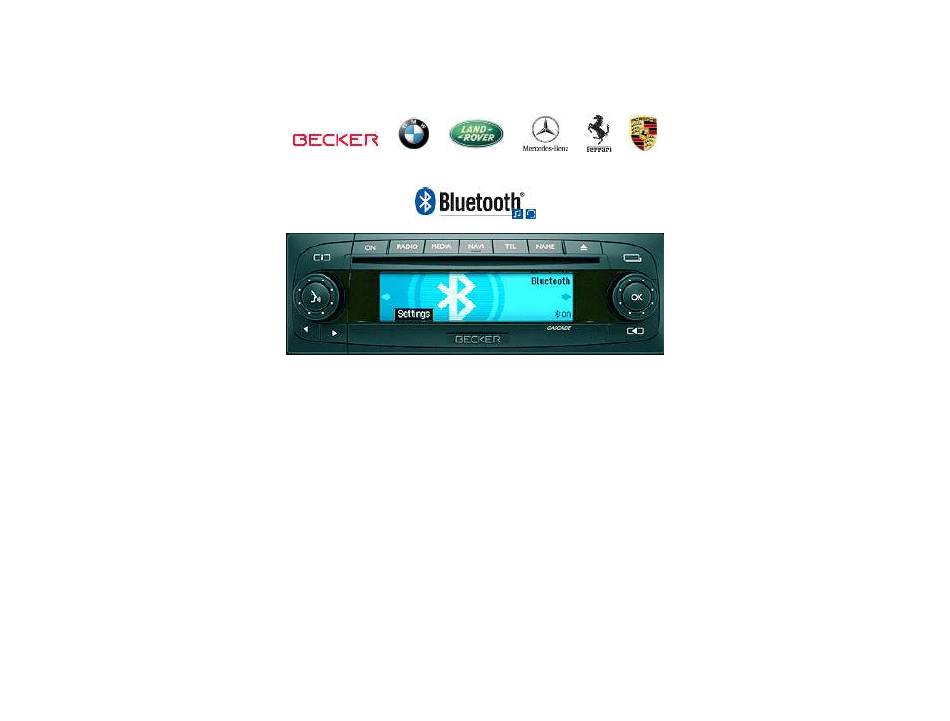

Picture for illustration purposes only
BLU-BKR
Bluetooth Music streaming Installation Guide for Becker AUX Ready Radios
Created: February 9, 2015
Revised: February 12, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLU-BKR and is the answer not in the manual?

Questions and answers

Related Manuals for Becker BLU-BKR

Summary of Contents for Becker BLU-BKR

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 Picture for illustration purposes only BLU-BKR Bluetooth Music streaming Installation Guide for Becker AUX Ready Radios Created: February 9, 2015 Revised: February 12, 2020...

  • Page 2: Installation

    Introduction: Thanks to the BLU-BKR Kit you can keep the radio and car you love while enjoying Bluetooth features only available on new cars. With Bluetooth Technology and your Smartphone’s built in Advanced Audio Distribution Profile (A2DP), you can stream music from compatible smartphone or Tablet directly into all Becker AUX Ready radios.
  • Page 3 Connect audio harness blue plug (See Fig. 3) to radio C-3 chamber. Green plug (if present) remains disconnected. Yellow plug (if present) must be reconnected. Fig. 5 Power supply harness Fig. 3 Additional installation steps for Ferrari Cascade radios (e.g. BE6112, BE6111 Audio harness etc.) with factory Hands-Free Kit and/or cluster display T-harness...

  • Page 4: Operation

    Radios with TP button: (i.e. CDR-220) Connect power harness male Quadlock to radio (See Fig. 6). Turn radio "ON" 2. Press and hold the "TP" button for about 8 seconds until Becker 1 is displayed. 3. Turn the Tuning Knob until AUX OFF is displayed.
  • Page 5 Press "Next" until the AUX input, Changer Res screen Press AUX to enable/disable. Turn radio ON. Press and hold the ☼ button for 8 seconds, until Becker 1 is displayed. Becker 4775 (Land Rover) & Other Traffic Pro Turn the Tuning Knob until AUX OFF is displayed.
  • Page 6 “ON” Press the CD button repeatedly until “AUX” is displayed The setting is store automatically Becker DTM /High speed (i.e. BE-7892, BE7910) Cascade Pro (i.e. BE7941) Press the Sound button for more than 2 seconds To activate the External Device mode Press multifunction button “AUX”...

  • Page 7: Bluetooth Pairing And Connection

    Bluetooth Pairing and Connection Optional Remote Control This process is required the first time you use the BLU-BKR. After initial pairing, the Optional remote control allows users to: BLU-BKR will automatically reconnect with the paired phone upon entering the Control music wirelessly vehicle.

  • Page 8: Frequent Asked Questions

    Frequent asked questions My vehicle has a CD Changer. Does the BLU-BKR work in vehicles with CD Changer? YES; but the CD Changer, Aux or iPod adapter must be disconnected and AUX mode enabled through radio menu. 2. Does the BLU-BKR work on all Becker Radios? Operation: Works on all Becker radios with “AUX”...
  • Page 9 Mate red/black wires from 8-pin plug to black/red wired on filter labelled IN. Fig. 8 7. Can the BLU-BKR be used to make/receive phone calls? The BLU-BKR support music streaming only. Purchase our A2DIY-BKR or BKR-HF for phone calls and stream music.
