Becker BLU-BKR23 Quick Start Installation Manual

Motorola bluetooth kits to cdr23/24 radio

Advertisement

Courtesy of:DiscountCarStereo.com
BLU-BKR23
Quick Start Installation Guide for Motorola Bluetooth
Kits to Becker CDR23/24 Radios
Created October 1, 2015
Revised: March 3, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLU-BKR23 and is the answer not in the manual?

Questions and answers

Summary of Contents for Becker BLU-BKR23

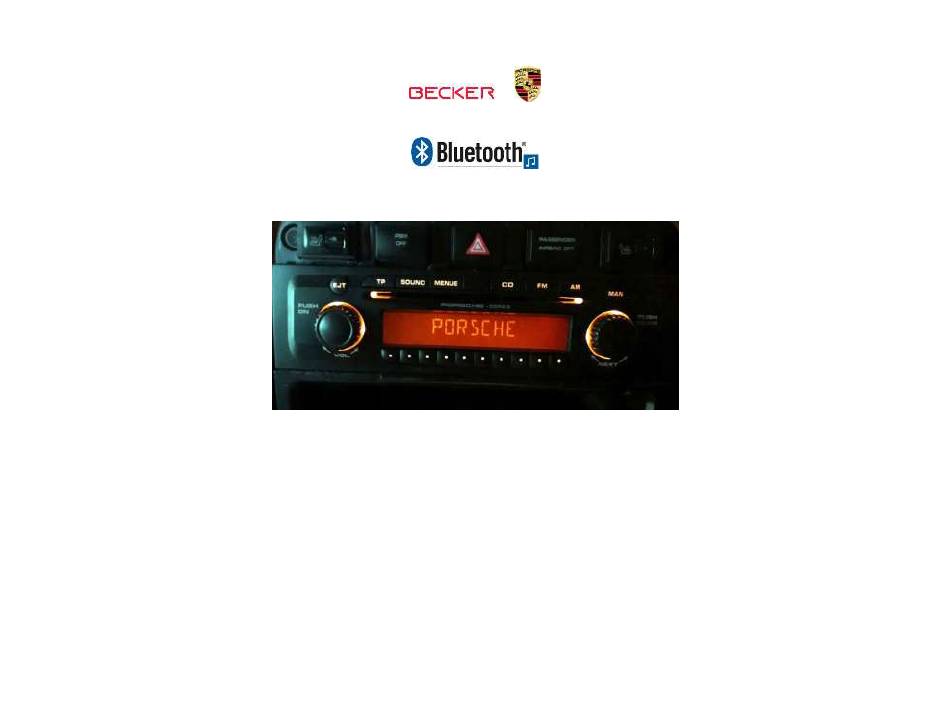

  • Page 1 Courtesy of:DiscountCarStereo.com BLU-BKR23 Quick Start Installation Guide for Motorola Bluetooth Kits to Becker CDR23/24 Radios Created October 1, 2015 Revised: March 3, 2019...
  • Page 2 Remove radio from the dashboard to gain access to the connectors. A pair of With radio removed disconnect the Green (C-2) from Radio (See Fig. 3 ) removal tools (See Fig. 1) is required to remove all Becker radios. Fig. 1 Radio Removal Keys Fig.
  • Page 3 Molex connector on Motorola harness (included in kit). If successful go ahead and place a test call. Radio display will change to Becker CDR23/24 Radios do not have accessory supply wire on radio harness and because of that you must connect the red wire (See Fig. 4) Re-install Radio and follow installation instruction for the Motorola kit to an accessory supply source in vehicle (e.g.
  • Page 4 Kit? The installation harness included with the aforementioned Bluetooth car kits can be used in most application but are not configured for plug-n-play to Becker radios and are also not optimized for vehicles equipped with factory amplifiers. The BT-BKR23M can be used in Becker radio applications with or without amplifiers.
