Moen 84660SRN Installation Manual

Moen 84660SRN Installation Manual

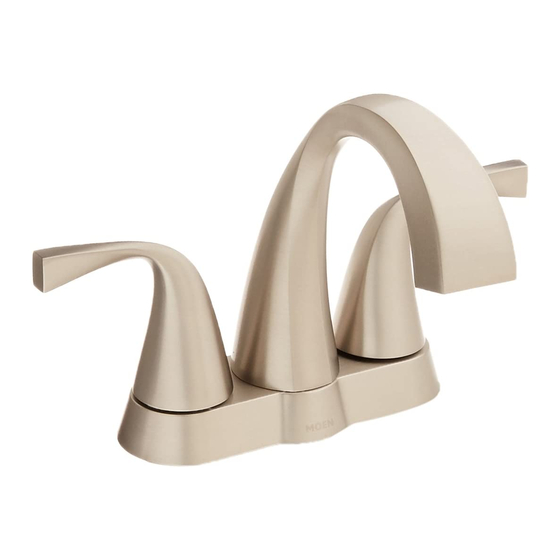

Two handle, 4-inch center set bathroom faucet

Advertisement

Quick Links

PLEASE CONTACT MOEN FIRST
For Installation Help, Missing or Replacement Parts
(USA)
1-800-BUY-MOEN (1-800-289-6636)
WWW.MOEN.COM
(Canada)
1-800-465-6130
WWW.MOEN.CA
POR FAVOR, CONTÁCTESE PRIMERO CON MOEN
Para obtener ayuda de instalación, piezas
faltantes o de recambio
011 52 (800) 718-4345
WWW.MOEN.COM.MX
VEUILLEZ D'ABORD CONTACTER MOEN
En cas de problèmes avec l'installation, ou pour obtenir toute
pièce manquante ou de rechange
1-800-465-6130
WWW.MOEN.CA
HELPFUL
HERRAMIENTAS
TOOLS
ÚTILES
For safety and ease of
Para que el cambio de
faucet replacement,
la llave sea fácil y
Moen recommends
seguro, Moen le
the use of these
recomienda usar estas
helpful tools.
útiles herramientas.
Sealant
Sellador
Mastic
3/8"
3/8" (9.52 mm)
3/8 po
Install using 3/8" or
Instale con líneas de
1/2" ips faucet supply
suministro IPS de 3/8"
lines only. DO NOT USE
(9.52 mm) o 1/2" (1.27
RIGID SUPPLY RISERS
cm) solamente. NO
(3/8" COPPER OR PEX)
UTILICE TUBOS DE EL-
WITH COUPLING NUTS.
EVACIÓN RÍGIDOS (3/8"
THE USE OF RIGID
(9.52 MM) DE COBRE
RISERS WILL RESULT IN
O PEX) CON TUERCAS
CONNECTION FAILURE
DE ACOPLE. EL USO DE
AND POTENTIAL LEAKS.
TUBOS DE ELEVACIÓN
RÍGIDOS CAUSARÁ
FALLAS DE CONEXIÓN Y
POSIBLES PÉRDIDAS.

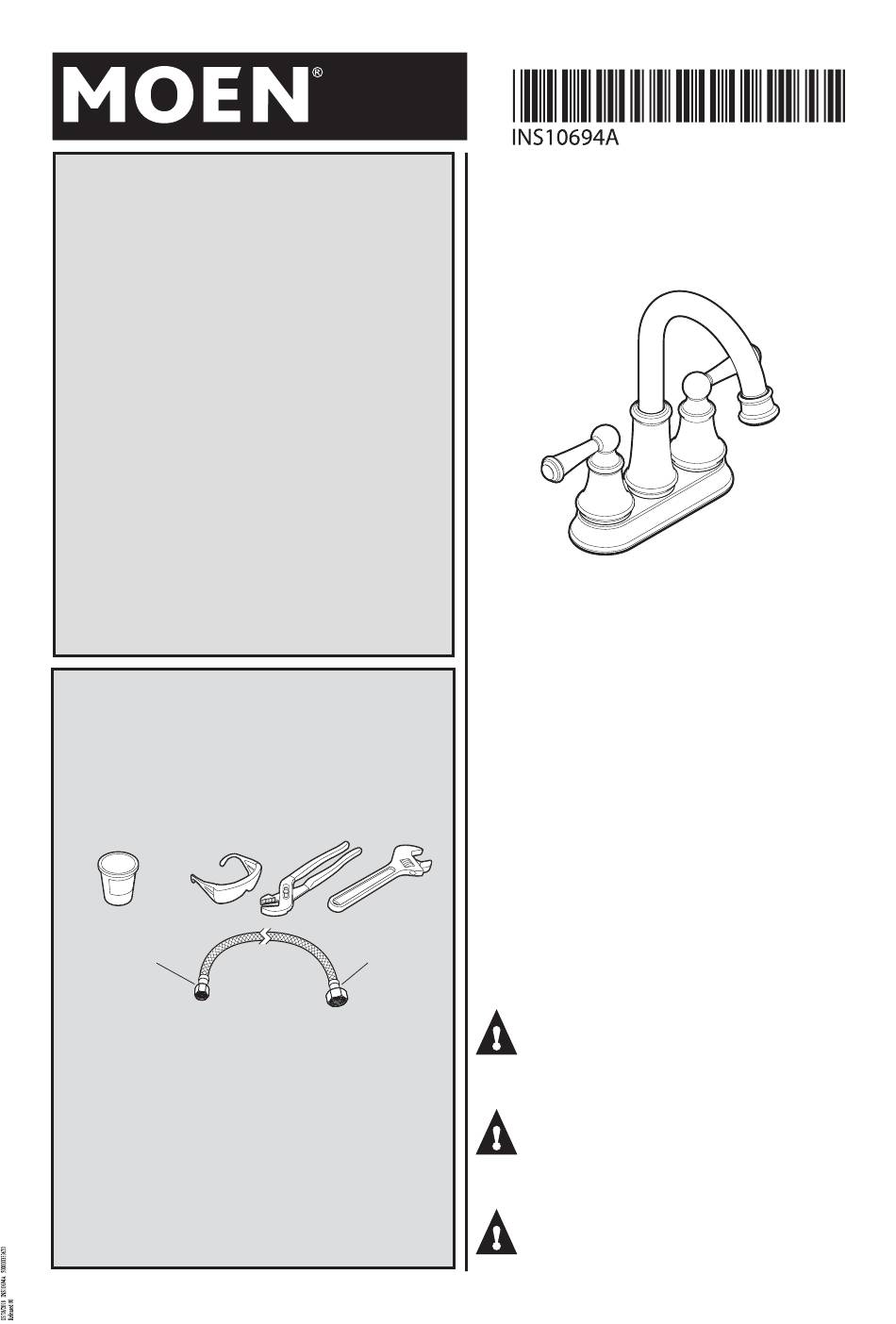

Installation Guide
Guía de Instalación
Guide d'installation
TWO HANDLE, 4-INCH CENTER
SET BATHROOM FAUCET
Style varies by model.
OUTILS UTILES
MEZCLADORA PARA LAVABO
Par mesure de
DE 2 MANERALES Y 4
sécurité et pour
faciliter l'installation,
PULGADAS DE SEPARACIÓN
Moen suggère l'util-
CENTRAL
isation des outils
suivants.
El estilo varía por el modelo.
ROBINET DE SALLE DE BAIN
À DEUX POIGNÉES ET
ENTRAXE DE 4 PO
1/2"
1/2" (1.27 cm)
Le style varie selon le modèle.
1/2 po
Installer en utilisant
des conduites d'ali-
mentation de robinet
sure and ensure that complete water shut-off has been accomplished.
IPS seulement de 3/8
ou de 1/2 po. NE PAS
UTILISER DES COLONNES
MONTANTES D'ALIMEN-
TATION RIGIDES (CUIVRE
OU PEX DE 3/8 PO) AVEC
LES ÉCROUS DE RAC-
asegúrese de que esté bien cerrada el agua.
CORD. L'UTILISATION DE
COLONNES MONTANTES
RIGIDES CAUSERA
LA DÉFAILLANCE DU
RACCORD ET DES FUITES
POTENTIELLES.
s'assurer que l'alimentation en eau a bien été coupée.
CAUTION — TIPS FOR REMOVAL OF OLD FAUCET:
Always turn water supply OFF before removing existing faucet or
disassembling the valve. Open faucet handle to relieve water pres-
PRECAUCIÓN — CONSEJOS PARA CAMBIAR LA LLAVE MEZCLADORA:
Siempre CIERRE la toma de agua antes de quitar la llave existente o
desmontar la válvula. Abra la llave para liberar la presión, y
ATTENTION — Suggestions pour enlever l'ancien robinet :
Toujours couper l'alimentation en eau avant d' e nlever ou de démont-
er le robinet. Ouvrir le robinet pour libérer la pression d' e au et pour
INS10694A -4/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the 84660SRN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moen 84660SRN

  • Page 1 Guide d’installation 1-800-BUY-MOEN (1-800-289-6636) WWW.MOEN.COM (Canada) 1-800-465-6130 WWW.MOEN.CA POR FAVOR, CONTÁCTESE PRIMERO CON MOEN Para obtener ayuda de instalación, piezas faltantes o de recambio 011 52 (800) 718-4345 WWW.MOEN.COM.MX VEUILLEZ D’ABORD CONTACTER MOEN En cas de problèmes avec l’installation, ou pour obtenir toute pièce manquante ou de rechange...
  • Page 2: Parts List

    Fini inoxydable Spot Resist™ et fini nickel brossé Spot Resist™: Moen recommande de nettoyer le fini Spot Resist avec du savon doux puis de rincer soigneusement à l’ e au tiède avant d’ e ssuyer avec un chiffon doux propre. Ne jamais utiliser de produits de nettoyage contenant des abrasifs (y compris éponges abrasives...
  • Page 3 After removal of old faucet, clean and dry the sink Attach the mounting nuts (B) to the hot and cold Clean drain opening in the bottom of sink. surface. Install faucet with gasket (A). threaded mounting shanks and tighten faucet to Limpie la abertura de desagüe en la parte inferior sink.
  • Page 4 INS10694A - 4/18 Caliente Chaud Cold Frio Froid Install using 3/8" or 1/2" IPS faucet supply lines 1. Attach other ends of supply lines to shut off Turn on water. Check for leaks. Installation is only. DO NOT USE RIGID SUPPLY RISERS (3/8" stops.
  • Page 5 2. Loosen aerator with Hex Wrench and remove. Para modelo 84660SRN 3. Turn on water to flush aerator for 15 seconds. Pour le modèle 84660SRN 4. Turn off water. 5. Re-install aerator and tighten with Hex Wrench (I). 1. Inserte la llave hexagonal (I) en el agujero del aireador.
  • Page 6 à l’adresse indiquée ci-dessous, pour expliquer le telephone number. estado a otro o de una provincia o nación a otra. Moen lo défaut, d’inclure une preuve d’achat, d’inscrire son nom, asesorará en el procedimiento a seguir para hacer válida son adresse ainsi que son indicatif régional et son numéro...
