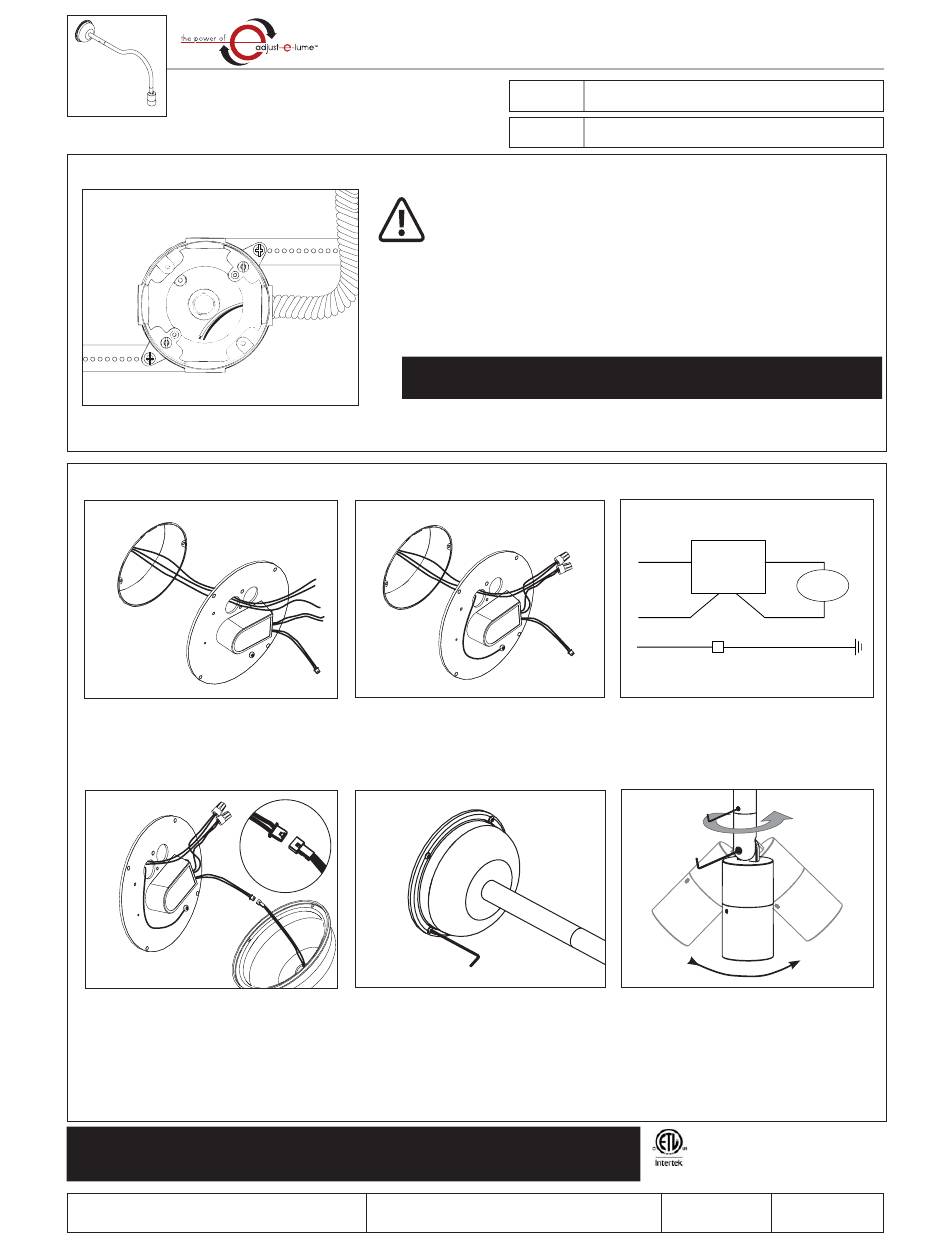

Sign Lighting Installation Instructions
Phase 1 - Rough In
Installation of Back box
1. Install conduit and junction box (by others) to
be used with this product.
Phase 2 - Finish Installation of Fixture with Power Canopy.
1. Remove one or two wire entrance knockouts on
wall plate. Pull primary branch circuit through
knockout(s). Attach wall plate to junction box
using appropriate hardware (By Others).
3. Connect fixture to transformer with provided
quick disconnect.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
SIGN STAR™ AND TWIN SIGN STAR™
TECHNOLOGY
Additional Info
• Please follow National and Local electrical codes for your area.
• Suitable for through wire
• Rated for 90° C.
Please refer to the low voltage design guide at www.bklighting.com/
2. Install junction box so that front face is flush
with finished wall or ceiling.
2. Ground primary branch circuit to wall plate
per NEC. Make two connections from remote
12V transformer to primary branch circuit
using proper wire connectors. (By Others).
See wiring diagram.
4. Mount canopy to wall plate using four (4)
#8-32 stainless steel button head screws with
5/64" allen wrench. Do not over tighten.
