B-K lighting SIGN STAR Series Installation Instructions Manual page 2

with

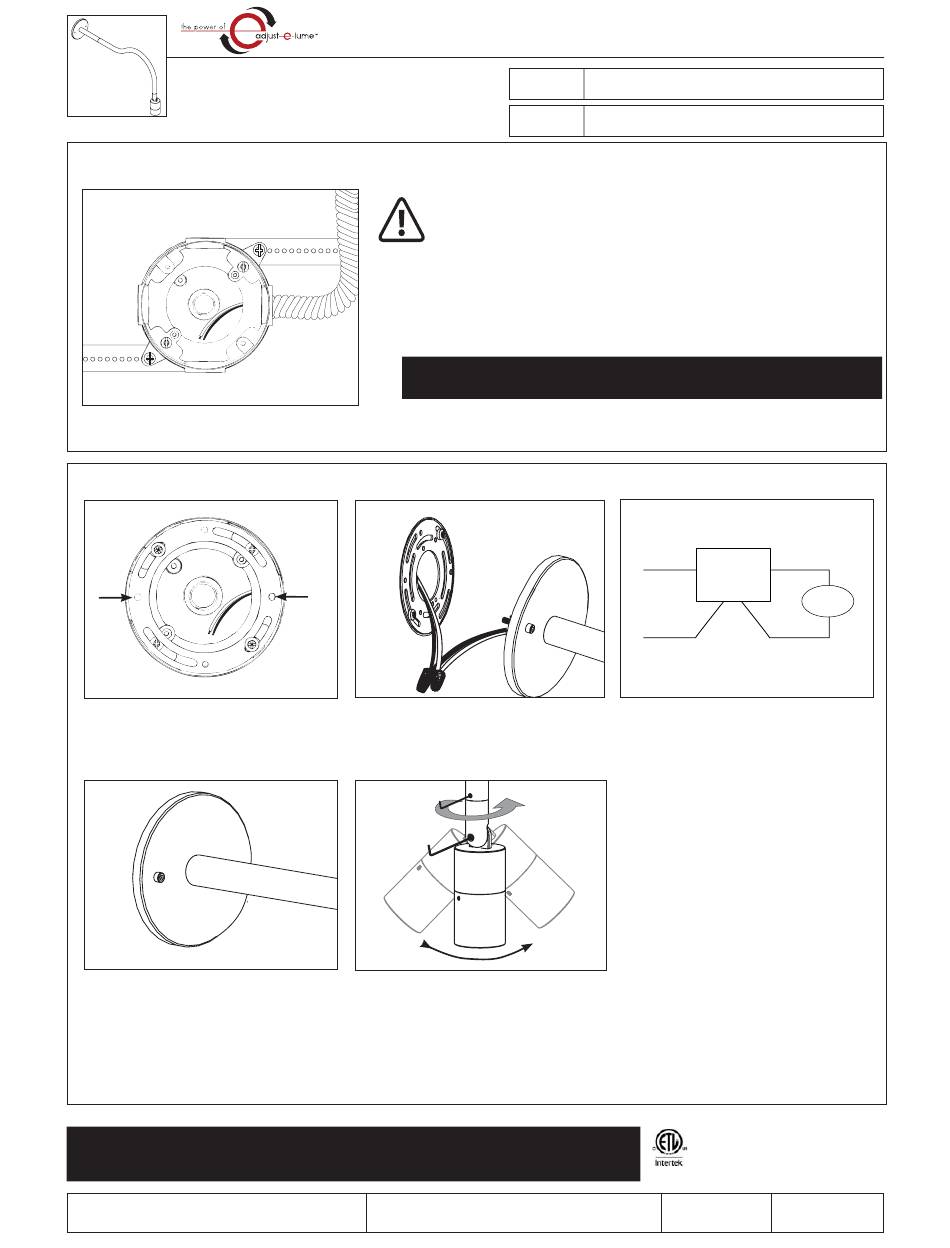

Sign Lighting Installation Instructions
Phase 1 - Rough In
Installation of Back box
1. Install Conduit and Junction Box (by others)
to be used with this product.
Phase 2 - Finish Installation of Fixture with Remote Transformer.
1. Install universal mounting ring (supplied with
fixture) to junction box using appropriate
hardware (By Others). Align canopy mounting
holes to final mounting position.
3. Mount fixture canopy using two (2) #10-24 hex
screws using 1/8" allen wrench. Do not over
tighten.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
SIGN STAR™ AND TWIN SIGN STAR™
TECHNOLOGY
Additional Info
• Please follow National and Local electrical codes for your area.
Please refer to the low voltage design guide at www.bklighting.com/
2. Install junction box so that front face is flush
with finished wall or ceiling.
2. Make two connections from remote 12V
transformer to LED source leads (18 gauge
wire) using proper wire connectors (By Others).
See wiring diagram.
4. Use 5/32" allen wrench to loosen #10-32
stainless steel black oxide socket head cap
screw at the knuckle. Aim fixture to desired
vertical location. Tighten to secure aiming
position.
5. Use 5/64" allen wrench to loosen stainless steel
set screw on the 360SL™ rotational system and
rotate to desired horizontal location. Tighten to
secure aiming position.
