Summary of Contents for Drija Bari 30
-
Page 2: Table Of Contents

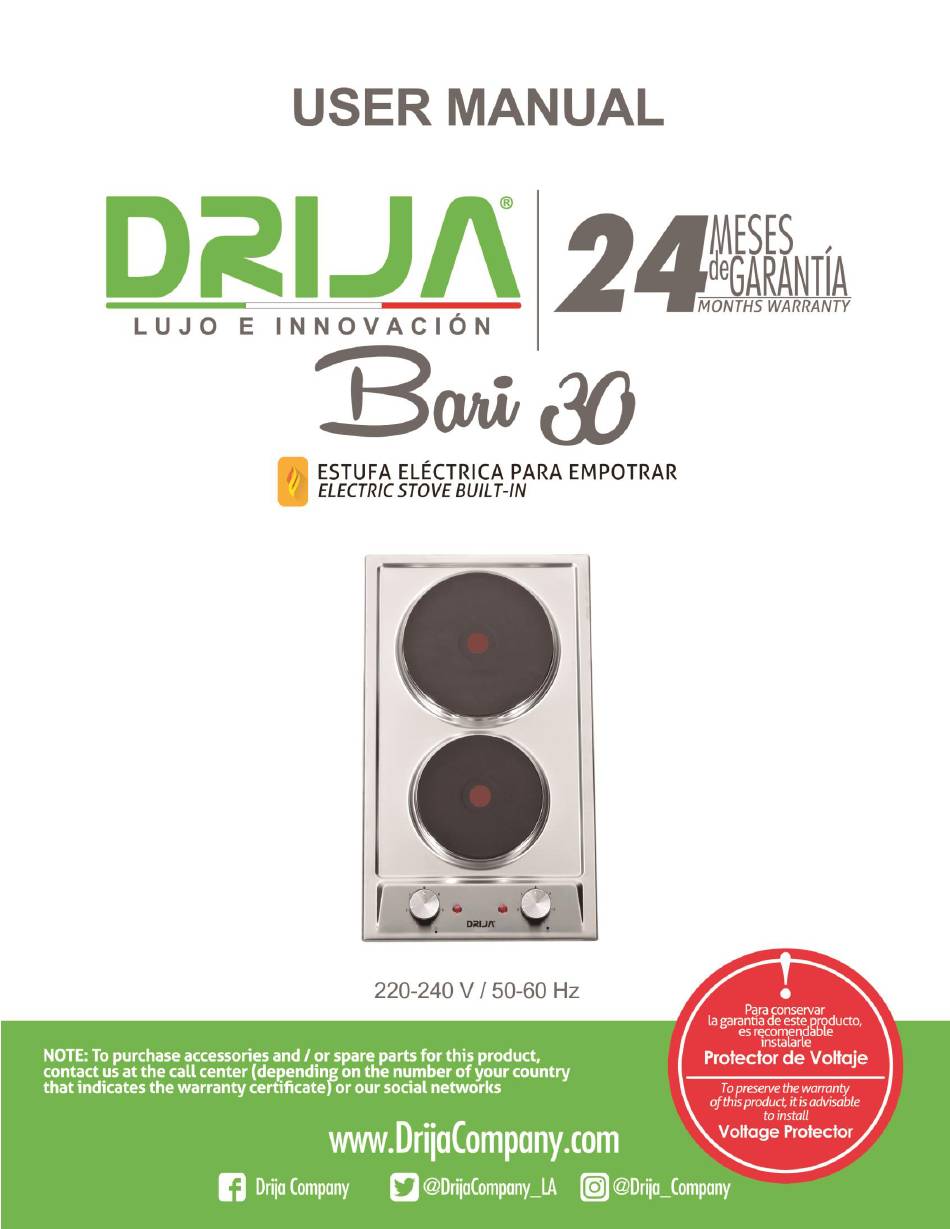

User Manual ELECTRIC STOVE BUILT-IN | BARI 30 1. INTRODUCTION......................... 2 2. SAFETY WARNINGS ......................2 3. DESCRIPTION OF PRODUCT ................... 4 4. OPERATION OF PRODUCT ....................5 5. USE OF THE ELECTRIC STOVE ..................6 6. CLEANING AND MAINTENANCE ..................7 7. -
Page 3: Introduction
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 1. INTRODUCTION Thank you for choosing our Built-In Electric Heater. To use this cap properly and to avoid any potential risk, read these instructions before using it. Keep these instructions in a place where they can be found easily. If you are not sure of any of the information contained in these instructions, please contact our customer service center. - Page 4 User Manual ELECTRIC STOVE BUILT-IN | BARI 30 • This artifact should be connected to a circuit which incorporates an isolating switch providing full disconnection from the mains power supply. • Failure to install the artifact correctly could invalidate any warranty or liability claims.
-
Page 5: Description Of Product
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 3. DESCRIPTION OF PRODUCT Product specifications 1. Max. 2000W zone 2. Max. 2000W zone 3. Max. 1500W zone 4. Control Pane 1 x 2.00 kW thermostatic plates (diameter 180 mm) ... -
Page 6: Operation Of Product
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 4. OPERATION OF PRODUCT BEFORE THE FIRST USE IMPORTANT: you must clean the surface of the countertop and the solid plates (see the section "Cleaning and maintenance") You must switch on one cooking zone at a time, for 5 minutes at the maximum setting. -
Page 7: Use Of The Electric Stove
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 When you have finished cooking, be sure to turn the control knob counter clock wise to the 0 position. 5. USE OF THE ELECTRIC STOVE The first few times the countertop is used, it can give off a pungent and scorching smell. This odor will disappear completely with repeated use. -
Page 8: Cleaning And Maintenance
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 IMPORTANT: The countertop surface is hard; However, it is not unbreakable and can be damaged. Especially if sharp or hard objects are allowed to fall on it with some force. DO NOT USE THE PLATE IF THE SURFACE IS BROKEN OR RIPPED. - Page 9 User Manual ELECTRIC STOVE BUILT-IN | BARI 30 What? How? Important! • When the power to the electric Everyday soiling on surface 1. Switch the power to the electric hob off. hob is switched off, there will be no ( fingerprints, marks, stains left by ‘hot surface ‘indication but the...
-
Page 10: Installation
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the hob. 7. INSTALLATION Positioning: The adjacent furniture must be able to withstand a minimum temperature increase of 85 °... - Page 11 User Manual ELECTRIC STOVE BUILT-IN | BARI 30 Installation of the device Drill a hole in the countertop that corresponds to the drawings shown above. IMPORTANT: you must have at least 25-75 mm below the space between the equipment and any surface below your Carefully turn the countertop over and place it on a padded carpet.
-
Page 12: Electrical Connection
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 Place the clamp (B) over the holes that match the size of the screws. There is a set of holes for screws in each corner of the countertop. Slightly tighten a screw (C) through the clamp (B) so that the clamp is attached to the countertop, but so that you can still adjust the position of the clamp. - Page 13 User Manual ELECTRIC STOVE BUILT-IN | BARI 30 Connecting the hob to the mains power supply Voltage of heating elements 220V – 240V 3X1.5 mm2 This artifact must be earthed For this connection a power lead of wire type H05RR-F should be used.
- Page 14 User Manual ELECTRIC STOVE BUILT-IN | BARI 30 2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts. 3. The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
