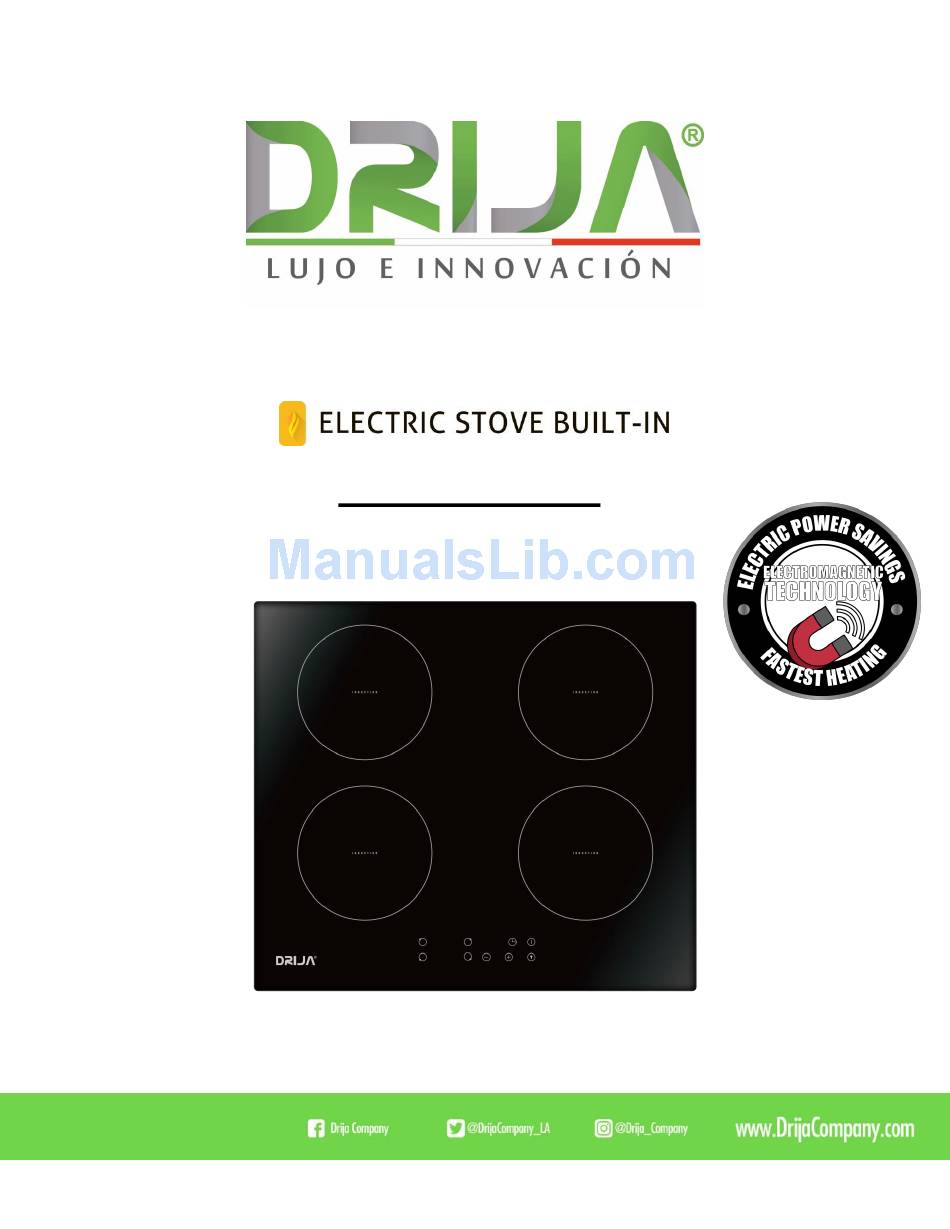

- Page 1 User Manual ALEMANIA I N D U C T I O N Voltage 220v-240v / 60Hz...
-
Page 2: Table Of Contents
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION Foreword ......................... 2 Operation and maintenance .................... 3 ProductIntroduction ......................6 Theory of Work ....................... 7 TechnicalSpecification ....................7 Operation of Product ....................... 8 How to use ........................9 Cooking Guide lines ...................... 14 Detection of Small Articles .................... -
Page 3: Foreword
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION 1. FOREWORD SAFETY WARNINGS Your safety is important to us. Please read this information before using your cook top. INSTALLATION ELECTRICAL SHOCK HAZARD Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. -
Page 4: Operation And Maintenance
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION 2. OPERATION AND MAINTENANCE ELECTRICAL SHOCK HAZARD Do not cook on a broken or cracked cook top. If the cook top surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician. - Page 5 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION Never leave the appliance unattended when in use. Boil over causes smoking and greasy spillovers that may ignite. Never use your appliance as a work or storage surface. Never leave any objects or utensils on the appliance.
- Page 6 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
-
Page 7: Productintroduction

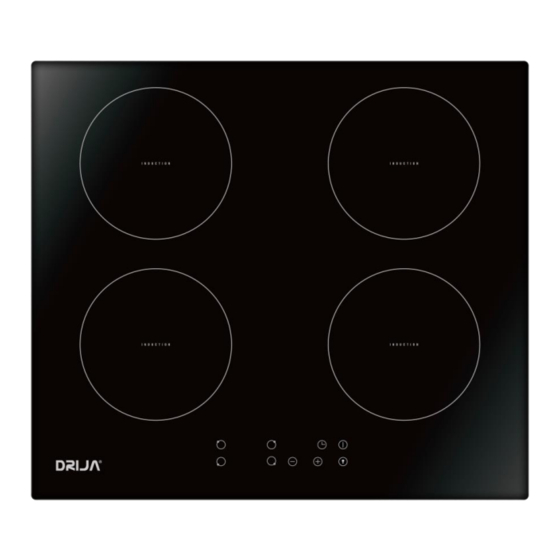

User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION Congratulations on the purchase of your new Ceramic Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. -
Page 8: Theory Of Work
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION 4. THEORY OF WORK Induction cooking is a safe, advanced, efficient and economical cooking technology. It works by the electromagnetic vibrations that generate heat directly in the pan, in place of indirectly through the heating of the surface of the glass. -
Page 9: Operation Of Product
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION 6. OPERATION OF PRODUCT TOUCHCONTROLS The controls respond to touch, so you don’t need to apply any pressure. Use the ball of your finger, not its tip. You will hear a beep each time a touch is registered. -
Page 10: How To Use
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. - Page 11 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION Touching the heating zone selection control ,and an indicator next to the key will flash Select a heat setting by touching the “-” or “+” control. • If you don’t choose a heat setting within 1 minute, the ceramic hob will automatically switch off.
- Page 12 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION Turn the whole cook top off by touching the ON/OFF control Beware of hot surfaces “H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature.
- Page 13 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION TIMER CONTROL You can use the timer in two different ways: a) You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
- Page 14 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION Setting the timer to turn one or more cooking zones off Set one zone Touching the heating zone selection control that you want to set the timer for. (e.g. zone 3#) Touch timer control, the minder indicator will start flashing and “10”...
-
Page 15: Cooking Guide Lines
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION DEFAULT WORKING TIMES Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various... - Page 16 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION 3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan. 4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it.
-
Page 17: Detection Of Small Articles
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION 9. DETECTION OF SMALL ARTICLES When an unsuitable size or non-magnetic pan (e.g. aluminum), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. -
Page 18: Care And Cleaning
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION 10. CARE AND CLEANING What? How? Important! • When the power to the cook top is Everyday soiling on 1. Switch the power to the cook switched off, there will be no ‘hot surface’... -
Page 19: Hints And Tips
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION 11. HINTS AND TIPS Problem Possible causes What to do The cook top cannot No power. Make sure ceramic Be turned on. connected to the power supply and that it is switched on. -
Page 20: Troubleshooting
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION detect the pan because it is zone. too small for the cooking zone or not properly centered on it. The induction hob or Technical fault. Please note down the error letters and... - Page 21 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION sensor .（2#） Wait for the temperature of IGBT High temperature of IGBT .（1#） return to normal. Touch “ON/OFF” button to restart unit. High temperature of IGBT.（2#） Check whether the fan runs smoothly;...
- Page 22 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION SPECIFIC FAILURE & SOLUTION Failure Problem Solution A Solution B The LED does not No power supplied. Check to see if plug is secured tightly in outlet come on when unit is...
- Page 23 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION board. Cooker Unit overheated. overheated; Wait for temperature to return to normal. Push “ON/OFF” button to restart unit. Heating zones of the The power board and Check the connection. same side (Such as the...
-
Page 24: Installation
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION 12. INSTALLATION SELECTION OF INSTALLATIONEQUIPMENT 1. Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole. - Page 25 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm. A(mm) B(mm) C(mm) 50 min. 20 min. Air intake Air exit 5mm WARNING: Ensuring Adequate Ventilation Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked.
-
Page 26: Before Locating The Fixing Brackets
User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION There are ventilation holes around outside of the hob. YOU MUST ensure these holes are not blocked by the worktop when you put the hob into position. Be aware that the glue that joins the plastic or wooden material to the furniture has to resist to temperature not below 150℃, to avoid the unstuck of the paneling. - Page 27 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION BEFORE LOCATING THE FIXING BRAKETS The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. ADJUSTING THE BRACKET POSITION Fix the hob on the work surface by screw 2 brackets on the bottom of hob (see picture) after installation.
- Page 28 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION CAUTIONS 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics 3.
- Page 29 User Manual STOVE BUILT-IN | ALEMANIA 60 INDUCTION •If the cable is damaged or to be replaced, the operation must be carried out the boy after-sale agent with dedicated tools to avoid any accidents. •If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
