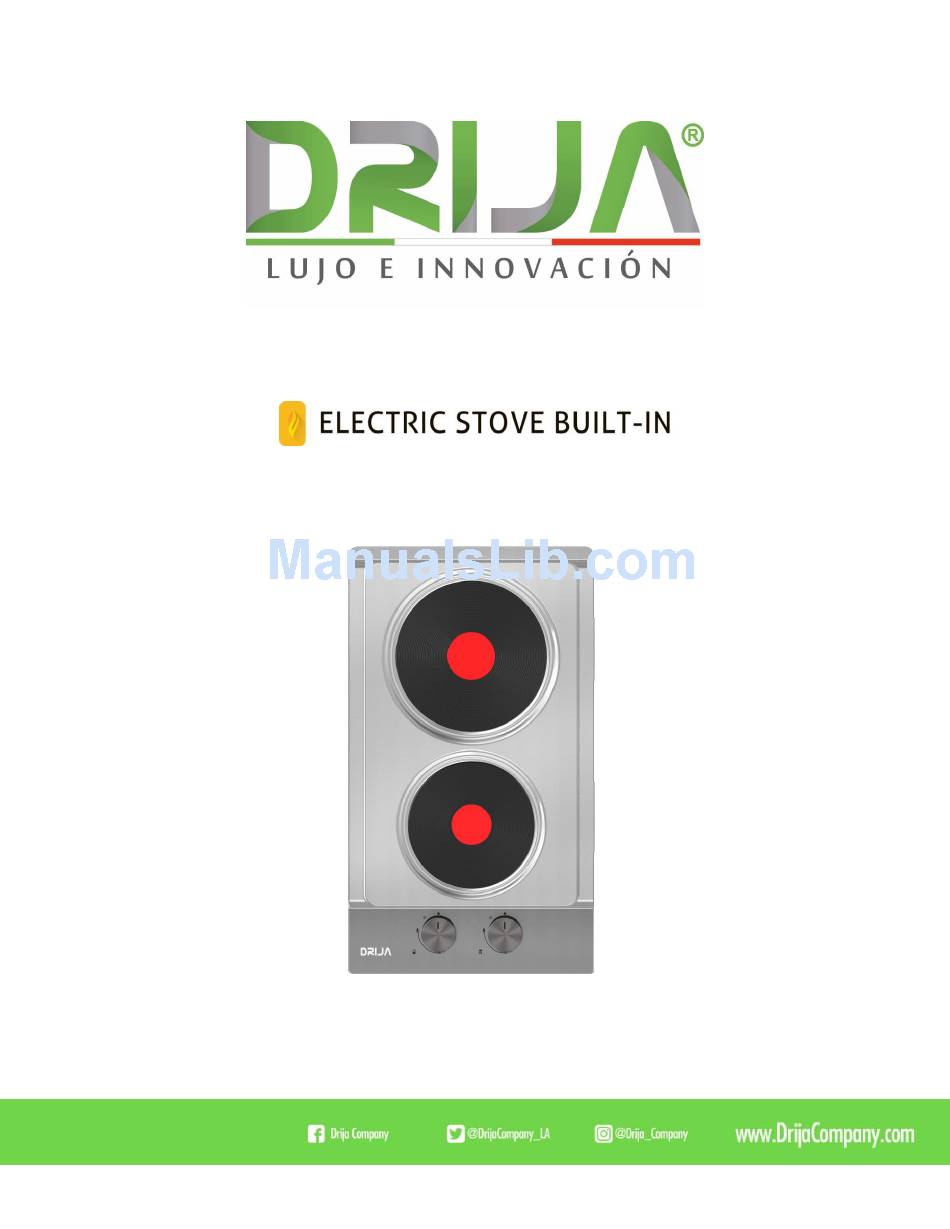

- Page 1 User Manual BARI 30 Voltage 220v-240v / 60 Hz...
-
Page 2: Table Of Contents
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 1. INTRODUCTION ................2 2. SAFETY WARNINGS ............... 2 3. OPERATION OF PRODUCT ............5 4. CLEANING AND MAINTENANCE ........... 6 5. INSTALLATION ................7 6. FASTENING THE FIXING BRACKETS ........... 9... -
Page 3: Introduction
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 1. INTRODUCTION Thank you for choosing our Built-In Electric Heater. To use this cap properly and to avoid any potential risk, read these instructions before using it. Keep these instructions in a place where they can be found easily. If you are not sure of any of the information contained in these instructions, please contact our customer service center. -
Page 4: Product Overview
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 • This artifact is to be properly installed and earthed only by a suitably qualified person. • This artifact should be connected to a circuit which incorporates an isolating switch providing full disconnection from the mains power supply. - Page 5 User Manual ELECTRIC STOVE BUILT-IN | BARI 30 1. Max. 2000W zone 2. Max. 2000W zone 3. Max. 1500W zone 4. Control Pane 1. Power Regulating Controls 2. Power Indicator Light...
-
Page 6: Operation Of Product
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 3. OPERATION OF PRODUCT CHOOSING THE RIGHT COOKWARE Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. -
Page 7: Cleaning And Maintenance
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 4. CLEANING AND MAINTENANCE The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the electric hob to find the settings that best suit you. -
Page 8: Installation
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 HINTS AND TIPS Problem Possible Causes What To Do The electric hob cannot be turned No power. Make sure the electric hob is connected tithe power supply and that it is switched on. - Page 9 User Manual ELECTRIC STOVE BUILT-IN | BARI 30 ENSURING ADEQUATE VENTILATION Make sure the electric hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unrespectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 70mm from the bottom of the hob.
-
Page 10: Fastening The Fixing Brackets
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 6. FASTENING THE FIXING BRACKETS The unit should be placed on a stable, smooth surface (use the packaging). 1. Turn the hob upside down and fasten the brackets to the appropriate holes. -
Page 11: Electrical Connection
User Manual ELECTRIC STOVE BUILT-IN | BARI 30 7. ELECTRICAL CONNECTION Fitting Guide lines The electric hob is manufacture to work with single-phase alternating current (220V- 240V/50Hz) The connection diagram is also on the cover of the connection box. All electrical work should be carried out by a suitably qualified and authorized electrician. - Page 12 User Manual ELECTRIC STOVE BUILT-IN | BARI 30 Wiring Instructions The earth wire colored Green / Yellow must be connected to the Earth terminal market The Live wire colored Brown must be connected to the live terminal market L. The neutral wire colored Blue must be connected to the live terminal market N.
