Summary of Contents for Drija TOSCANA 76
-
Page 2: Table Of Contents

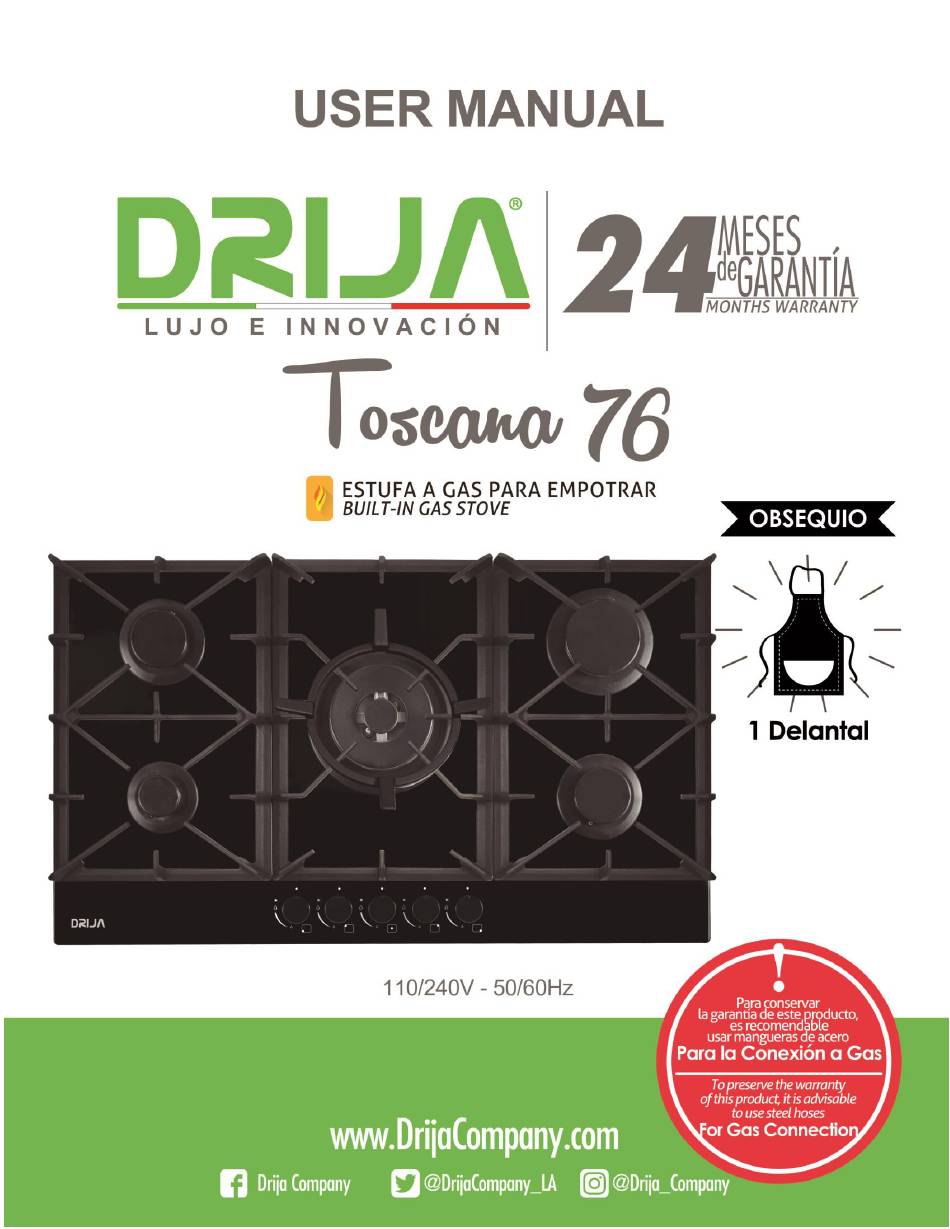

User Manual BUILT-IN GAS STOVE | TOSCANA 76 1. INTRODUCTION ......................2 2. SECURITY WARNING ....................3 3. HOW TO USE YOUR STOVE ..................4 4. HOW TO TAKE CARE OF YOUR GAS STOVE .............. 5 5. INSTALLATION ....................... 8... -
Page 3: Introduction
User Manual BUILT-IN GAS STOVE | TOSCANA 76 1. INTRODUCTION Thank you for choosing our gas cook top. To use this artifact correctly and prevent any potential risk, read these instructions before using Keep these instructions in a place where you can find easily. -
Page 4: Security Warning

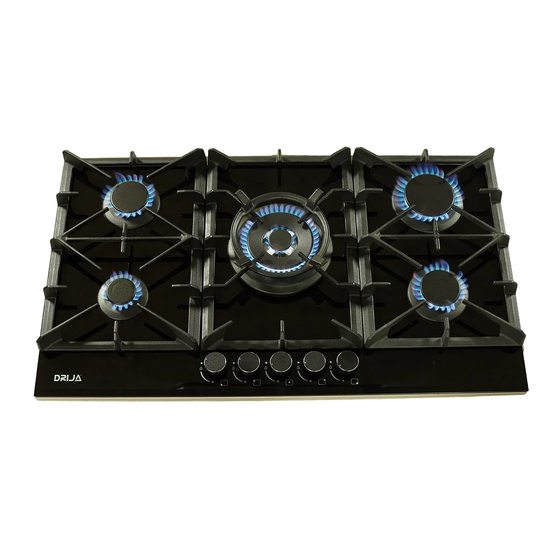

User Manual BUILT-IN GAS STOVE | TOSCANA 76 2. SECURITY WARNING 1. Auxiliary burner 2. Semi-rapid burner 3. Rapid burner 4. Triple ring wok burner 5. Ignitor for Gas Burners 6. Safety Device: Activates if the flame accidentally goes out (spills, drafts, etc.), interrupting the delivery of gas to the burner. -
Page 5: How To Use Your Stove
User Manual BUILT-IN GAS STOVE | TOSCANA 76 MODELS TOSCANA 76 Cooking Zone Voltage 110/240V 50/60Hz Total Power 11.6kW Front Side control operation Product Size D×W×H (mm) 760 x 510 x 100 Cut Out Dimensions D x W (mm) 710 x 480 3. -
Page 6: How To Take Care Of Your Gas Stove
User Manual BUILT-IN GAS STOVE | TOSCANA 76 On those models equipped with a lighter The electric power button, identified by the symbol, must be pressed first, then the corresponding knob is pushed and turned counterclockwise to the "High" setting. - Page 7 User Manual BUILT-IN GAS STOVE | TOSCANA 76 While the cooking surface is still hot, clean it with a scraper and a transparent protective film that prevents more dirt from accumulating. This also protects the surface from damage caused by foods with a high sugar content.
- Page 8 User Manual BUILT-IN GAS STOVE | TOSCANA 76 Rapid burner 22~24 Triple ring wok burner 24~26 To identify the type of burner, refer to the designs in the section entitled "Burner and nozzle specifications". Is there a problem? If you find that the gas plate may not work suddenly or may not work properly. Before calling customer service for help, let's verify what we can do.
-
Page 9: Installation
User Manual BUILT-IN GAS STOVE | TOSCANA 76 After verifying all this, the gas plate still does not work properly, call the Customer Service Center and inform them about: - Indicate the type of problem it presents. - The model number of the gas stove as indicated on the packaging box. - Page 10 User Manual BUILT-IN GAS STOVE | TOSCANA 76 (Fig. 3). Otherwise, the room can be indirectly ventilated through adjacent rooms that are equipped with outside ventilation ducts. Although the adjacent rooms are not shared areas, the rooms, but the risk of fire is hidden (Fig. 4).
- Page 11 User Manual BUILT-IN GAS STOVE | TOSCANA 76 d) The plate must be installed directly under a cabinet, the latter must be at least 700 mm from the worktop, as shown in Fig. C. e) Fixing accessories (hooks, screws) are provided to place the plate on the top of...
- Page 12 User Manual BUILT-IN GAS STOVE | TOSCANA 76 Hook position for Hook position for Hook position for H=20mm top H=30mm top H=40mm top f) In the event that the gas plate is not installed in a built-in oven, a wooden panel must be inserted for insulation.
- Page 13 User Manual BUILT-IN GAS STOVE | TOSCANA 76 instructions in the paragraph entitled "Adaptation to different types of gas." In the case of the connection to the liquid gas per tank, use pressure regulators that comply with the current regulation.
- Page 14 User Manual BUILT-IN GAS STOVE | TOSCANA 76 Electrical connection for gas hob Adjust the power cable with a standard plug for the demand rate indicated on the nameplate or connect it directly to the mains. In the latter case, a one-pole switch must be placed between the board and the mains, with a minimum opening between the 3 mm contacts in accordance with current safety codes (the switch must not interrupt the connection cable to land).
-
Page 15: Specifications Tables
User Manual BUILT-IN GAS STOVE | TOSCANA 76 6. SPECIFICATIONS TABLES Burner and nozzle specifications Adapting the Gas hob for Different Types of Gas Burner Thermal Nozzle Thermal power Nozzle 1/100 power (kW) 1/100 (mm) (kW) (mm) Auxiliary (Small) (A) Semi rapid 1.80... - Page 16 User Manual BUILT-IN GAS STOVE | TOSCANA 76 How to convert a gas source Adjustment of the reduced valve flow Burners Flame Converting the Converting the hob from LPG hob from natural gas to natural gas Gas to LPG Full flame...
- Page 17 User Manual BUILT-IN GAS STOVE | TOSCANA 76 -Burner ON, large flame -Burner ON, small flame（saving mode） -Burner OFF Fig.8 See fig.8 for various operating options (flame size selection); the burner should be set at a large flame during the initial phase of cooking, it make food boil quickly. Then should turn knob to the saving flame position to maintain the cooking.
- Page 18 User Manual BUILT-IN GAS STOVE | TOSCANA 76 Natural — 3440 1548 Triple-ring wok Butane — 3440 1548 NOTICE: A. Before installation, make sure that the local distribution condition (nature of the gas pressure) and the setting of the appliance are compatible ”.
