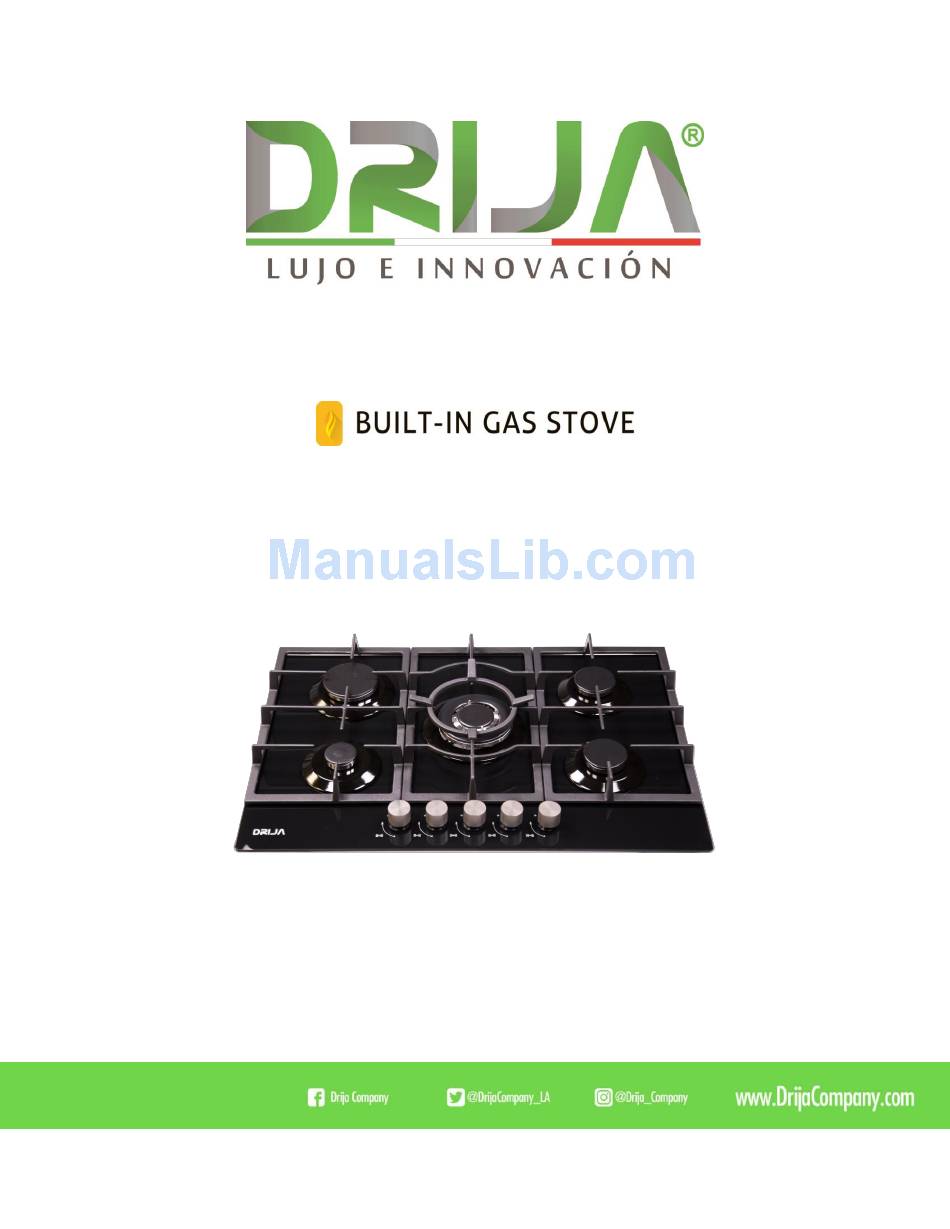

- Page 1 User Manual TOSCANA 76 5 Burners...
-
Page 2: Table Of Contents
User Manual BUILT-IN GAS STOVE | TOSCANA 76 1. INTRODUCTION ......................2 2. SECURITY WARNING ....................2 3. INSTALATION ......................... 3 4. CLEANING AND SERVICE ..................... 9 5. INSTRUCTIONS FOR USE AND MAINTENANCE ............10 6. SAFETY AND ENERGY SAVING ADVICE ..............12 7. -
Page 3: Introduction
User Manual BUILT-IN GAS STOVE | TOSCANA 76 1. INTRODUCTION Thank you for choosing our gas cook top. To use this artifact correctly and prevent any potential risk, read these instructions before using Keep these instructions in a place where you can find easily. -
Page 4: Instalation
User Manual BUILT-IN GAS STOVE | TOSCANA 76 • If there is a gas leak, take the following precautions: - Do not turn on the light. - Do not turn on / off any electrical equipment and do not touch any electrical outlet. - Page 5 User Manual BUILT-IN GAS STOVE | TOSCANA 76 When this stop is installed in marine vehicles or caravans, it should not be used as a heater. Gas piping and electrical cables must be installed in such a way that they do not touch any part or stop.
- Page 6 User Manual BUILT-IN GAS STOVE | TOSCANA 76 SAFETY FOR CHILDREN AND PEOPLE Warning Do not allow children to play near or with the artifact. • The artifact is heated when in use. • Children should be kept away until cool.
- Page 7 User Manual BUILT-IN GAS STOVE | TOSCANA 76 DURING USE Warning Use the artifact only for food preparation. Do not modify this artifact. The burner panel is not designed to operate from an external timer or remote control system. The use of a gas cooker causes heat and humidity in the room in which it is installed.
- Page 8 User Manual BUILT-IN GAS STOVE | TOSCANA 76 Do not use large cloths, dishcloths or similar to the ends could touch the flames and catch fire Never leave the artifact unattended when cooking. Unstable or deformed pans should not be used at the stove, as they may cause an overturn or spill accident.
- Page 9 User Manual BUILT-IN GAS STOVE | TOSCANA 76 Make sure the buttons are 'in this position' when not in use Caution This cap is designed only for home cooking. It is not designed for commercial or industrial purposes. • Prolonged intensive use of the stop may require additional ventilation, egg opening a window, or raising the level of mechanical ventilation (extractor hood).
-
Page 10: Cleaning And Service
User Manual BUILT-IN GAS STOVE | TOSCANA 76 4. CLEANING AND SERVICE Warning Never use abrasive or caustic cleaners. This stop should only be repaired by an authorized service technician and use only genuine spare parts. Caution • Before attempting to clean the stove, it must be disconnected from the mains and cool. -
Page 11: Instructions For Use And Maintenance
User Manual BUILT-IN GAS STOVE | TOSCANA 76 5. INSTRUCTIONS FOR USE AND MAINTENANCE DESCRIPTION OF THE GAS CAP Supports (4) Sponge (4) Screw (4) Turning of gas pipes (1) Injector (4) Instruction manual (1) HOW TO USE STOP The following symbols appear on the control panel, next to each control handle:... - Page 12 User Manual BUILT-IN GAS STOVE | TOSCANA 76 30G10 30G20 Automatic ignition with safety device against flame failure. The stop has a flame failure safety device in each burner, which is designed to stop gas flow to the burner head in the event that the flame comes out To light a burner: •...
-
Page 13: Safety And Energy Saving Advice
User Manual BUILT-IN GAS STOVE | TOSCANA 76 6. SAFETY AND ENERGY SAVING ADVICE Do not use cooking utensils that overlap the edge of the burner. Do not use small-diameter cookware Always use cooking utensils that fit on large burners. -
Page 14: Cleaning And Maintenance
User Manual BUILT-IN GAS STOVE | TOSCANA 76 • The use of pots for roasting, pans or mud pans is not recommended at the same time on several burners as it will accumulate heat and damage the stove. • Do not touch the stove plate and shelves while in use for a period of time after use. -
Page 15: Instructions For Use
User Manual BUILT-IN GAS STOVE | TOSCANA 76 - Do not mix stove and bottom. - The locating pins must fit exactly into the grooves. INSTRUCTIONS FOR USE Caution • No modify this artifact. • This artifact must be installed by an authorized technician or installer. - Page 16 User Manual BUILT-IN GAS STOVE | TOSCANA 76 LOCATION • This device is to be placed to about 600 jobs with the following minimum distances mm of the surface of which they are allowed: • The edges of the hob must be at least 60 mm from one side or rear wall.
- Page 17 User Manual BUILT-IN GAS STOVE | TOSCANA 76 INSTALLING THE STOP 1. Remove the grilles, burner cap and flame spreader, and carefully turn the Stopper upside down and place it on a padded mat. 2. Take care that the ignition devices and the flame and the monitoring devices are not damaged in this operation.
-
Page 18: Gas Connection
User Manual BUILT-IN GAS STOVE | TOSCANA 76 8. GAS CONNECTION • This artifact must be installed and connected in accordance with the installation regulations in force in the country in which the artifact is to be used. • This artifact is supplied to operate on LPG and natural gas. Conversion for use of LPG and natural gas should only be performed by a qualified person. -
Page 19: Electric Connection
User Manual BUILT-IN GAS STOVE | TOSCANA 76 9. ELECTRIC CONNECTION • This artifact must be grounded. • It is designed to be connected to a power supply of 110-240V, 50 / 60HzAC • The supply cable wires are colored according to the following codes:... - Page 20 User Manual BUILT-IN GAS STOVE | TOSCANA 76 Setting the minimum flame level 1. Turn the knob to the minimum. 2. Remove the button and place a small screwdriver in the center of the shaft. 3. The correct setting is obtained when the flame has a length of approximately 3 - 4 mm.
-
Page 21: Problem Solving
User Manual BUILT-IN GAS STOVE | TOSCANA 76 PROBLEM SOLVING • Repairs should only be performed by an authorized technician. Improper repair can be dangerous for you and other important people. • However, some minor problems can be solved as follows:...
