USER'S GUIDE
Page 3

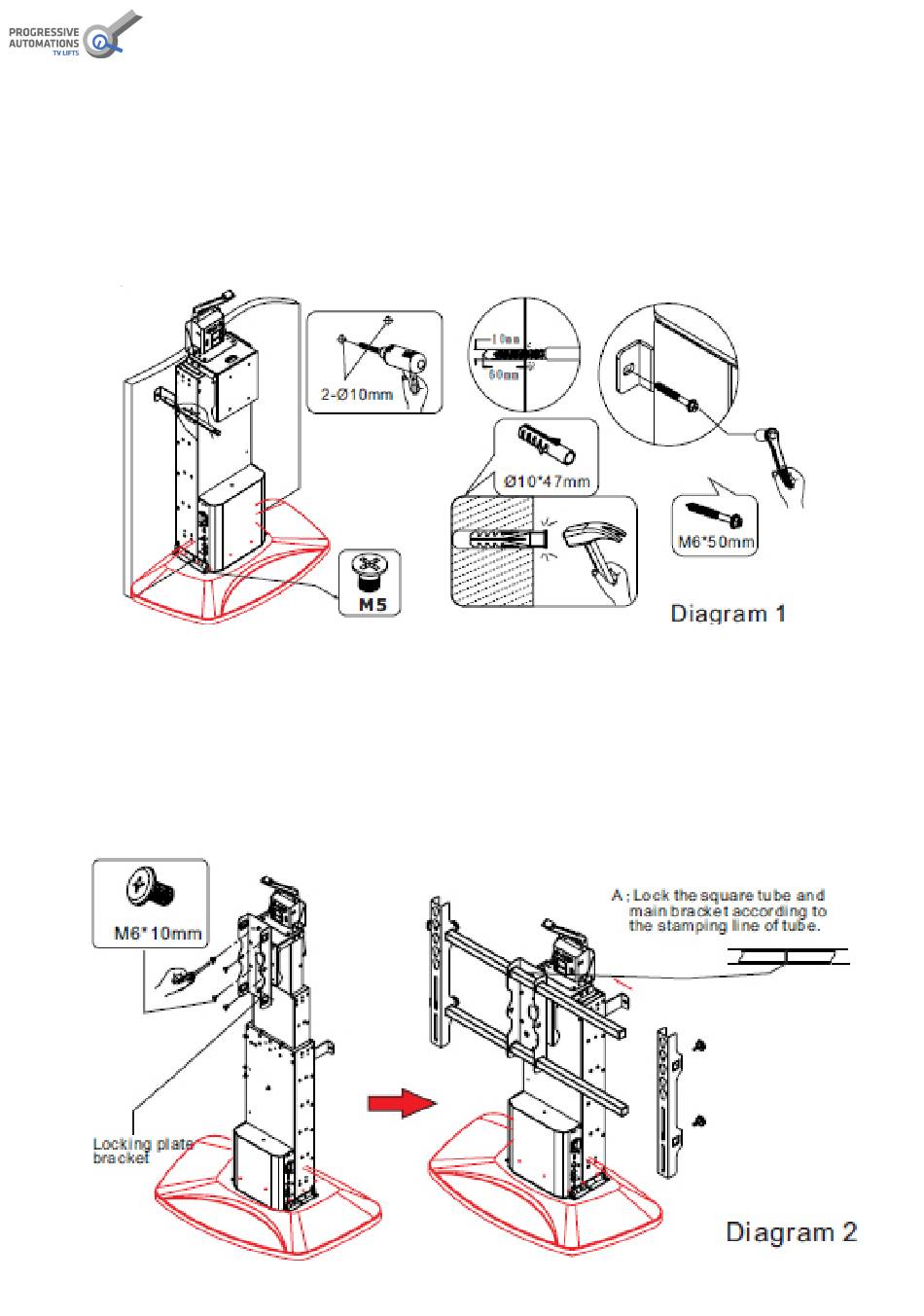

3. Installation Instruction
A.
For installing against the wall, ensure there are not any reinforced steel bar or iron block
in the wall and the wall is not soft, make a mark on the wall according to the hole position of
support bracket. Drill the hole on the mark depth 50~60mm,Ø10mm by electric drill. Take out
2pcs (1)Ø10*47mm Nylon plastic plug and insert them into the holes,and fasten the (2) M6*50
mmHexagon flange wood screw through the holes of support bracket into the plug by Spanner,
ensure that the post assembly can not be moved. (See diagram 1)
B.
Then screw up the locking plate bracket to locking plate by 4pc (3) M6*10mm Flat Head Screw.
Insert two square tubes to the hole of locking plate bracket, then screw up them by 2pcs (6) plastic
head screw( Let the stamped lines on the square tubes close to the edge of locking plate bracket),
hang TV brackets (2pcs) on the square tubes and tighten them by (4) 4pcs plastic head screws
(Keep the distance between the two brackets same as the distance of the horizontal holes on TV
back cover) (see diagram2)
