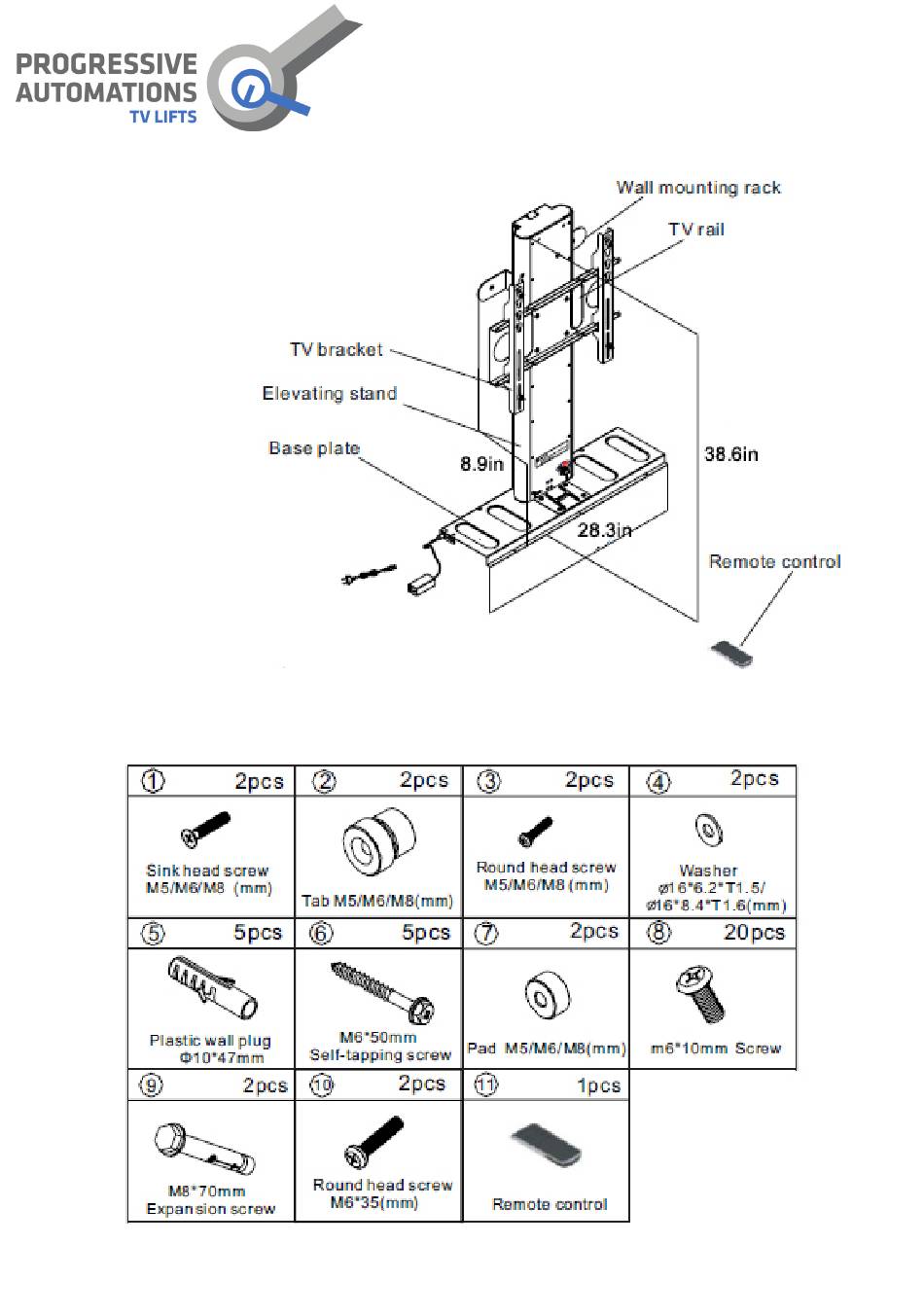

- Page 1 USER’S GUIDE Page 1 Model: NY-13 Elevating TV Stand 1. Specification 1-1. Dimension Length: 28.3 in Height: 38.6 in Width: 8.9 in 1-2. Installation Parts:...
- Page 2 USER’S GUIDE Page 2 Notice 1: Use originals only,any other unapproved components may result in the falling off of TV and this bracket. Notice 2:Check all the parts included with shown in the manual. If parts are missed or damaged,do not use it and please return to your local distributor.
- Page 3 USER’S GUIDE Page 3 3. Installation Instruction 3-1. Firstly, please make sure the wall is even and has a thickness at least 80mm and at the position where you want to mount the TV no any hard materials (such as : reinforcing steel bar , steel block ,etc) and any unstable structures exist.
- Page 4 USER’S GUIDE Page 4 3-3. Fasten base plate on the ground by M6X50mm self- tapping screws. (See diagram 3) 3-4. Connect the power supply and turn on the switch,use remote control to rise the elevating stand to the top position, then fix the wall mounting rack to the wall by (9) expansion screws, and connect the base plate and elevating stand by (8) M6X10mm screws.(see diagram 4)
- Page 5 USER’S GUIDE Page 5 3-5. Adjust the elevating stand to the bottom position, turn off the switch, fix the TV rail to elevating stand by (8) M6X10mm screws. (See diagram 5) 3-6. Screw up (2) tabs on the upper holes of TV back cover by (1) sink head screws,then , hook TV brackets on the tabs .
- Page 6 Operating Extending Model Size (inch) Dimension Size (inch) Size (inch) Life (times) angle () Length(in) Weight (lbs) NY-13 32~42” 28.3”x 23.6 x 15.7 7.87 x 7.87 30,000 ± 15 25.2 60.63 ±1 8.9”x38.6” WARNING: This wall mount is intended for indoor use only with the maximum weights indicated . Use with vier than the maximum weights indicated may result in instability causing possible injury.
- Page 7 USER’S GUIDE Page 7 7. Maintenance Unplug the powers of this bracket& FPD before maintenance is engaged in and follow the tructions described in FPD ‘s manual for daily maintenance of TV& bracket. Do not use corrosive agent or alcohol or chemical cloth to clean! 8.
