USER'S GUIDE

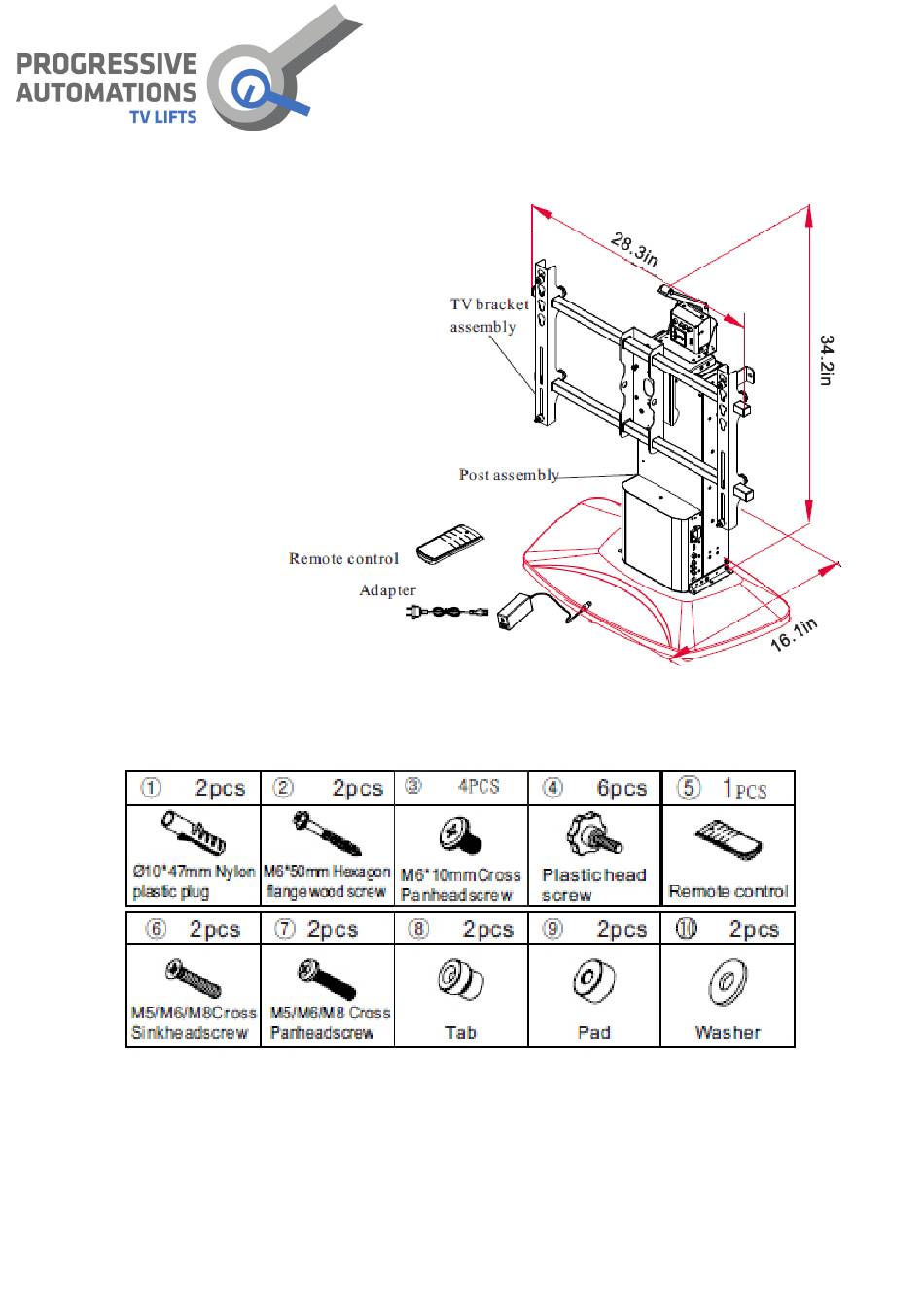

Page 1
Model: NY-16
Remote Controlled Flat Panel TV Bracket
1. Specification
1-1. Dimension
Length: 28.3 in
Height: 16.1 in
Width: 34.25.1 in
1-2. Installation Parts:
Check all the parts as shown on the manual included. If parts are missed or damaged, do not use
it and please return to your local distributor.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for progressive automations NY-16
Summary of Contents for progressive automations NY-16
- Page 1 USER’S GUIDE Page 1 Model: NY-16 Remote Controlled Flat Panel TV Bracket 1. Specification 1-1. Dimension Length: 28.3 in Height: 16.1 in Width: 34.25.1 in 1-2. Installation Parts: Notice: Check all the parts as shown on the manual included. If parts are missed or damaged, do not use...
- Page 2 USER’S GUIDE Page 2 1.3 Assembly tools (NOT INCLUDED) 2. Electric Specification 2-1. Power Supply Specifications Use the supplied AC adapter with the following specifications: Input: 110-240V, 1.2A, 50/60Hz Output current: DC24V , 3.0A 2-2. Device Specifications DC Input: DC 24V, 3.0 A AC Input: AC 100 - 250V, 2.0A, 50/60Hz AC output: AC 100 - 250V, 2.0A, 50/60Hz 2-3.
- Page 3 USER’S GUIDE Page 3 3. Installation Instruction For installing against the wall, ensure there are not any reinforced steel bar or iron block in the wall and the wall is not soft, make a mark on the wall according to the hole position of support bracket.
- Page 4 USER’S GUIDE Page 4 Screw up the 2pcs (8) tab to the upper holes of TV back cover by 2pcs (6) sink head screw, then hang TV to the corresponding holes of TV bracket by the two tabs. Put the 2pcs (9) pad between TV bracket and the holes on TV back cover, and then fasten them by 2pcs washer and 2pcs (7) M5/M6/M8 pan head screw.
- Page 5 USER’S GUIDE Page 5 After finish and check above installation step, please connect terminal of power, TV signal, VEDIO and AUDIO signal of TV with top insert holes of post assembly. ( Please comply with the installation instruction to connect strictly) (See diagram 5) After ensure that the above step is ok, please insert the power of this product.
- Page 6 (Coding key, Indicator, Please see diagram 6) 3.2. Technical Parameters: Item TV Screen Cart Max Installation Min Installation Loading Extending Model Size (inch) Dimension Size (inch) Size (inch) (lbs) Length(in) Weight (lbs) NY-16 32~42” 28”x 16”x 24 x 16 8 x 8 34”...
- Page 7 USER’S GUIDE Page 7 WARNING: This wall mount is intended for use only with the maximum weight indicated. Use with heavier than the maximum weight indicated may result in instability causing possible injury. 3.4. Caution: 3.5. Maintenance Often to check the product, ensure the safety. Do not use corrosive agent or alcohol or chemical cloth to clean.
