2. Electric Specification
2-1. Input voltage/Current/Frequency, Output current
A. Input voltage/Current/Frequency: 110-240VAC/< 0.65A/50~60Hz
B. Output current: DC12V , 2A
2-2. Motor
Item
Motor
Warning:
Correct installation is extremely essential , and falls outside the scope of responsibility of
manufacturer . The user must pay attention to the weight of TV and TV wall mount, and only solid
wall can support the weight. For the wooden wall, product's fasteners supplied shall be positioned
in wood stubs. Please comply with the installation instruction of LCD/PDP to install them.
3. Installation Instruction
3-1.
Be sure the wall to be mounted is solid
enough and does not have rigid material
inside and he wall thickness at least 80mm.
Then,put the mounting panel on the wall,
horizontalize it and mark hole locations.

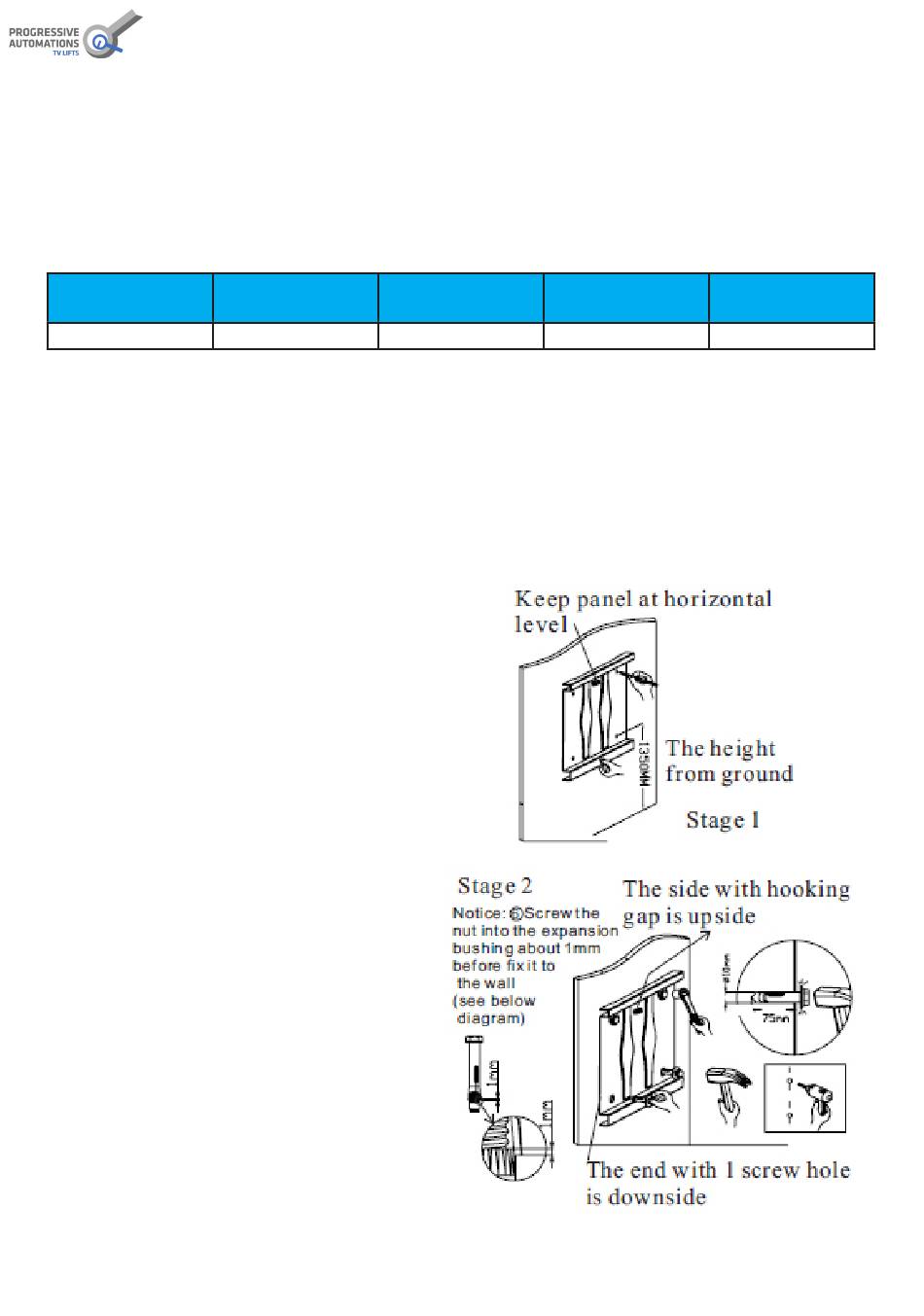

(Stage 1)
3-2.
Drill holes on the wall at marked
locations to 75mm depth and Ø 10mm, put
(6) expansion screw (4PCS) to the holes,
and tighten them with hammer and spanner.
(Stage 2)
Rated
Current
Voltage
(No load)
DC12V
≤ 0.3 A
USER'S GUIDE
Current
(Rated load)
Temperature
≤ 0.6 A
-20 C ~ -50 C
Page 2
