1.Specification

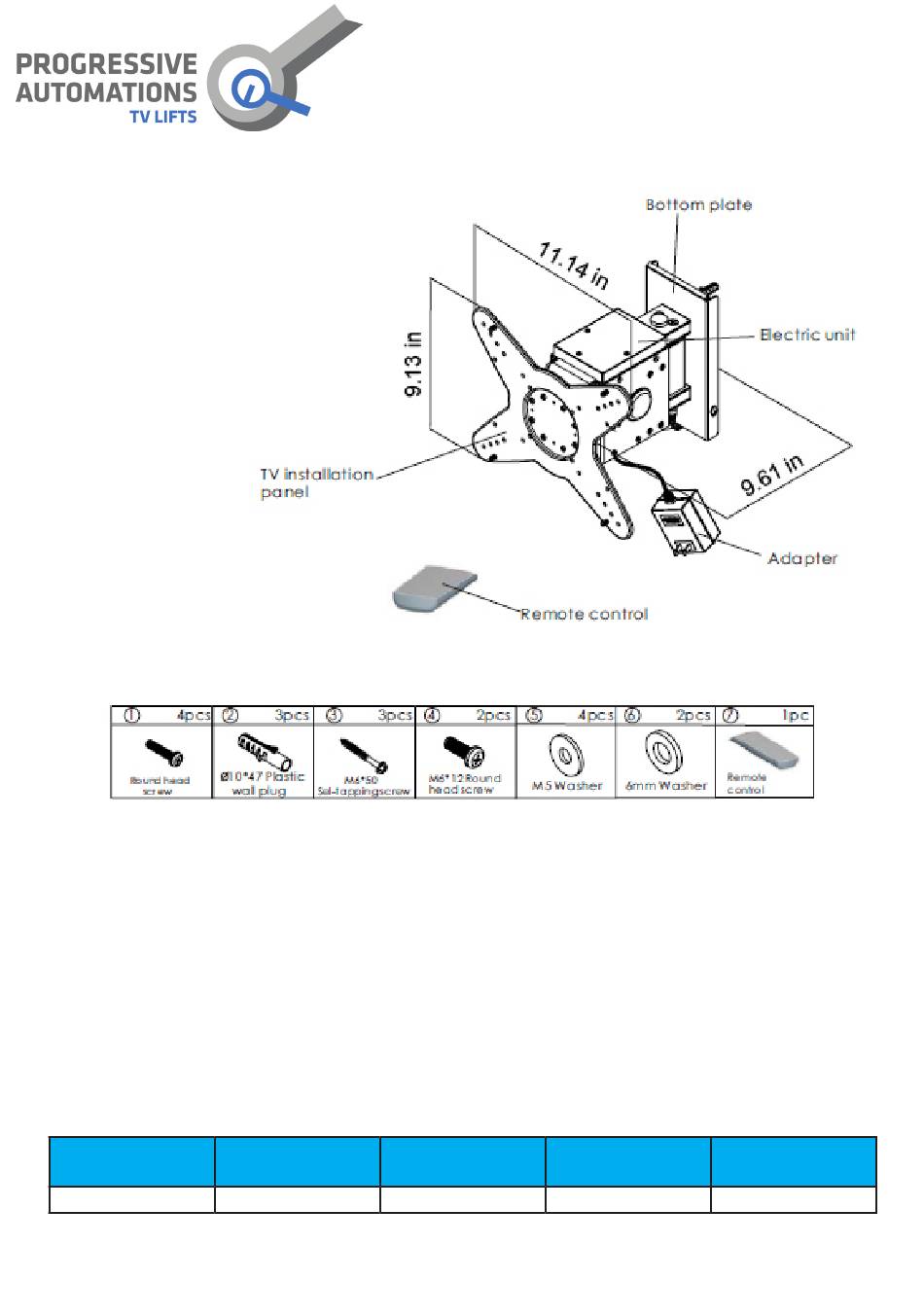

1-1.Outer dimension
Length: 11.14 in
Height: 9.13 in
Width: 9.61 in
1-2.Installation Parts:
2.Electrical Specification
2-1
a. Input Voltage/Current/Frequency:
b. Output Current:
2-2.Motor
Item
Motor
Model:NY-01 wall mounting TV Cart
100-240VAC 0.8A /50~60Hz
DC12V ,2A
Rated
Current
Voltage
(No load)
DC12V
≤ 0.3 A
USER'S GUIDE
Current
(Rated load)
Temperature
≤ 2.0 A
-20 C ~ -50 C
Page 1
Operation
Advertisement
Table of Contents
Related Manuals for progressive automations NY-01
Summary of Contents for progressive automations NY-01
- Page 1 USER’S GUIDE Page 1 Model:NY-01 wall mounting TV Cart 1.Specification 1-1.Outer dimension Length: 11.14 in Height: 9.13 in Width: 9.61 in 1-2.Installation Parts: 2.Electrical Specification a. Input Voltage/Current/Frequency: 100-240VAC 0.8A /50~60Hz b. Output Current: DC12V ,2A 2-2.Motor Item Rated Current...
- Page 2 USER’S GUIDE Page 2 Warning: Correct installation is extremely essential , and falls outside the scope of responsibility of manufacturer . The user must pay attention to the weight of TV and TV bracket , and only solid wall can support the weight . Please complied with the installation instruction of LCD/PDP to install them .
- Page 3 Bearing Up & Down Model Size (inch) Dimension Size (inch) Size (inch) (lbs) angle () angle () Weight (lbs) NY-01 15-32” 11.1” x 7.84 x 7.84 2.95 x 2.95 88.18 ± 15 ± 15 13 ±1.1 9.1” x 9.6” CAUTION: This wall mount is intended for use only with the maximum weights indicated .
- Page 4 USER’S GUIDE Page 4 SAVE THESE INSTRUCTIONS 3.4 IMPORTANT SAFETY INSTRUCTIONS When using an electrical mounting system, basic precautions should always be followed, including the following: Read all instructions before using (this mounting system). Danger to reduce the risk of electric shock: 1.
