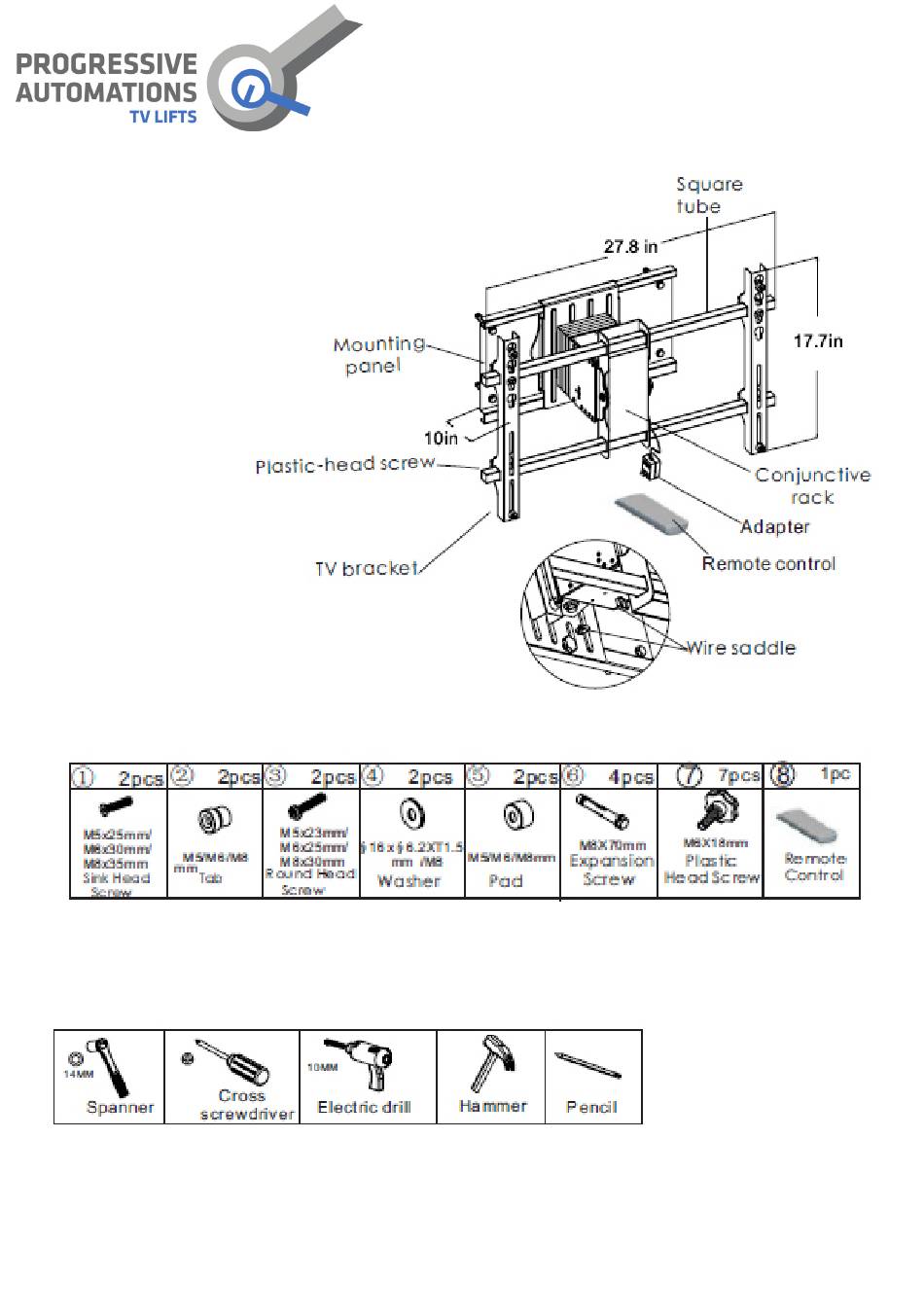

1. Specification
1-1. Dimension
Length: 27.8 in
Height: 10 in
Width: 17.7 in
1-2. Installation Parts:
1.3 Assembly tools (NOT INCLUDED)
Check all the parts as shown on the manual included .If parts are missed or damaged, do not use
it and please return to your local distributor.
Model: NY-08
TV Wall Mount
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for progressive automations NY-08
Summary of Contents for progressive automations NY-08
- Page 1 USER’S GUIDE Page 1 Model: NY-08 TV Wall Mount 1. Specification 1-1. Dimension Length: 27.8 in Height: 10 in Width: 17.7 in 1-2. Installation Parts: 1.3 Assembly tools (NOT INCLUDED) Check all the parts as shown on the manual included .If parts are missed or damaged, do not use...
- Page 2 USER’S GUIDE Page 2 2. Electric Specification 2-1. Input voltage/Current/Frequency, Output current A. Input voltage/Current/Frequency: 110-240VAC/< 0.65A/50~60Hz B. Output current: DC12V , 2A 2-2. Motor Item Rated Current Current Operation Voltage (No load) (Rated load) Temperature Motor DC12V ≤ 0.3 A ≤...
- Page 3 USER’S GUIDE Page 3 3-3. Insert square tube (2pcs)into the holes of the conjuctive rack, let the stamped lines on the quare tubes close to the edge of conjunctive racks. Screw up the (7) plastic-head screws behind the conjunctive rack to fasten square tube. Finally,hang TV brackets (2pcs) on the square tubes and tighten them by (7) plastic- head screws.
- Page 4 USER’S GUIDE Page 4 3-6. With the help of another person , hook TV bracket (with TV) to the hooking gap of the mounting panel, then tighten (7) plastic head screw. (Stage 6) 3-7. Fix the power cord of TV Please use the wire saddle to fix the power cord of TV.
- Page 5 USER’S GUIDE Page 5 B. Remote Control (Stage 9): I. Key Function 1. Up : Hold on to pitch TV up. 2. Down : Hold on to pitch TV down. 3. Left : Hold on to turn TV left. 4. Right : Hold on to turn TV right. II.
- Page 6 Load Up & Down Model Size (inch) Dimension Size (inch) Size (inch) (lbs) angle () angle () Weight (lbs) NY-08 25~46” 27.8”x 23.6 x 15.7 7.87 x 7.87 176.4 Up 10 29 0.5 17.7”x10” Down 15 CAUTION: This wall mount is intended for use only with the maximum weights indicated . Use with heavier an the maximum weights indicated may result in instability causing possible injury.
