Continuum Surelite Laser
snugly into the groove below the Power Cooling Group (PCU). Arrows should point
towards the inside of the crate.
10.
Lift the PCU head plug cable (with military plug) out of the crate and lay it on top
of the PCU.
11.
Carefully roll the PCU down the ramp. Position the PCU close to the laser bench.
12.
Remove the ramp.
13.
After unpacking is complete, reassemble the crate for storage. Don't forget to
include the cardboard boxes. We suggest that you store a copy of these instructions in the
crate for future repacking.
Installation
S
TEPS
1. Empty the accessory box. Examine the contents and
identify the following items:
• (4 ea.) ¼ -20 1.5" hex head bolts (8 with Surelite
Separation Package, SSP)
• (4 ea.) ¼-20 flat washers (8 with SSP)
• (4 ea.) "L" brackets (8 with SSP)
• 4 (4 ea.) Foot pads (donuts) (8 with SSP)
• (1 ea.) Interlock defeat bracket with plastic knurled bolt
• (1 ea.) Set metric Allen keys
• (2 ea.) System key
20
HIGH VOLTAGE!
The laser head and power supply contain lethal
voltages and currents. Never operate the laser with
the power supply cover removed.
HIGH VOLTAGE!
Observe all the precautions that are outlined in
Section 1: Laser Safety Precautions, expecially
when the laser head cover is open. When open,
operate the laser only in low energy mode.

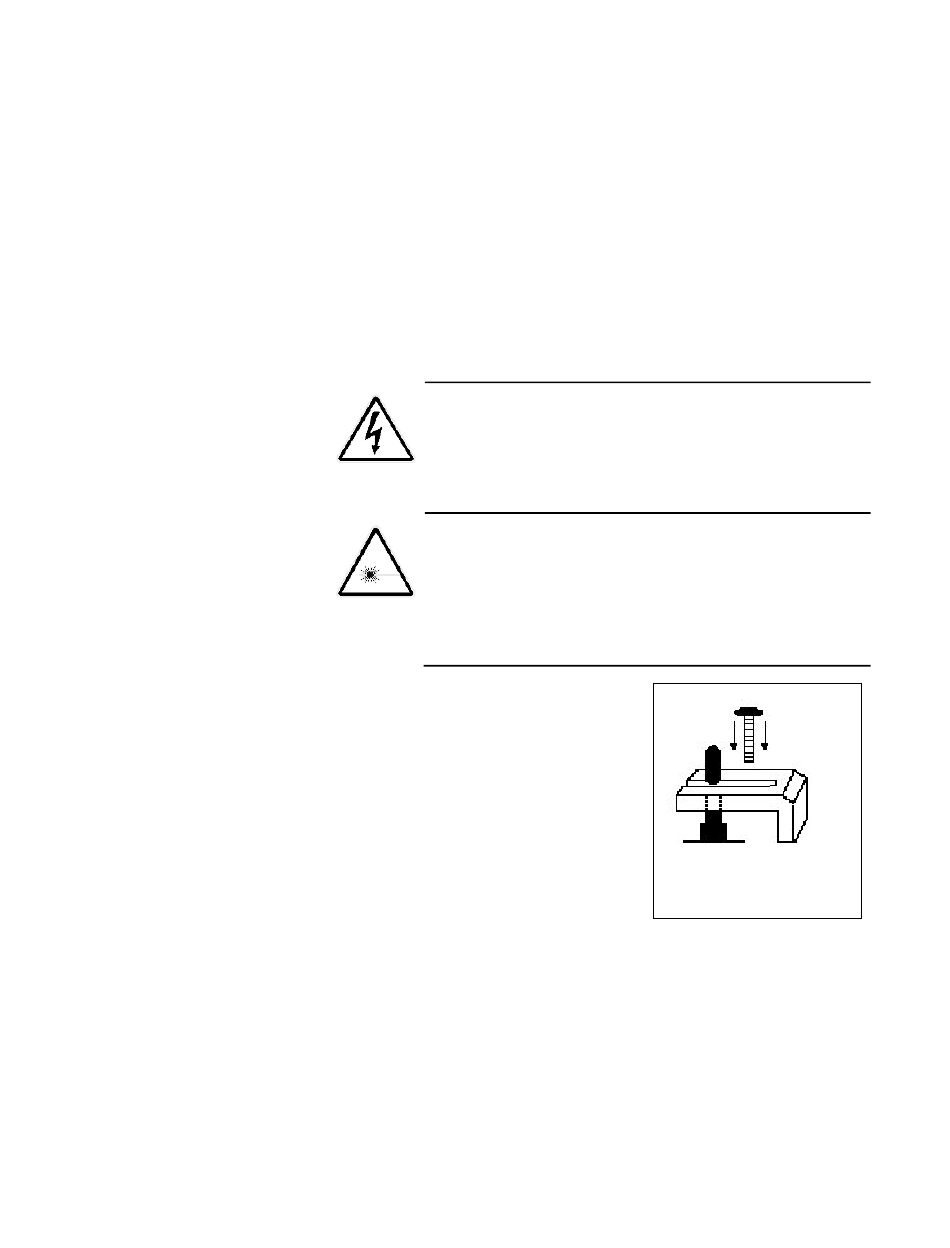

Figure 9 Bracket and "donut"
placement
996-0207
