10. Position the SSP so that the 266 nm and the 532 nm/1,064 nm fall cleanly on their
respective mirror surfaces with no clipping. See diagram on page 35.
11. Steer the 266 nm separated from the 532 nm/1,064 nm into a volume absorbing power
meter set on the 1 Watt scale.
12. Reset voltage using ARROW UP button on front of PCU to original setting (noted in
step 7) and return to continuous operation.
13. Locate the SLT/SLF adjust knob on the side of laser housing assembly and slowly rotate
knob for maximum energy. You should not have to rotate more than one full turn either
clockwise or counter clockwise. Unless it is suspected to be grossly misadjusted, do not
rotate more than one full turn either clockwise or counter clockwise.
14. Locate SLD adjust knob on top of laser housing assembly and slowly rotate knob for
maximum energy. Unless it is suspected to be grossly misadjusted, do not rotate more
than one full turn in either direction.

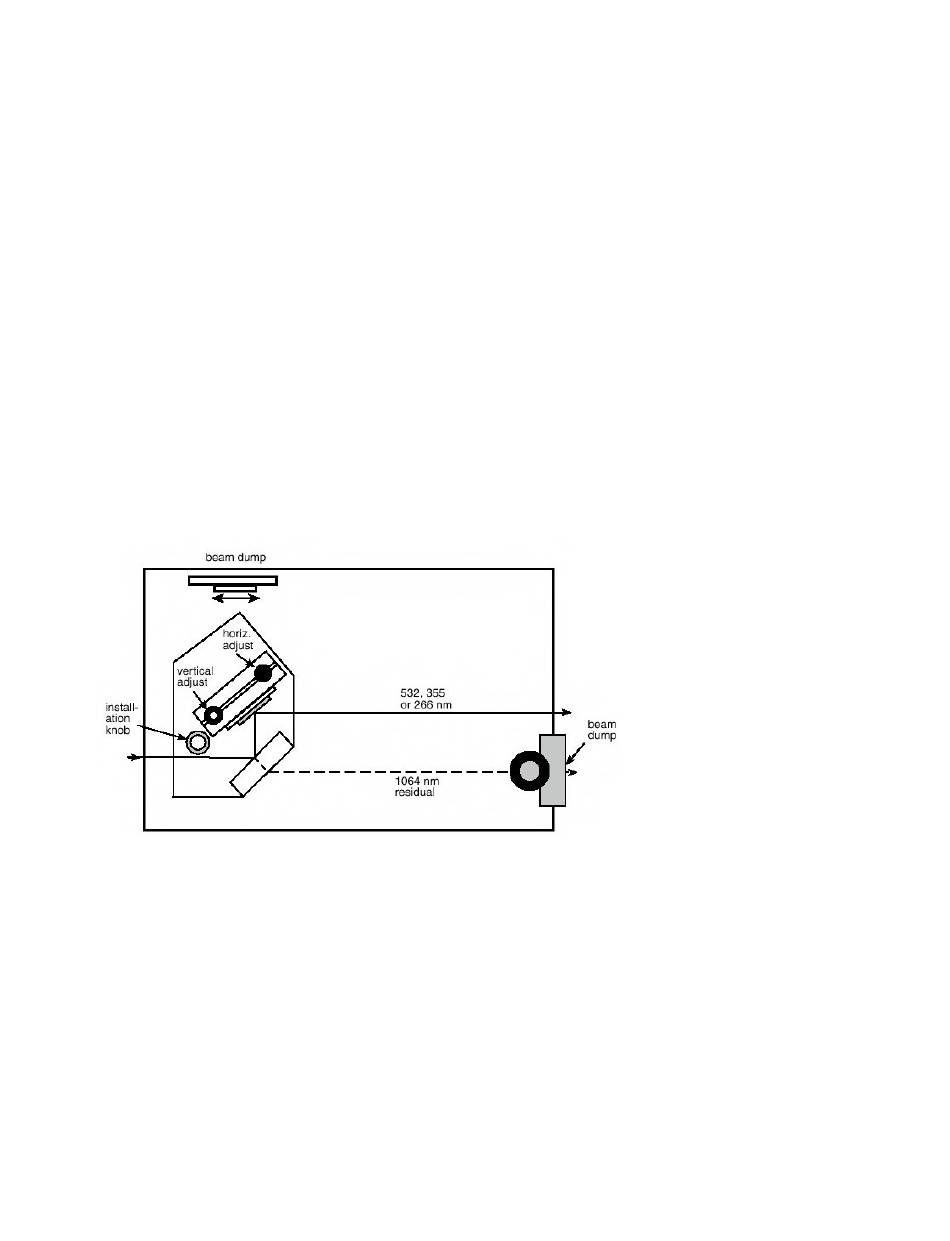

Figure 15 SSP 1,2,3,4 optical layout (top view with cover off)

996-0207
