Summary of Contents for HIKVISION DS-K1801EK
- Page 1 [键入文字] DS-K1801 Series Card Reader User Manual UD.6L0206D1182A01...
- Page 2 ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
-
Page 4: Table Of Contents
Table of Content Chapter 1 Preventive and Cautionary Tips ....1 Chapter 2 Introduction ..........2 Front View ..........2 Side View and Rear View ......2 Chapter 3 Wiring and Installation ......3 Terminal Description ......... 3 Wiring Cables ..........3 Installing Card Reader ....... -
Page 5: Chapter 1 Preventive And Cautionary Tips
Chapter 1 Preventive and Cautionary Tips To guarantee the card reader works properly, please read and obey the notes below. If the card reader is powered by the controller, the power supply distance is recommended to be no longer than 100m. If the distance is longer than 100m, you are advised to power the card reader by external 12V (range: -%10 ~ +%10) DC power supply, which is nonswitched and linear. -
Page 6: Chapter 2 Introduction

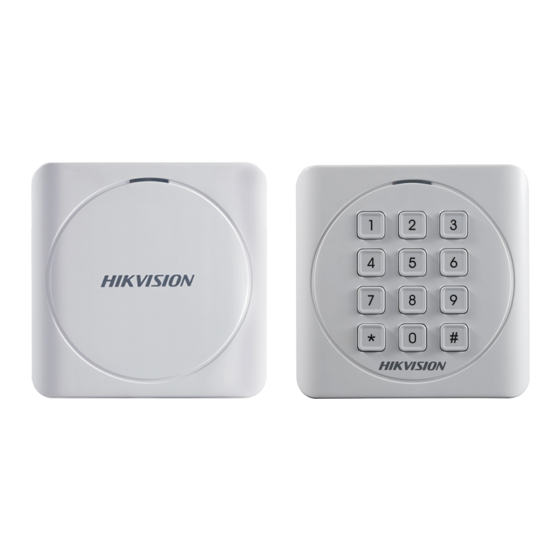

Chapter 2 Introduction 2.1 Front View The front view of DS-K1800 series card reader is shown below: DS-K1801M/DS-K1801E DS-K1801MK/DS-K1801EK 2.2 Side View and Rear View The side view of card reader is shown below: Side View Rear View... -
Page 7: Chapter 3 Wiring And Installation
Chapter 3 Wiring and Installation 3.1 Terminal Description The description of 10 cables is shown below. Table 3-1 Description of Cable Color Description Color PWR (12V DC) Gray Beep Control (available for Wiegand Gray WG_BEEP Protocol) WG_OK OK (available for Wiegand Protocol) Gray WG_ERR Error (available for Wiegand Protocol) -
Page 8: Installing Card Reader
Figure 3-1 Wiring for Wiegand Communication Mode If the Wiegand mode is selected as Private Wiegand 34, disconnect the WIG_26/34 cable. If the Wiegand mode is selected as Private Wiegand 26, ground the WIG_26/34 cable. 3.3 Installing Card Reader Steps: Fix the plate on the wall with screws(A and B) or other place with flat surface. -
Page 9: Chapter 4 Sound Prompt And Indicator
Connect the cables between controller and card reader. For details, refer to 3.2 Wiring Cables. Buckle the card reader up to the plate with aligning C point and the corresponded slot on the upper side of card reader . Press the lower side of the card reader to fasten the card reader on D point of the plate. - Page 10 LED Indicator Status Description Flicking Green Card reader is working properly. The operation of pressing keys or Solid Green for a period swiping card is valid. The operation of pressing keys or Solid Red for a period swiping card is invalid.
