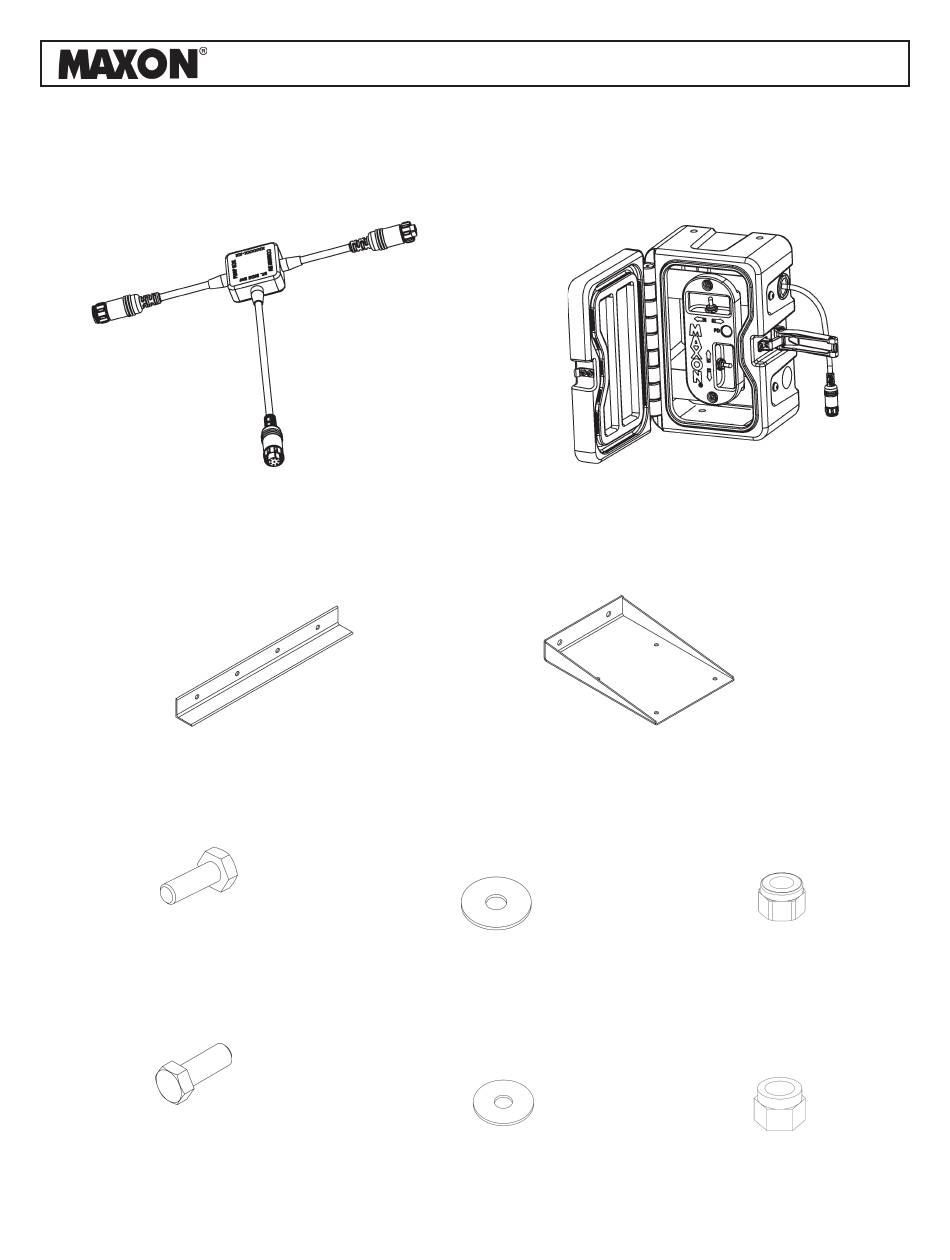

INSTRUCTION, BMR STREET-SIDE CONTROL
GRAVITY DOWN CONTROL KIT, P/N 297080-01
ELECTRICAL CONTROL TEE
P/N 296899-01
ANGLE, 2" X 2" X 1/8" X 20" LG
P/N 263299
QTY. 1
CAP SCREW
1/4"-20 X 1" LG, GRADE 8
P/N 900004-3
QTY. 4
HEX CAP SCREW
3/8"-16 X 1" LG, GRADE 8
P/N 900014-4
QTY. 2
© MAXON Lift Corp. 2017
LIFT CORPORATION Sht. 1 of 13 DSG#
POWER DOWN CONTROL KIT, P/N 297080-02
QTY. 1
PLASTIC ENCLOSURE WITH
GRAVITY DOWN CONTROL (-01 KIT) OR
POWER DOWN CONTROL (-02 KIT)
ANGLE PLATE
P/N 263264-01
WASHER, 1/4"
P/N 903438-01
QTY. 8
FLAT WASHER, 3/8"
P/N 902001-2
QTY. 4
M-16-04
Rev. A Date: 01/13/17
QTY. 1
QTY. 1
LOCK NUT, 1/4"-20
P/N 901000
QTY. 8
LOCK NUT, 3/8"-16
P/N 901002
QTY. 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the 297080-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxon 297080-01

Summary of Contents for Maxon 297080-01

  • Page 1 M-16-04 LIFT CORPORATION Sht. 1 of 13 DSG# Rev. A Date: 01/13/17 INSTRUCTION, BMR STREET-SIDE CONTROL GRAVITY DOWN CONTROL KIT, P/N 297080-01 POWER DOWN CONTROL KIT, P/N 297080-02 ELECTRICAL CONTROL TEE PLASTIC ENCLOSURE WITH P/N 296899-01 GRAVITY DOWN CONTROL (-01 KIT) OR QTY.
  • Page 2 LIFT CORPORATION Sht. 2 of 13 DSG# Rev. A Date: 01/13/17 WARNING DECAL P/N 268416-01 QTY. 1 OPERATING INSTRUCTIONS DECAL P/N 288968-01 YELLOW REFLECTIVE TAPE QTY. 1 3” X 1” LG P/N 090175-14 QTY. 1 © MAXON Lift Corp. 2017...
  • Page 3 FLAT WASHER, 1/4” (8 PLACES) (P/N 902000-2) & LOCK NUT, 1/4”-20 (4 PLACES) (P/N 901000) SOCKET SCREW, SWITCH ASSEMBLY 1/4”-20 X 1” LG. (P/N 296150-02) (2 PLACES) (P/N 900025-1) ENCLOSURE ASSEMBLY WITH POWER DOWN CONTROL (-02 KIT) © MAXON Lift Corp. 2017...
  • Page 4 TO DISCONNECT FIG. 4-1 FIG. 4-2 FIG. 4-3 THIN COAT OF DIELECTRIC GREASE ALIGN TAB & ON SHADED AREA SLOT DIELECTRIC GREASE TIGHTEN TO LOCK ALIGN & CONNECT ON RECEPTACLE FIG. 4-6 FIG. 4-5 FIG. 4-4 © MAXON Lift Corp. 2017...
  • Page 5 3. Bolt the angle plate (Kit item) to angle (FIG. 5-2). HEX CAP SCREW, 3/8”-16 (2 PLACES) FLAT WASHER, 3/8” (2 PLACES) LOCK NUT, 3/8”-16 2”X2” ANGLE (2 PLACES) ANGLE PLATE BOLTING ANGLE PLATE TO ANGLE (LH COLUMN SHOWN) FIG. 5-2 © MAXON Lift Corp. 2017...
  • Page 6 To prevent accidental personal injury and equipment damage, make sure power is disconnected from Liftgate while installing parts. WARNING 5. Turn OFF the master disconnect switch at the pump box to disconnect battery power from the hydraulic pumps. Refer to BMR Operation Manual for detailed instructions. © MAXON Lift Corp. 2017...
  • Page 7 8. Connect tee to the control switch cable connector extending from plastic enclosure (FIG. 7-1). 9. Reconnect battery power to the hydraulic pumps by turning ON the master disconnect switch at the pump box. Refer to BMR Operation Manual for detailed instructions. © MAXON Lift Corp. 2017...
  • Page 8 RH column as shown in FIG. 8-1. The tape will indicate when the runners are in correct position for unfolding and folding RUNNER the platform. ALIGNMENT ARROW RH COLUMN 6” 3” REFLECTIVE TAPE FIG. 8-1 © MAXON Lift Corp. 2017...
  • Page 9 (GRAVITY DOWN SHOWN) unfolded (horizontal) position and then release FIG. 9-1 the switches. RUNNER ARROW YELLOW TAPE FIG. 9-2B UNFOLD STREET-SIDE CONTROL FIG. 9-2C UNFOLDING PLATFORM FIG. 9-2A © MAXON Lift Corp. 2017...
  • Page 10 (Kit item) to the sleeve on the LH col- umn (FIG. 10-1). WARNING DECAL OPERATING INTRUCTIONS DECAL ATTACHING DECALS FIG. 10-1 13. Attach the WARNING decal (Kit item) to the vehicle body as shown in FIG. 10-1. © MAXON Lift Corp. 2017...
  • Page 11 LOWERING PLATFORM TO GROUND USING STREET-SIDE CONTROL SWITCH FIG. 11-1 15. To RAISE platform, use street-side control switch as shown in FIG. 11-2. Release switch when platform reaches bed height. RAISING PLATFORM USING STREET-SIDE CONTROL SWITCH FIG. 11-2 © MAXON Lift Corp. 2017...
  • Page 12 ARROW TAPE FIG. 12-1B DOWN STOWING PLATFORM USING STREET-SIDE CONTROL SWITCH FIG. 12-1A 17. Hold both toggle switches 1 and 2 to FOLD platform (FIG. 12-2). FOLD FOLDING PLATFORM USING STREET-SIDE CONTROL SWITCH FIG. 12-2 © MAXON Lift Corp. 2017...
  • Page 13 Raise platform until round wedge on each WEDGE opener arm is behind the upper locking wedge on each column (FIG. 13-1B). OPENER UPPER LOCKING WEDGE ENGAGED FIG. 13-1B PLATFORM STOWED IN UPPER LOCKED POSITION FIG. 13-1A © MAXON Lift Corp. 2017...
