INSTRUCTIONS, ME2 FLOW RESTRICTOR KIT
Installing and maintaining a liftgate can expose you to chemicals, including lead, which are known
to the State of California to cause cancer and birth defects or other reproductive harm. To minimize
exposure, install and maintain liftgate in a well-ventilated area and wear proper Personal protective
equipment (PPE). For more information go to www.P65Warnings.ca.gov.

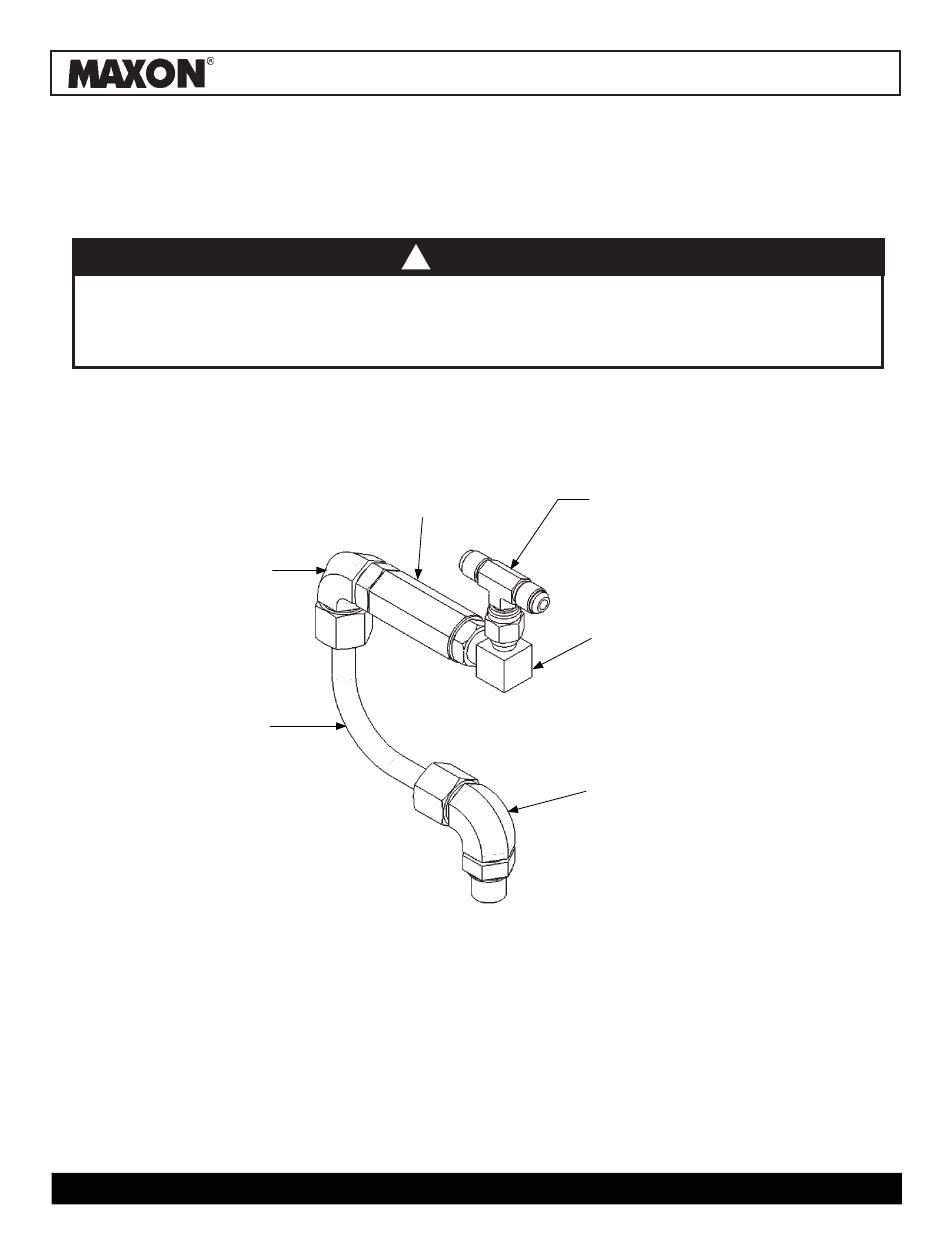

ELBOW, #6-4,
(P/N 906818-01)
TUBE ASSEMBLY
(P/N 211977-01)
Estas instrucciones están disponibles en español a partir de la página 7.
©
MAXON Lift Corp. 2021
LIFT CORPORATION Sht. 1 of 12 DSG#
INSTALLATION
KIT P/N 212001-01
FLOW CONTROL VALVE
(P/N 906940-01)
ME2 FLOW RESTRICTOR KIT
WARNING
!
(P/N 905250)
(P/N 906704-02)
P/N 221001-01
QTY. 1
M-21-09
Rev. - Date: 05/03/21
TEE, 37°, #4
ELBOW, 90°, #6
(P/N 906718-01)
ELBOW, #6
Advertisement
Related Manuals for Maxon ME2
Summary of Contents for Maxon ME2
- Page 1 M-21-09 LIFT CORPORATION Sht. 1 of 12 DSG# Rev. - Date: 05/03/21 INSTRUCTIONS, ME2 FLOW RESTRICTOR KIT INSTALLATION KIT P/N 212001-01 WARNING Installing and maintaining a liftgate can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, install and maintain liftgate in a well-ventilated area and wear proper Personal protective equipment (PPE).
- Page 2 WARNING To prevent accidental personal injury and equipment damage, disconnect (-) battery cable from battery. 1. Unfold the platform (FIG. 2-1). Refer to ME2 Operation Manual for instructions. 2. Turn power on and activate Liftgate. Then, use the control switch to lower (DN) platform until all pressure in hy- draulic system is released (FIG.
- Page 3 fl uid from the cylinder. HYDRAULIC HOSE 5. Disconnect 2 hydraulic hoses (FIG. 3-2) from the tee. Then disconnect tee from pump (FIG. 3-2). PUMP AND MOTOR DISCONNECTING HYDRAULIC HOSES FIG. 3-2 © MAXON Lift Corp. 2021...
- Page 4 (FIG. 4-1A). Then, VALVE connect hydraulic hoses to tee on the fl ow ELBOW restrictor assembly. TEE CONNECTION TUBE CONNECTIONS ELBOW (2 PLACES) PUMP PORT CONNECTION FIG. 4-1A CONNECTING FLOW RESTRICTOR KIT FIG. 4-1 © MAXON Lift Corp. 2021...
- Page 5 Hydraulic lines and fi ttings must be torqued as shown in FIG. 5-1 and TABLE 5-1. 7. Torque the fi ttings as shown in FIG. 5-1 and TABLE 5-1. TIGHTENING FITTINGS FIG. 5-1 ITEM DESCRIPTION TORQUE VALUE #6 O-RING 22-24 lb-ft. #4 JIC 11-13 lb-ft. TORQUE VALUES TABLE 5-1 © MAXON Lift Corp. 2021...
- Page 6 9. Test the Liftgate for proper operation, and check for hydraulic leaks. 10. Bolt cover to main frame as shown in FIG. 6-1. MAIN FRAME COVER HEX NUT AND FLAT WASHERS (3 PLACES) REINSTALLING COVER FIG. 6-1 © MAXON Lift Corp. 2021...
- Page 7 CONECTOR, 37°, #4 (N/P 906940-01) (N/P 905250) CODO, #6-4, (N/P 906818-01) CODO, 90°, #6 (N/P 906718-01) ENSAMBLE DEL TUBO (N/P 211977-01) CODO, #6 (N/P 906704-02) KIT LIMITADOR DE FLUJO PARA ME2 N/P 221001-01 CANT. 1 © MAXON Lift Corp. 2021...
- Page 8 (-) en la batería. 1. Despliegue la plataforma (FIG. 8-1). Consulte ENCEND- ELEVADOR el Manual de Operación ME2 para conocer ACTIVADO las instrucciones. 2. Encienda y active el elevador hidráulico. Después, utilice el interruptor de control para descender la plataforma (DN) hasta que toda la presión en el...
- Page 9 fl uido hidráulico en el cilindro. MANGUERA HIDRÁULICA 5. Desconecte 2 mangueras hidráulicas (FIG. 9-2) del conector. Después desconecte el conector de la bomba (FIG. 9-2). CONECTOR BOMBA Y MOTOR DESCONECTAR LAS MANGUERAS HIDRÁULICAS FIG. 9-2 © MAXON Lift Corp. 2021...
- Page 10 CONECTOR ensamble del limitador de fl ujo. CONEXIONES DEL TUBO CODO (2 LUGARES) CONEXIÓN DEL PUERTO DE LA BOMBA FIG. 10-1A CONECTAR EL KIT DEL LIMITADOR DE FLUJO FIG. 10-1 © MAXON Lift Corp. 2021...
- Page 11 FIG. 11-1 y la TABLA 11-1. AJUSTAR LOS CONECTORES FIG. 11-1 ART. DESCRIPCIÓN VALOR DEL TORQUE #6 JUNTA TÓRICA 22-24 lb-ft [29.8-32.5 Nm] #4 JIC 11-13 lb-ft [14.9-17.6 Nm] VALORES DEL TORQUE TABLA 11-1 © MAXON Lift Corp. 2021...
- Page 12 10. Atornille la cubierta al bastidor principal como se muestra en la FIG. 12-1. BASTIDOR PRINCIPAL CUBIERTA TUERCA HEXAGONAL Y ARANDELAS PLANAS (3 LUGARES) VOLVER A INSTALAR LA CUBIERTA FIG. 12-1 © MAXON Lift Corp. 2021...
