USE WITH :MOVE MINI

NOTE: This instruction book is for :MOVE mini Mk1. If you have a Mk2
:MOVE mini, visit www.kitronik.co.uk/5659-mk2.

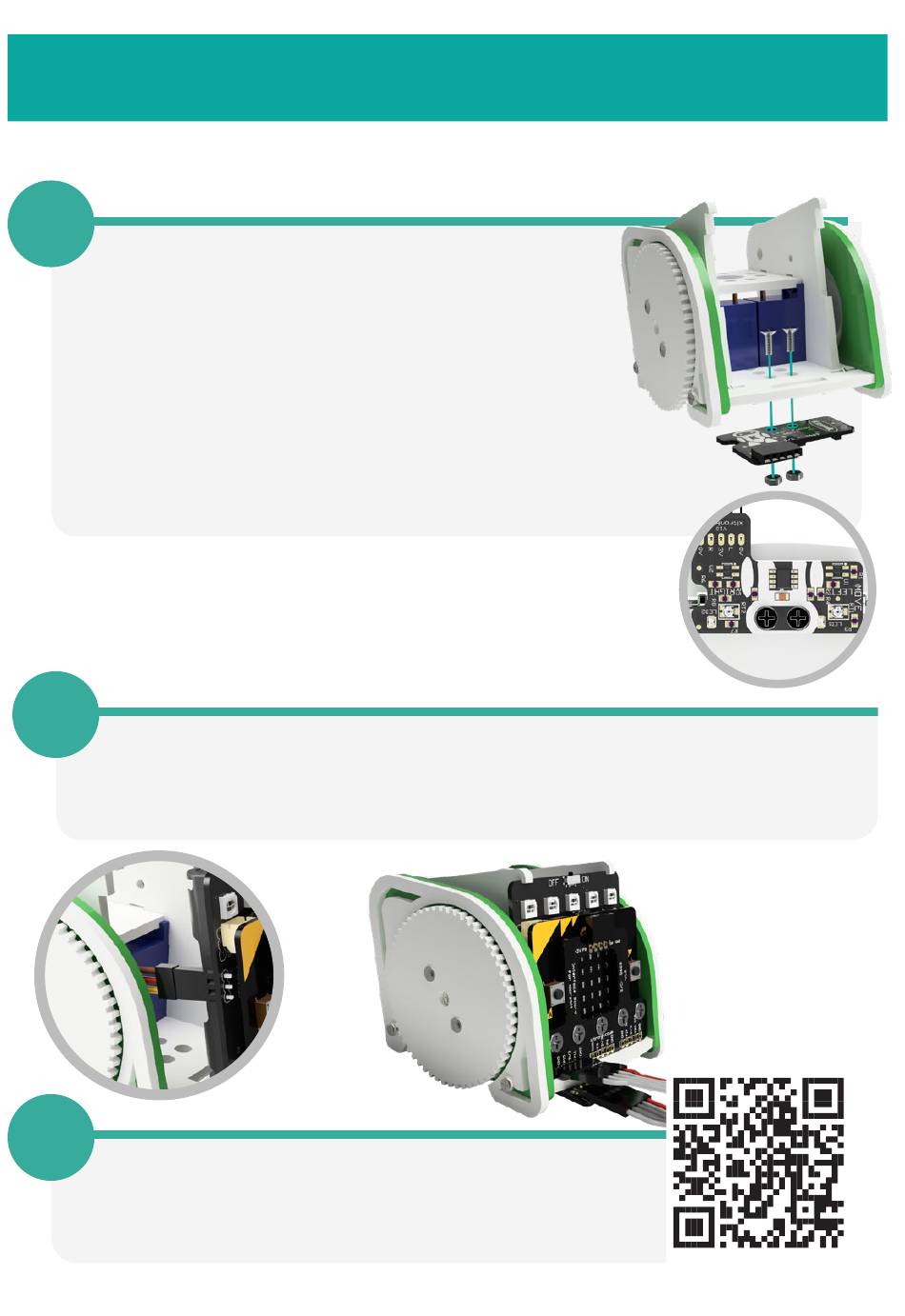

1
Remove both the front ':MOVE' piece
and the SERVO:lite board from the
:MOVE mini. Fix the Line Follow board to
the chassis using the two SHORTER M3
countersunk screws. Insert the screws
from above and fix in place with two M3
nuts. The remaining spacers, screws and
:MOVE panel are no longer needed.
NOTE: Make sure you use the board the
correct way up, with the larger Kit robot
visible from below and the pins pointing
out of the front of the :MOVE mini.
2
Connect the servos and install the Servo:Lite/Interface board
assembly into the :MOVE mini. Reconnect the cables, refer to
step 2 from the 'Build instructions' on the previous page.
3

GET CODING!

Visit kitronik.co.uk/5659 for help. See
the online datasheet for a tuning guide.
