Spool brake setting
Item Symbol
1
•
Tighten the Allen screw (8 mm) in the clockwise direction to increase the braking effect.
Tighten the spool brake until the wire spool no longer turns when the wire feed motor stops but
without it jamming during operation!
099-005401-EW501
17.06.2014
Description
0
Allen screw

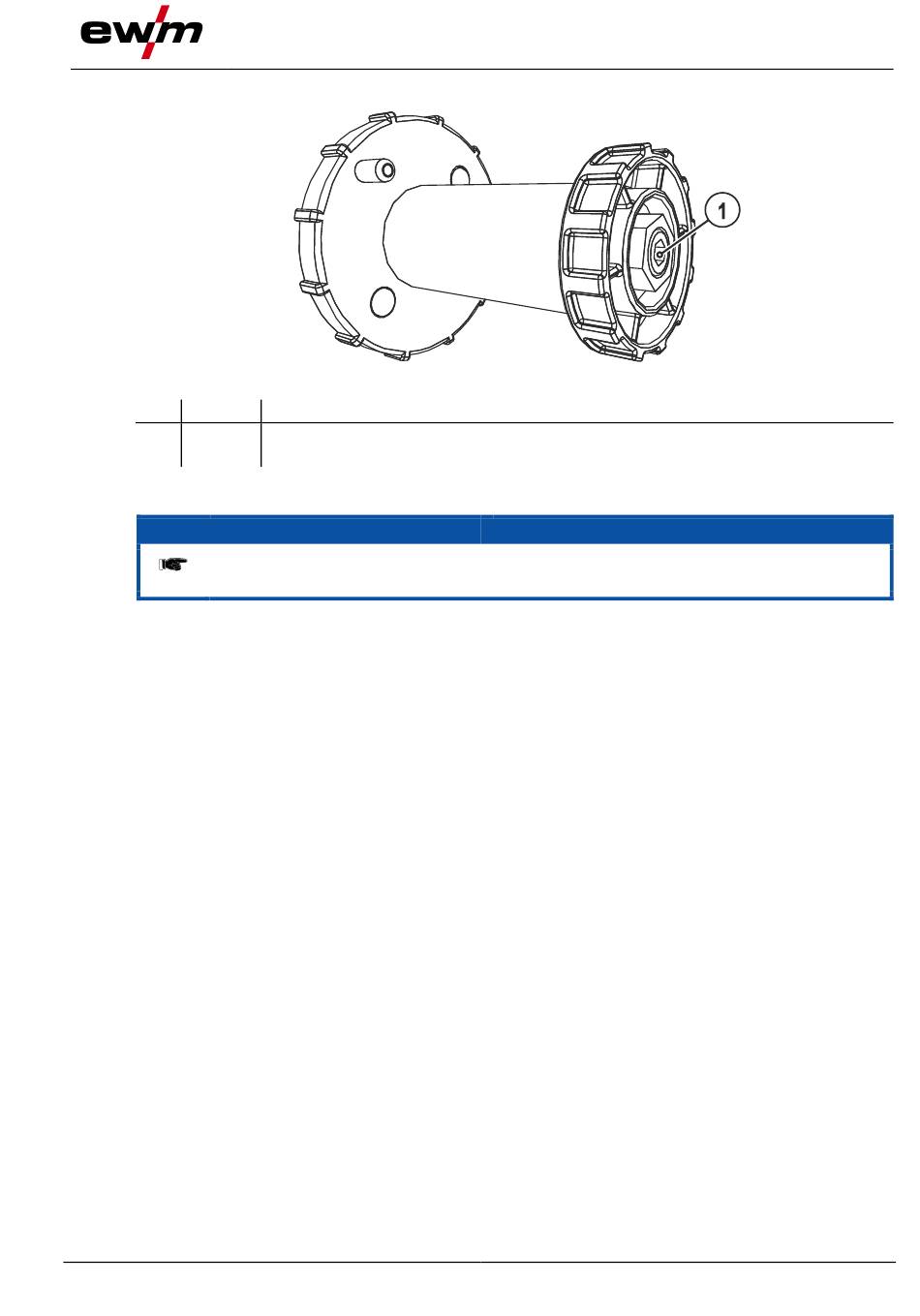

Securing the wire spool retainer and adjustment of the spool brake
Design and function
Figure 5-11
NOTE
MIG/MAG welding
35
