Planet POE-173S Manual

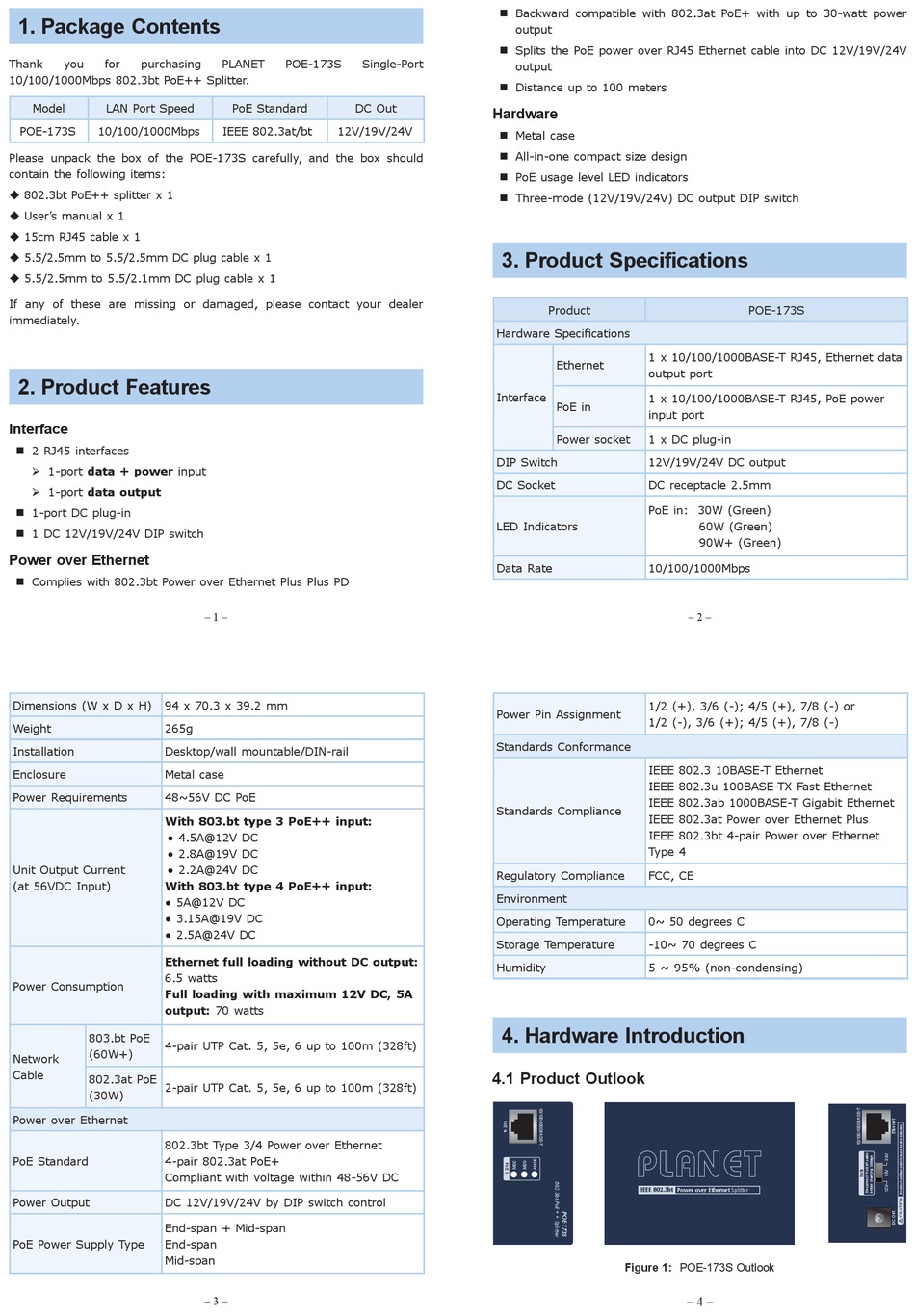

1. Package Contents

Thank you for purchasing
10/100/1000Mbps 802.3bt PoE++ Splitter.
Model LAN Port Speed
POE-173S 10/100/1000Mbps
Please unpack the box of the POE-173S carefully, and the box should
contain the following items:
 802.3bt PoE++ splitter x 1
 User's manual x 1
 15cm RJ45 cable x 1
 5.5/2.5mm to 5.5/2.5mm DC plug cable x 1
 5.5/2.5mm to 5.5/2.1mm DC plug cable x 1
If any of these are missing or damaged, please contact your dealer
immediately.

2. Product Features

Interface
 2 RJ45 interfaces
 1-port data + power input
 1-port data output
 1-port DC plug-in
 1 DC 12V/19V/24V DIP switch
Power over Ethernet
 Complies with 802.3bt Power over Ethernet Plus Plus PD
Dimensions (W x D x H) 94 x 70.3 x 39.2 mm
Weight 265g
Installation Desktop/wall mountable/DIN-rail
Enclosure Metal case
Power Requirements 48~56V DC PoE
With 803.bt type 3 PoE++ input:
● 4.5A@12V DC
● 2.8A@19V DC
Unit Output Current ● 2.2A@24V DC
(at 56VDC Input) With 803.bt type 4 PoE++ input:
● 5A@12V DC
● 3.15A@19V DC
● 2.5A@24V DC
Ethernet full loading without DC output:
6.5 watts
Power Consumption
Full loading with maximum 12V DC, 5A
output: 70 watts
803.bt PoE
4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
(60W+)
Network
Cable
802.3at PoE
2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
(30W)
Power over Ethernet
802.3bt Type 3/4 Power over Ethernet
PoE Standard 4-pair 802.3at PoE+
Compliant with voltage within 48-56V DC
Power Output DC 12V/19V/24V by DIP switch control
End-span + Mid-span
PoE Power Supply Type End-span
Mid-span
PLANET POE-173S Single-Port
PoE Standard DC Out
IEEE 802.3at/bt 12V/19V/24V
– 1 –
– 3 –
 Backward compatible with 802.3at PoE+ with up to 30-watt power
output
 Splits the PoE power over RJ45 Ethernet cable into DC 12V/19V/24V
output
 Distance up to 100 meters
Hardware
 Metal case
 All-in-one compact size design
 PoE usage level LED indicators
 Three-mode (12V/19V/24V) DC output DIP switch
3. Product Specifications
Product
Hardware Specifications
1 x 10/100/1000BASE-T RJ45, Ethernet data
Ethernet
output port
Interface
1 x 10/100/1000BASE-T RJ45, PoE power
PoE in
input port
Power socket 1 x DC plug-in
DIP Switch 12V/19V/24V DC output
DC Socket DC receptacle 2.5mm
PoE in: 30W (Green)
Led Indicators
Data Rate 10/100/1000Mbps
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or
Power Pin Assignment
1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Standards Conformance
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Standards Compliance
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet
Type 4
Regulatory Compliance FCC, CE
Environment
Operating Temperature 0~ 50 degrees C
Storage Temperature -10~ 70 degrees C
Humidity 5 ~ 95% (non-condensing)

4. Hardware Introduction

4.1 Product Outlook

IEEE 802.3bt
Figure 1: POE-173S Outlook
POE-173S
60W (Green)
90W+ (Green)
– 2 –
Power over Ethernet
Splitter
– 4 –
