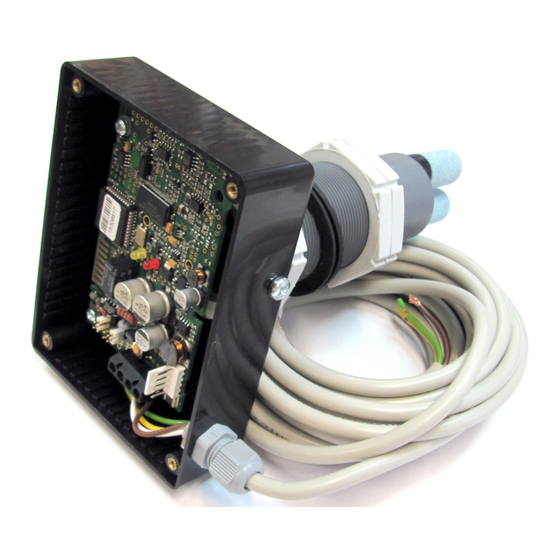

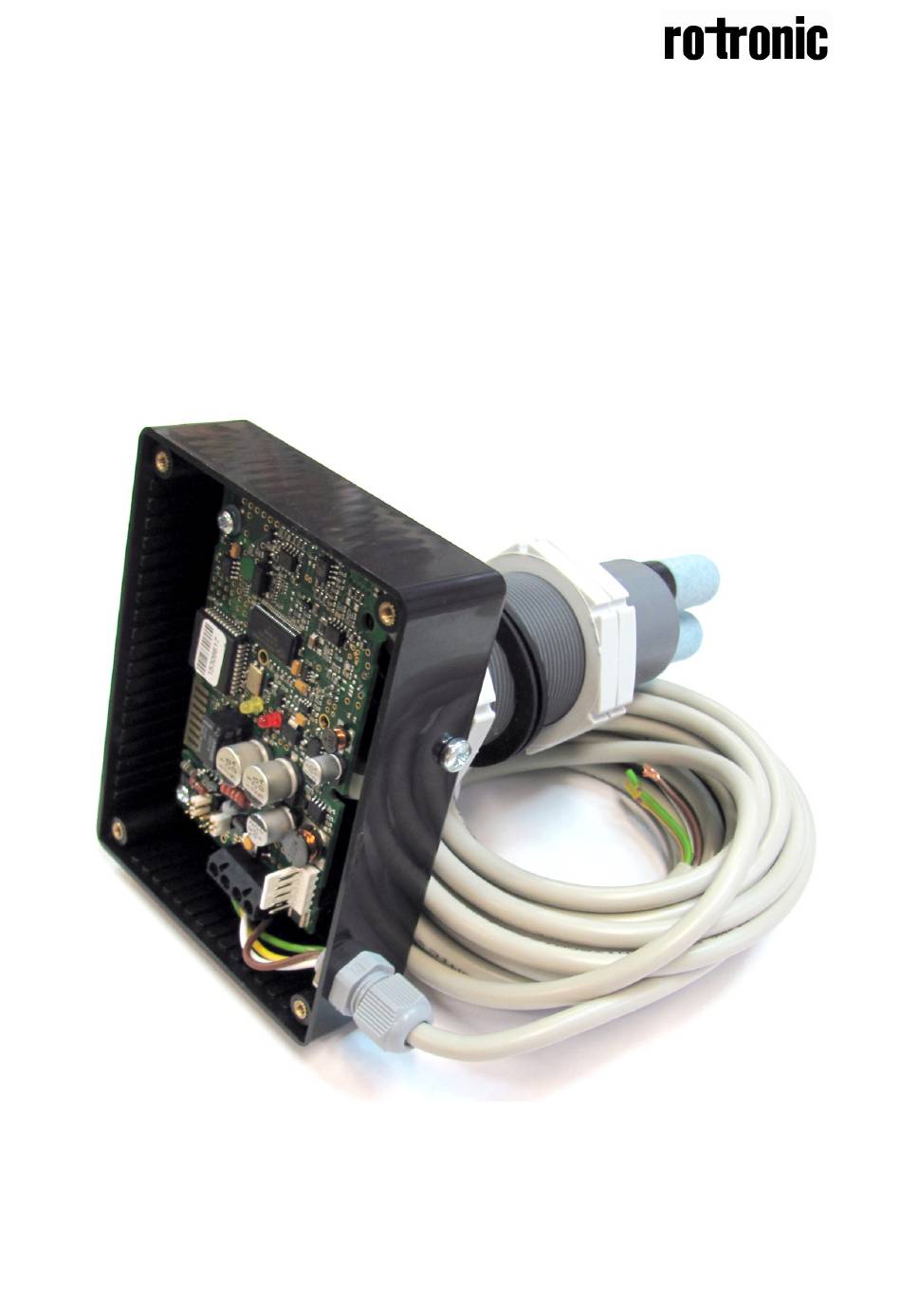

- Page 1 Installation manual CF8-D/W-IN General CF8-D/W-IN is used to measure the carbon dioxide concentration inside incubators. Dokument Page IMA 213 1 (3)
- Page 2 Figure 1. Terminals and jumpers on CF8-D/W-IN. The darker positions are default settings. The push button is for forcing a manual zero point calibration if the sensor does not enter the automatic zero calibration mode just by flowing zero gas.
-
Page 3: Electrical Connections
The power supply has to be connected to G+ and G0. G0 is considered as system ground. The same ground reference has to be used for the CF8-D/W-IN unit and for any connected device! Unless different transformers are used, special precautions need to be taken.
