2. Notes on installation (cont.)
Before starting the transmitter and receiver, you should check the electrical
q
connections.
Connection of the power cord should be made with the device powered off (a
q
power plug must be disconnected from the mains). Connection of the devices
with the mains plug of the controller plugged in creates an electric shock.
You must not use a damaged devices.
q
Note: The "room thermostat service" option must be turned on in
!
the programmer after the thermostat has been connected to the
boiler's programmer.

3. Description of the transmitter components - display

1
2
3
1. Flashing point indicating the current time
2. Indication of the option currently in use: AUTO, MANU, PROG
3. Indication of protection against freezing
4. Display of temperature or time
5. Indication of boiler operation
6. Indication of the lowered temperature (night mode)
7. Indication of the comfort temperature (day mode)
8. Graphic presentation of the selected program

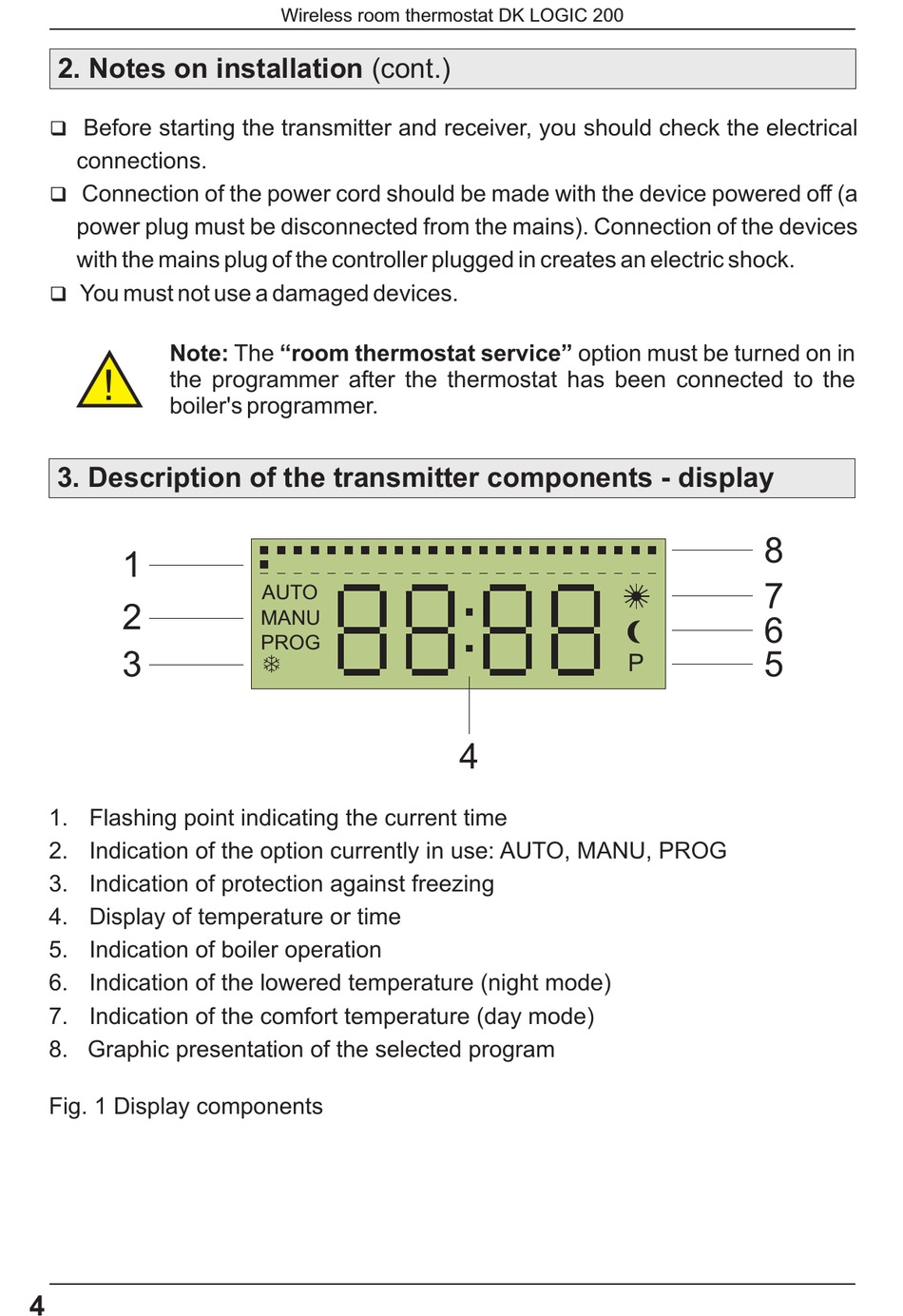

Fig. 1 Display components
4
Wireless room thermostat DK LOGIC 200
AUTO
MANU
PROG
T P
4
8
7
6
5
