Icron VU5363 Quick Start Manual

VU5363 HDMI® + USB 2.0 Extender
Local Extender
HDMI and USB 2.0 100m (330ft) CAT 5e/6/7 KVM Extender System

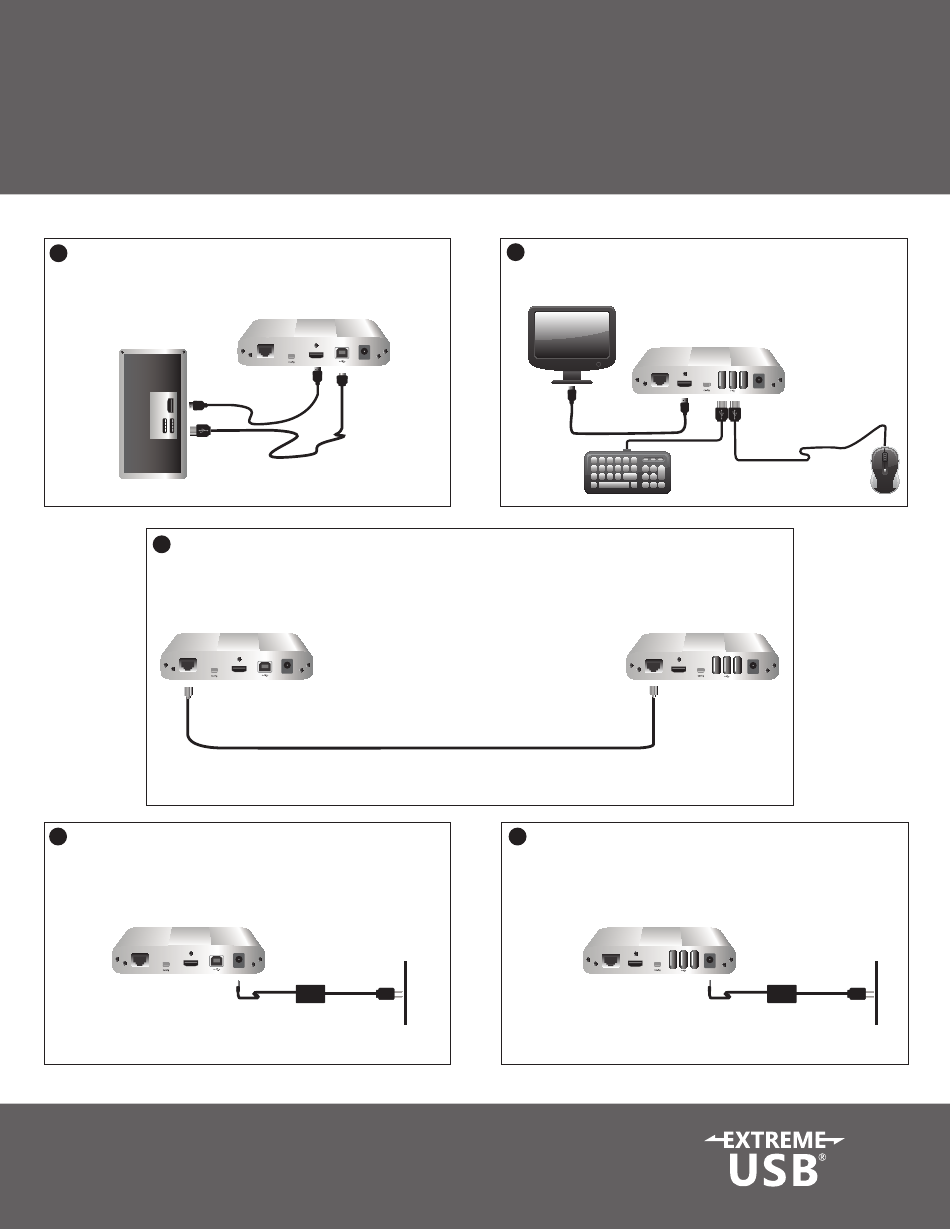

Quick Start Guide

Link
Using the included high quality HDMI and USB cables,
1
connect the Local Extender to a computer.
Computer
Directly connect the Local Extender to the Remote Extender with a CAT 5e/6/7 cable (not included).
3
Solid core Cat 6a/7 STP is recommended for best performance (refer to detailed cable information
on the back of this page).
Link
Power the Local Extender with the included 5V AC adapter.
4
Link HDMI In
HD Video + ExtremeUSB®
Front
Back
HDMI In
5V DC
Local Extender (rear view)
Link HDMI In
5V DC
HDMI In
5V DC
CAT 5e/6/7 Cable
Max. distance is 100m (330ft) between Local and Remote Extenders
5V DC
Remote Extender
Front
Back
Link HDMI Out
5V DC
Connect the Remote Extender to a monitor or TV with a
2
high quality HDMI cable (not included). Connect your USB
devices (e.g. keyboard and mouse) to the Remote Extender.
Remote Extender (rear view)
Link HDMI Out
Link HDMI Out
Power the Remote Extender with the included 5V AC
5
adapter.
Link
HDMI Out
HDMI In
5V DC
5V DC
5V DC
