Summary of Contents for Icron USB 2.0 Ranger 2101

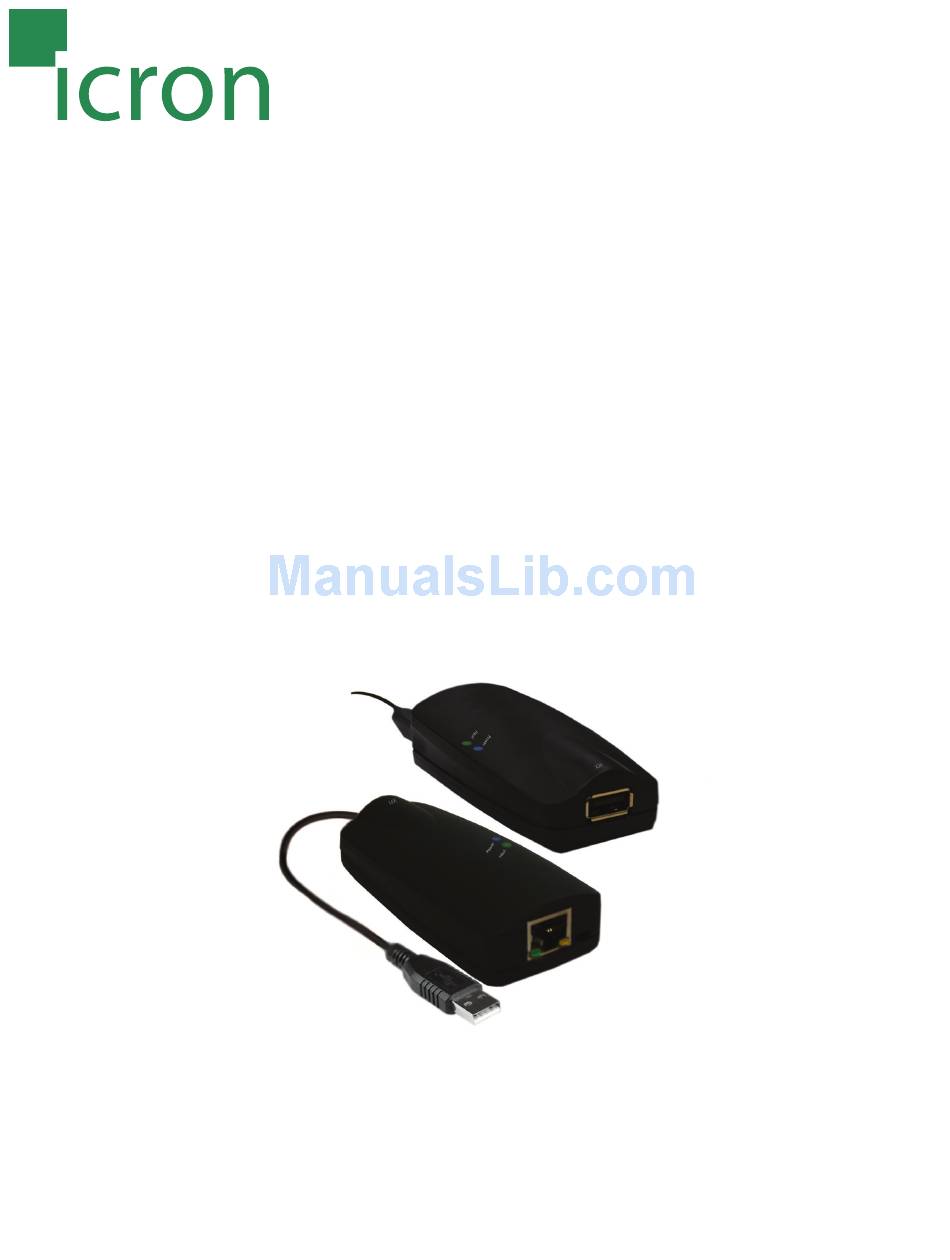

- Page 1 USB 2.0 Ranger® 2101 High Speed Extender System User Guide Powered by ExtremeUSB ®...
- Page 2 CE Statement We, Icron Technologies Corporation, declare under our sole responsibility that the Ranger, to which this declaration relates, is in conformity with European Standard EN 55022/A1 Class A, and EN 50082-1 (IEC 801-2, IEC 801-3, IEC 801-4) IC Statement This Class B digital apparatus complies with Canadian ICES-003.
-
Page 3: Table Of Contents
Contents Introduction ......................3 Ranger Product Contents ..................3 Requirements ......................... 3 About the Ranger ......................3 Installation guide ................6 Installing the LEX unit ....................6 Installing the REX unit ....................6 Connecting the LEX unit to the REX unit ............7 Checking the Installation .................. -
Page 4: Introduction
An additional DC power adapter may be purchased for the LEX unit in the event that your USB port can not supply note the required 500mA current. Please contact an Icron Sales representative for further details (See Page 15) Requirements To complete the installation, you will also require the following items that are not included with the product: •... - Page 5 The LEX unit The LEX unit connects to the computer using the attached USB cable. The unit is USB bus powered and does not require an external DC adapter. Back View Top View ITEM TYPE DESCRIPTION Power LED (Blue) Solid light when power is supplied. Off when no power is supplied. Solid green light when Host computer is detected and connected Host LED (Green) to LEX.
- Page 6 The REX Unit The REX unit provides a USB A connector for standard USB devices. The REX unit allows you to connect one USB device directly. Additional devices may be connected by joining the USB hubs to the REX unit. The REX unit is powered by an external DC adapter and can supply up to 500mA on the single USB port.
-
Page 7: Installation Guide
Installation guide Before you can install the Ranger 2101, you need to prepare your site. Determine where the computer is to be located and set up the computer. Determine where you want to locate the USB device(s). If you are using surface cabling, ensure you have enough Category 5e UTP cabling to connect the two locations to the maximum distance of 100m supported by device. -
Page 8: Connecting The Lex Unit To The Rex Unit
Connecting the LEX unit to the REX unit To ensure proper operation, it is recommend that only Category 5e or better, Unshielded Twisted Pair (UTP) cabling note be used to connect the LEX unit to the REX unit. The UTP cabling must have a straight-through conductor configuration with no crossovers, and must be terminated with 8 conductor RJ45 connectors at both ends. -
Page 9: Connecting A Usb Device
The Ranger 2101 complies with USB1.1 and USB 2.0 specifications governing the design of USB devices. Icron Technologies Corporation does not, however, guarantee that all USB devices are compatible with the Ranger as there are a number of different configurations that may impact the operation of USB devices over extended distances. - Page 10 PROBLEM CAUSE SOLUTION Link LED for RJ45 • The Host computer is not 1. Disconnect all USB devices from the REX unit. on LEX unit is on, powered on. Host LED on LEX 2. Disconnect the LEX unit from the computer. unit is off •...
-
Page 11: Specifications
Frequently Asked Questions Please visit Icron’s website for answers to FAQ’s: http://www.icron.com/products/usb/faq.php Specifications 100 meters over Category 5e UTP (or better) stranded or solid conductor Range cable High-speed devices (480 Mb/s) (USB 2.0) USB device support Full speed devices (12 Mb/s) (USB 2.0 & 1.1) Low speed devices (1.5 Mb/s) (USB 2.0 &... -
Page 12: Limited Hardware Warranty
Icron Technologies Corporation product or service, even if Icron Technologies Corporation, its suppliers or licensors have been advised of the possibility of such damages. -
Page 13: Obtaining Warranty Service
The repaired or replaced item will be shipped to you, at Icron Technologies Corporation’s expense, not later than thirty days after Icron Technologies Corporation receives the defective product. - Page 14 NOTES...
-
Page 15: Technical Glossary
Technical Glossary Category 5e (CAT5E) Network Cabling Category 5 cable is commonly also referred to as CAT5. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI). - Page 16 Icron Technologies Corporation 4664 Lougheed Highway, Suite 221 Burnaby, BC, V5C 5T5 Canada Tel: 1-604-638-3920 Fax: 1-604-638-3930 www.icron.com...
