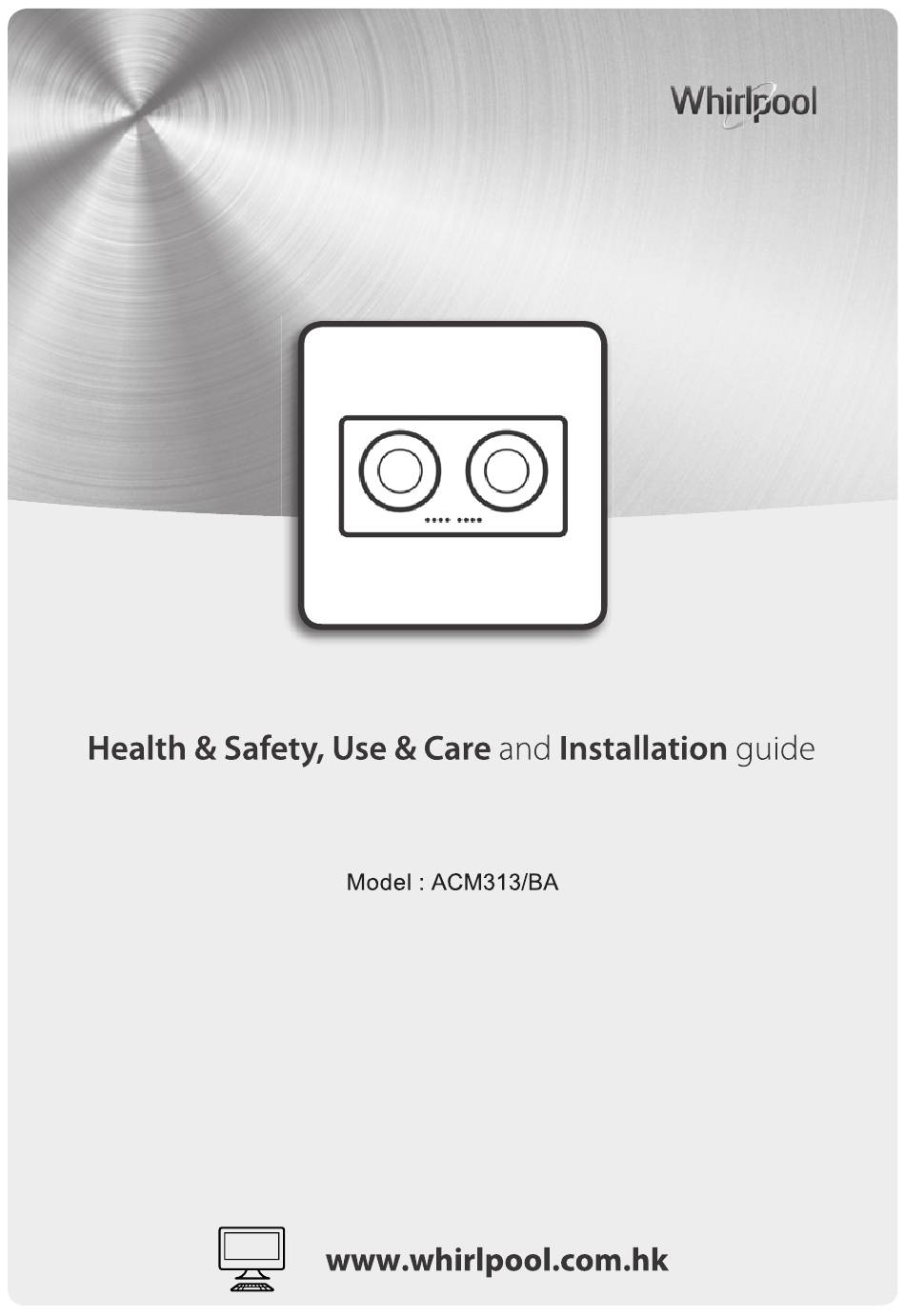

Whirlpool ACM313/BA Health & Safety, Use & Care And Installation Manual

Whirlpool ACM313/BA Health & Safety, Use & Care And Installation Manual


Quick Links


Table of Contents

Summary of Contents for Whirlpool ACM313/BA

  • Page 2 IMPOATANT SAFETY INSTRUCTIONS YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT Please read these instructions before installing and using your induction hob and keep it in an easily accessible place for future reference. All messages relevant to safety specify the potential risk to which they refer and indicate how to reduce the risk of injury, damage and electric shocks due to incorrect use of the appliance.
  • Page 3: Safeguarding The Environment

    Do not touch the appliance heating elements during and after use. Do not allow the appliance to come into contact with cloths or other flammable materials until all the components have cooled down completely. Do not place flammable materials on or near the appliance. Overheated oils and fats catch fire easily.
  • Page 4 Place the pot on the required cooking zone before switching the hob on. Installation After unpacking the product, check for any damage during transport. In case of problems, contact the dealer or Whirlpool Customer Service. PREPARING THE CABINET FOR FITTING Install a separator panel under the hob.
  • Page 5: Product Overview

    PRODUCT OVERVIEW Top View 1. No.1 zone / The left zone 2. No.2 zone / The right zone 3. Glass plate 4. Control panel Control Panel 1. Heating zone selection 2. Timer 3. Power / Timer control 4. Key lock 5.
  • Page 6: Before Using Your New Induction Hob

    BEFORE USING YOUR NEW INDUCTION HOB Read this guide, taking special note of the ‘IMPOATANT SAFETY INSTRUCTIONS’ section. Remove all packaging, protective film and securing tape from the appliance before use. Using The Touch Controls The controls respond to touch, so you don’t need to apply any pressure. Use the ball of your finger, not its tip to control the induction hobs.
  • Page 7: Using Your Induction Hob

    Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone or at least cover 80% of the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency.
  • Page 8 4. Choose the power level by touching “ ” or “ ” to adjust the different power from power level “1” to power level “ 9 ”. If the display flashes alternately with the heat setting This means that: you have not placed a pan on the correct cooking zone or, the pan you’re using is not suitable for induction cooking or, the pan is too small or not properly centered on the cooking zone.
  • Page 9: Over Temperature Protection

    Child Lock You can lock the controls to prevent accidental switching on . When the controls are locked, all the controls are disabled except the ON/OFF control. To activate the control panel lock functions Touch the keylock control. The timer indicator will show “ Lo ”. The control panel is locked.
  • Page 10: Auto Shutdown Protection

    Auto Shutdown Protection Auto shut down is a safety protection function for your induction hob. It shut down automatically after using a period of time for safety protection. The default working times for each power levels are shown in the below table: Power level Default working timer (hour)
  • Page 11: Power Management

    4. If you want to cancel booster function, touch the heating zone selection button first, an indicator next to the key will flash. And then touch the booster button. The heating zone will go back to the power stage which was set before turning on booster function.
  • Page 12 3. Set the time by touching the “ ” or “ ” control. Hints: Touch the “ ” or “ ” control once to decrease or increase by 1 minute. Touch and hold the “ ” or “ ” control of the timer to decrease or increase by 10 minutes.
  • Page 13 4. When the time is set, it will begin to count down. The display will show the remaining time and timer indicator flash for 5 seconds. NOTE: The red dot next to power level indicator will turn on indicating that zone is selected. 5.
  • Page 14: Power Settings

    If you want to check the set time of other heating zone, touch the heating zone selection control. The timer will indicate its set time. 2. When cooking time expires, the corresponding heating zone will be switched off automatically. NOTE: If you want to change the time after the timer is set, you have to start from step 1.
  • Page 15: Care And Cleaning

    CARE AND CLEANING Important! What? How? • When the hob’s power is switched off, the residual heat indicator will not work but the cooking zone may still be hot! Take extreme care.  Do not use abrasive sponges or scouring pads. Their use could 1.
  • Page 16: Hints And Tips

    HINTS AND TIPS Problem Possible Causes What To Do Make sure the induction hob is connected to the power supply and that it is switched The induction hob on. Check whether there is a cannot be turned No power supply. power outage in your home or area.
  • Page 17 The induction hob cannot detect the pan because it is not suitable for induction Use cookware suitable for cooking. Pans do not induction cooking. See section ‘Choosing The Right Cookware’. become hot and appears in the Centre the pan and make sure The induction hob cannot display.
  • Page 18: Troubleshooting Guide

    High temperature of the IGBT Please restart after the hob temperature sensor. cools down. TECHINCAL SPECIFICATION Model ACM313/BA Cooking Zones 2 Zones Supply Voltage, Frequency 220-240V~, 50/60Hz Rating Power 2300-3000W Product Size L×W×H 700*400*40mm Cut-out size A×B...
  • Page 19: Installation

    INSTALLATION This induction hob can be used as freestanding hob or built-in hob. A. Use as Freestanding Hob If you use it as freestanding hob, you need to install four plastic feet to the back of bottom case. 1. 4 plastic foot and screws are supplied with the hob. 2.
  • Page 20 B. Use as Built-in Hob If you use it as Built-in Hob, you don’t need to install plastic feet. 1. Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole.
  • Page 21 Under any circumstances, make sure the induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state as shown below. Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
  • Page 22 Before Locating The Fixing Brackets The unit should be placed on a stable, smooth surface. Do not apply force onto the controls protruding from the hob. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.
  • Page 23: Connecting The Hob To The Mains Power Supply

    Before you install the hob, make sure that The work surface is level the work surface is made of a heat-resistant material. If the hob is installed above an oven, the oven has a built-in cooling fan the installation will comply with all clearance requirements and applicable standards and regulations.
  • Page 24 Check with an electrician whether the domestic wiring system is suitable without alterations. This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
