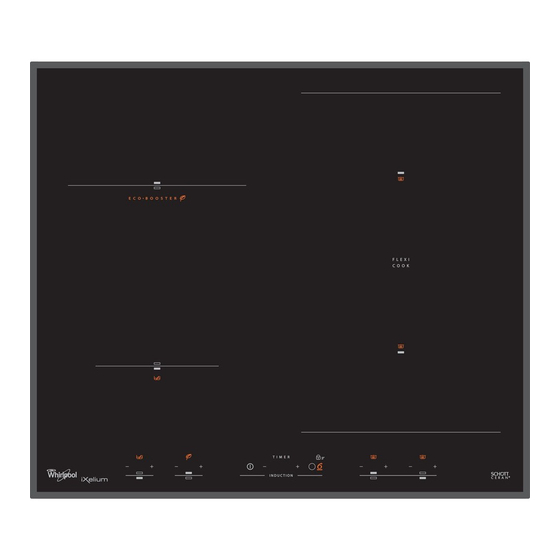

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Whirlpool ACM 867/ BA/IXL o cerca il tuo prodotto tra le migliori offerte di Cucine e Piani cottura Instructions for use Uputstva za upotrebu Bedienungsanleitung Notice d'utilisation Navodila za uporabo Пайдалану...
Page 3
ENGLISH Installation Page 8 Instructions for use Page DEUTSCH Installation Seite 17 Bedienungsanleitung Seite FRANÇAIS Installation Page 27 Mode d’emploi Page PORTUGUÊS Instalação Página 35 Instruções de utilização Página ΕΛΛΗΝΙΚΑ Εγκατάσταση Σελίδα 45 Οδηγίες χρήσης Σελίδα SRPSKI Montaža Strana 54 Uputstvo za upotrebu Strana SLOVENSKO...
Page 4
R = Min. 6,5 mm Max. 8 mm Min. 50 mm R = 11,5 mm 483 mm 490 mm 560 mm R = 11,5 mm 6 mm R = Min. 6,5 mm Max. 8 mm R = Min. 6,5 mm Max.
Page 5
Min. 10 cm Min. 5 mm Min. 5 mm Min. 3 cm Max. 6 cm...
Instructions for use Page IMPORTANT SAFETY INSTRUCTIONS These instructions shall also be available on website: www.whirlpool.eu YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT This manual and the appliance itself provide important safety messages, to be read and always observed.
- Do not touch the appliance heating elements during and after use. Do not allow the appliance to come into contact with cloths or other flammable materials until all the components have cooled down completely. - Do not place flammable materials on or near the appliance. - Overheated oils and fats catch fire easily.
EXISTING POTS AND PANS Use a magnet to check if the pot is suitable for the induction hob: pots and pans are unsuitable if not magnetically detectable. Make sure pots have a smooth bottom, otherwise they could scratch the hob. Check dishes. Never place hot pots or pans on the surface of the hob’s control panel.
Page 9
Connection to the terminal block For the electrical connection, use an H05RR-F or H05V2V2-F cable as specified in the table below. Wires Number x size 380-415 V 3N ~ 220-240 V ~ 220-240 V ~ (AU and UK) 220-240 V ~ + 3 x 4 mm 220-240 V 3 ~ + 4 x 1.5 mm...
Page 10
Switching the hob ON/OFF To switch the hob on, press the button for approx. 2 seconds until the cooking zone displays light up. To switch off, press the same button until the displays switch off. All the cooking zones are deactivated If the hob has been in use, the residual heat indicator “H”...
Page 11
Simmering After bringing to the boil, press the key and the hob will automatically set the correct power level to keep the pot simmering. “A” appears on the display: the indicator light lights up. To deactivate the function, simply press button.
Page 12
Activation/deactivation of the acoustic signal After switching the hob on, press and hold the “-” of the first cooking zone and the external button on the right simultaneously for at least five seconds (“as shown below”). . 5 Sec Flexi cook Where present, this function allows the cooking zone to be used as two separate zones or as a single extra large zone.
Whirlpool finishing that guarantees a perfect clean and a long-lasting brilliance. Therefore, if you have a IXELIUM hob, we strongly suggest to observe the following cleaning recommendations: •...
POWER LEVEL TABLE Power level Type of cooking Level use (indicating cooking experience and habits) Ideal for rapidly increasing the temperature of food to fast boiling in the case of water or rapidly Boost Fast heating heating cooking liquids Max. power Ideal for browning, starting to cook, frying deep frozen products, fast boiling Frying - boiling Ideal for sautéing, maintaining a lively boil, cooking and grilling (for a short period of time,...
