Summary of Contents for Jocel JCHTV–100

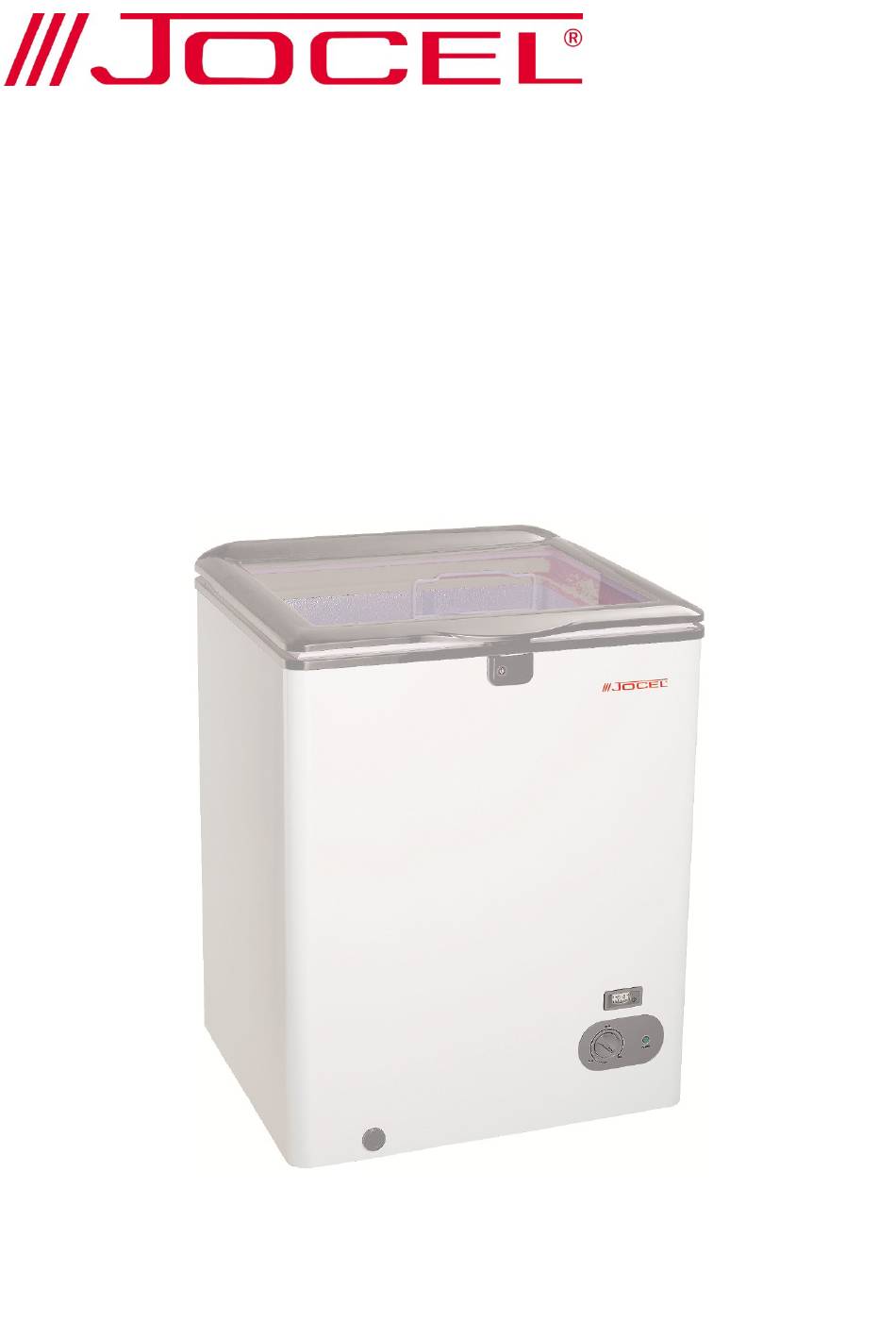

  • Page 1 CONGELADOR HORIZONTAL HORIZONTAL FREEZER JCHTV–100 MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL...
  • Page 2 PORTUGUÊS TRANSPORTE E INSTALAÇÃO ● Sempre que transportar o congelador, a sua inclinação não deve ser superior a 45 °, para evitar danos no compressor ou no sistema. ● Quando for utilizado, retire todos os materiais de embalagem. A parte de trás e ambos os lados do congelador devem ficar afastados da parede pelo menos 20 cm.
  • Page 3: Controlo Da Temperatura

    CONTROLO DA TEMPERATURA A temperatura é controlada através do termóstato, que se encontra no painel frontal do congelador. ORIFICIO DE DRENAGEM Para uma fácil drenagem da água, durante o processo de descongelamento. Aconselhamos que descongele o congelador uma ou duas vezes por ano. TERMOSTATO ORIFICIO PARA...
  • Page 4 ATENÇÃO: NÃO COLOCAR ALIMENTOS NO CONGELADOR ATÉ ESTE ALCANÇAR A CONGELAÇÃO MÁXIMA OU SEJA APÓS 3-4 HORAS DE TER SIDO LIGADO COM O TERMOSTATO NA POSIÇÃO MÁXIMA. ARMAZENAMENTO DE ALIMENTOS ● Tem de haver espaço entre os alimentos e entre os alimentos e as paredes interiores do congelador, para que seja assegurada uma boa ventilação de ar frio e uma congelação uniforme.
  • Page 5: Resolução De Problemas

    RESOLUÇÃO DE PROBLEMAS Problema Causa Método de remoção A luz verde não está ligada. A ficha não está bem ligada à tomada. Volte a ligar. O compressor não inicia Não há energia. Ligue a uma tomada com energia A luz verde está ligada mas o compressor não funciona e só...
  • Page 6: Condições Gerais De Garantia

    7. Esta garantia cessa no momento em que se constate terem sido efectuadas reparações, alterações ou quaisquer intervenções por pessoa não autorizada pela JOCEL. A GARANTIA CADUCA 1. Com a modificação ou desaparecimento da chapa de identificação do aparelho.
  • Page 7: Declaração De Conformidade

    Rua Alto do Curro, n.º 280 4770-569 S. COSME DO VALE V.N. de FAMALICÃO Telef: 252 910 350/2 Fax: 252 910 368/9 email: jocel@jocel.pt http://www.jocel.pt DECLARAÇÃO DE CONFORMIDADE Declaramos sobre nossa própria responsabilidade que o aparelho indicado abaixo Aparelho CONGELADOR HORIZONTAL...
  • Page 8: Transporte E Instalación

    ESPAÑOL TRANSPORTE E INSTALACIÓN ● Cuando se transporta el Congelador, su inclinación no debe ser superior que 45 °, para evitar daños en el compresor o en el sistema. ● Cuando es puesto en marcha, retírele todos los materiales del embalaje. La parte trasera y los laterales del Congelador deben estar por lo menos a 20 cm lejos de la pared.
  • Page 9: Regular La Temperatura

    REGULAR LA TEMPERATURA La temperatura se controla por ajuste del termostato, situado en el panel frontal del congelador. ORIFICIO DESAGÜE Para un fácil desagüe del agua durante el proceso de descongelación. Le aconsejamos que descongele el congelador una vez por año. ORIFICIO TERMOSTATO DESAGUE...
  • Page 10 ATENCIÓN: NO COLOCAR ALIMENTOS EN LO CONGELADOR HASTA ESTE ALCANZAR LA CONGELACIÓN MÁXIMA, TRAS 3-4 HORAS DE SER CONECTADO CON EL TERMOSTATO EN LA POSICIÓN MAXIMA. ALMACENAJE DE LOS ALIMENTOS ● Debe haber espacio entre los alimentos y las paredes interiores del Congelador, para que sea asegurada una buena ventilación de aire frío y una congelación uniforme.
  • Page 11: Resolución De Problemas

    RESOLUCIÓN DE PROBLEMAS Problema Causa Método de remoción La luz verde no está encendida. El enchufe no está bien conectado a la toma. Vuelva a conectar. El compresor no inicia No hay energía. Conecte a una toma con energía La luz verde está encendida pero el compresor no funciona y solo hace un La tensión es inferior que 187V.
  • Page 12: Condiciones De Garantia

    6. La garantía no cubre lesiones personales o daños causados directa o indirectamente. 7. Esta garantía termina cuando se descubre que han sido sometidas a reparaciones, reformas o intervenciones por cualquier persona no autorizada por JOCEL. LA GARANTIA TERMINA: 1. Con la modificación o desaparecimiento de la placa de identificación del aparato.
  • Page 13: Declaración De Conformidad

    SEDE: Rua Alto do Curro, n.º 280 4770-569 S. COSME DO VALE V.N. de FAMALICÃO Telef: 252 910 350/2 Fax: 252 910 368/9 email: jocel@jocel.pt http://www.jocel.pt DECLARACIÓN DE CONFORMIDAD Declaramos bajo nuestra responsabilidad que el aparato abajo Aparato CONGELADOR HORIZONTAL...
  • Page 14 ENGLISH TRANSPORTATION AND PLACEMENT  When transporting the freezer, the inclination of the cabinet should not exceed 45 degrees, for prevention against compressor or system damage.  Before use, remove all the packing material. The back side of the cabinet should be more than 20cm away from the wall;...
  • Page 15: Temperature Regulation

    TEMPERATURA CONTROL The temperature is controlled by thermostat setting, which is located on the front panel of the freezer. DRAIN HOLE For an easy draining of the defrosting water. We advise you to defrost the freezer once or two times a year. DRAIN HOLE THERMOSTAT TEMPERATURE REGULATION...
  • Page 16: Food Storage

    CAUTION: DO NOT PUT FOOD IN THIS FREEZER UNTIL THE MAXIMUM FREEZING IS ACHIEVED, AFTER 3-4 HOURS OF BEEING CONNECTED WITH THE THERMOSTAT TO THE MAXIMUM POSITION. FOOD STORAGE  There must be space between the foods stored in the cabinet, between the foods and the inner surface of the cabinet, so as to keep good ventilation of cold air and freeze evenly.
  • Page 17: Troubleshooting

    TROUBLE SHOOTING Breakdown Case Removal method The plug isn’t connected to Replug it. The indicator is not on. socket really. The compressor doses not start. no power Connect the socket with power. The indicator is on ,but the com- pressor doesn’t work and buzzes The power voltage is<187V.
  • Page 18: General Warranty Terms

    7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel. THE WARRANTY EXPIRES 1. With the modification or disappearance of the nameplate of the appliance.
  • Page 19: Declaration Of Conformity

    Rua Alto do Curro, n.º 280 4770-569 S. COSME DO VALE V.N. de FAMALICÃO Telef: 252 910 350/2 Fax: 252 910 368/9 email: jocel@jocel.pt http://www.jocel.pt DECLARATION OF CONFORMITY We declare on our own responsibility that the machine indicated below Product...
