INSTRUCTIONS
CX43-RFAB
B excitation fluorescence illuminator
This instruction manual is for the B excitation fluorescence illuminator.
Optical Microscope Accessory
To ensure the safety, obtain optimum performance and to familiarize yourself fully with the use of this
product, we recommend that you study this manual thoroughly before operating this product, and
always keep this manual at hand when operating this product.
Retain this instruction manual in an easily accessible place near the work desk for future reference.
A X 8 9 1 6
Advertisement
Table of Contents
Related Manuals for Olympus CX43-RFAB
Summary of Contents for Olympus CX43-RFAB
- Page 1 INSTRUCTIONS CX43-RFAB B excitation fluorescence illuminator This instruction manual is for the B excitation fluorescence illuminator. Optical Microscope Accessory To ensure the safety, obtain optimum performance and to familiarize yourself fully with the use of this product, we recommend that you study this manual thoroughly before operating this product, and always keep this manual at hand when operating this product.
- Page 2 Refer to your local Olympus distributor in EU for return and/or collection systems available in your country. NOTE: This product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
CX43-RFAB Contents Introduction ............................... Safety precautions ..........................1 Nomenclature of microscope operating portions ..........2 Reflected fluorescence observation method ............3 Operation procedures ........................ Operating the B excitation fluorescence illuminator ....................8 Escaping the condenser top lens ............................9 4 Assembly ..............................Attaching the B excitation fluorescence illuminator ....................10 Connecting the AC adapter and power cord ........................11... -
Page 5: Introduction

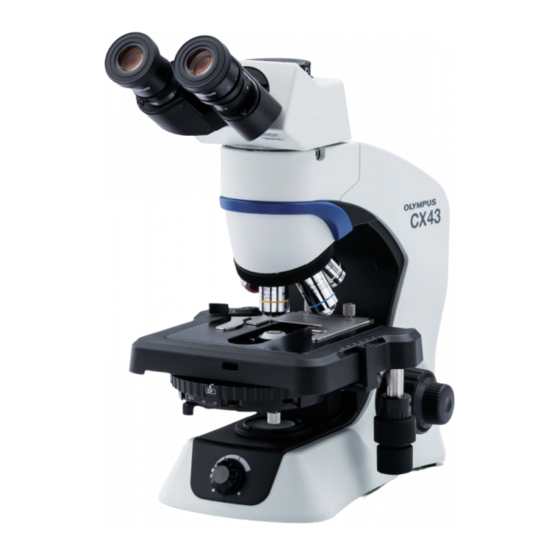

CX43-RFAB Introduction This product is used for a reflected light fluorescence observation in combination with the biological microscope CX43. If the product is used in a manner not specified by this manual, the safety of the user may be imperiled. In addition, the product may also be damaged. -
Page 6: Safety Precautions
Safety precautions CAUTION - Electric safety - Always use the AC adapter and power cord provided by Olympus. If the proper AC adapter and the power cord are not used, the electric safety and the EMC (Electro-Magnetic Compat- ibility) performance of the product cannot be assured. If no power cord is provided, please select the proper power cord by referring to the section “Proper selection of the power cord”... - Page 7 CX43-RFAB CAUTION - LED (light emitting diode) - Do not look directly at the light from LED for a long time. If you feel that the light from LED is too bright during observation, adjust the light intensity using the brightness adjustment knob before continuing the observation.
- Page 8 CAUTION - Safety symbols - The following symbols are attached to the product. Study the meaning of the symbols and always use the product in the safest possible manner. Symbol Meaning Indicates a non-specific general hazard. Follow the description given after this symbol or in the instruction manual.
- Page 9 Do not use organic solvents because they may deteriorate the coated surface or plastic parts. NOTE 3. When disposing of this product, be sure to follow the regulations and rules of your local government. Contact Olympus for any questions.
-
Page 10: Nomenclature Of Microscope Operating Portions
Nomenclature of microscope operating portions The number indicating the operation portion corresponds to the observation method described on the next page. Binocular portion B excitation fluorescence illuminator (see page 8) Diopter adjustment ring Revolving nosepiece Condenser top lens Main switch Main switch (see page 9) Specimen holder... -
Page 11: Reflected Fluorescence Observation Method
CX43-RFAB Reflected fluorescence observation method For reflected fluorescence observation, the B excitation fluorescence illuminator is necessary. (For attaching procedures, see “4 Assembly” on page 10.) If the analyzer for simple polarization and the polarizer are engaged in the light path, remove them from the light path. -
Page 12: Operation Procedures
Operation procedures Operating the B excitation fluorescence illuminator For attaching and removing the B excitation fluorescence illuminator, see page 10. Set the main switch of the B excitation fluorescence illuminator to (ON). When the B excitation fluorescence illuminator is not in use, slide it in the arrow direction until it touches the end to remove it from the light path. -
Page 13: Escaping The Condenser Top Lens
CX43-RFAB Escaping the condenser top lens During fluorescence observation, when the background light of the field of view becomes darker, the contrast of the fluorescence observation image is improved. If the condenser turret is set to FL (fluorescence observation), the background light of the field of view can be darker than that of other turret positions. If you want to make the background light of the field of view darker effectively, escape the condenser top lens from the light path. -
Page 14: 4 Assembly
Assembly Attaching the B excitation fluorescence illuminator Be sure to set the main switch of the B excitation CAUTION fluorescence illuminator to (OFF) before attaching or removing the B excitation fluorescence illuminator. Remove the cover plate for insertion portion of the fluorescence illuminator by inserting the flathead screwdriver into the notch Be sure to store the cover plate in a safe place. -
Page 15: Connecting The Ac Adapter And Power Cord
CX43-RFAB Connecting the AC adapter and power cord Always use the AC adapter and power cord provided by Olympus. If the proper AC adapter and the CAUTION power cord are not used, the electric safety and the EMC (Electro-Magnetic Compatibility) performance of the product cannot be assured. -
Page 16: Attaching The Hook Stick Holder
Attaching the hook stick holder · It is recommended to attach the provided hook stick holder to the back of the microscope frame. · The provided hook stick can be fixed to the provided hook stick holder... -
Page 17: Specifications
CX43-RFAB Specifications Item Specification Light source Blue LED (470nm) Body portion (rated input power): 5 V 0.85 A AC adapter (rated input power): 100-240 V 50-60 Hz 0.4 A Rating AC adapter (rated output power): 5 V 2.5 A Dimension... - Page 18 If no power supply cord is provided, please select the proper power supply cord for the equipment by referring to “Speci- fications” and “Certified Cord” below: Caution : In case you use a non-approved power supply cord for Olympus products, Olympus can no longer war- rant the electrical safety of the equipment.
- Page 19 CX43-RFAB Table 1 Certified cord A power supply cord should be certified by one of the agencies listed in Table 1 , or comprised of cordage marked with an agency marking per Table 1 or marked per Table 2. The fittings are to be marked with at least one of the agencies listed in Table 1.
- Page 20 Certification mark Country Agency Country Agency Certification mark Finland Switzerland United ASTA France Kingdom Germany U.S.A. Ireland NSAI...
- Page 21 CX43-RFAB Table 2 HAR flexible cord Approval organizations and cordage harmonization marking methods Alternative marking utilizing Printed or embossed harmoniza- black-red-yellow thread (Length tion marking (May be located on Approval organization of color section in mm) jacket or insulation of internal...
- Page 22 Alternative marking utilizing Printed or embossed harmoniza- black-red-yellow thread (Length tion marking (May be located on Approval organization of color section in mm) jacket or insulation of internal wiring) Black Yellow Danmarks Elektriske Materialkontroll <DEMKO> <HAR> (DEMKO) National Standards Authority of Ireland <NSAI>...
- Page 24 Manufactured by Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan Distributed by 48 Woerd Avenue Waltham, MA 02453, U.S.A. 8F Olympus Tower, 446 Bongeunsa-ro, Gangnam-gu, Seoul, 06153 Korea Distributor Tengrant Inc. Tel.: +86(021)5428 6005 Fax: +86(021)5428 6005-8002 www.tengrant.com AX8916 02...
