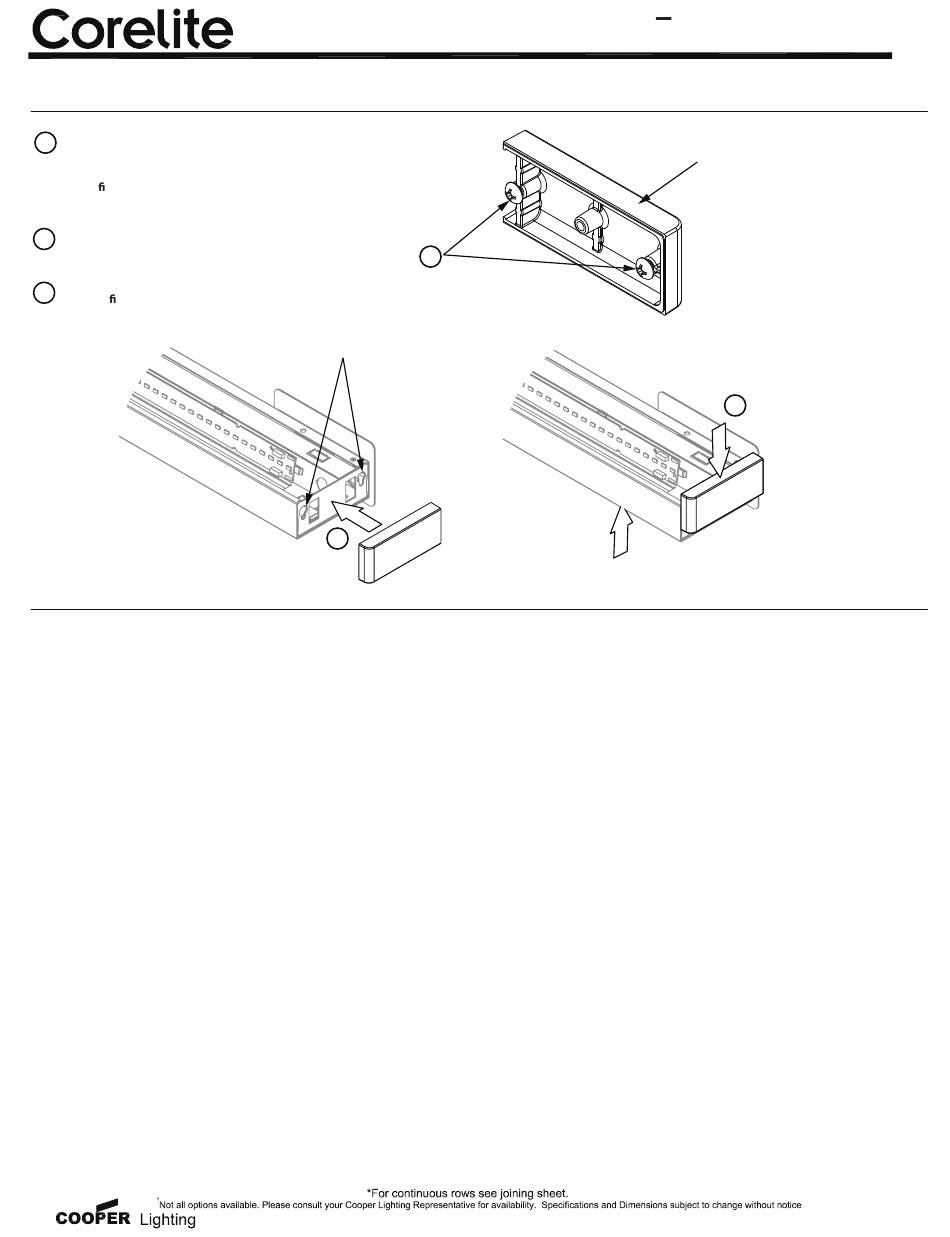

INSTALLING END CAPS
1
Install provided fasteners fully, then back out 1/4 turn.
Loosen or Tighten as necessary to ensure a
tight t when END CAP is installed.
2
Fit END CAP fasteners into KEYHOLE SLOTS.
Press END CAP downward to snap into position.
3
Ensure xture is securely supported while
installing END CAP.
1
KEYHOLE SLOTS
2
- THIS SPACE INTENTIONALLY LEFT BLANK -
JAYLUM INSTALLATION
WALL LED Luminaire
END CAP
3
SUPPORT FIXTURE
ADE130028
