SAVE THESE INSTRUCTIONS
WARNINGS
1) WARNING! – Risk of Fire/Electric Shock. Disconnect power at fuse or circuit breaker before installing or servicing.
2) WARNING! – Risk of Fire/Electric Shock. If not qualifi ied, consult an electrician.
3) WARNING! – Avoid contact with LED modules.
NOTES
1) NOTE! – This product must be installed in accordance with local/ national electrical codes.
2) NOTE! – Only those open holes indicated in the photographs and/or drawings may be made or altered as a result of kit installation. Do not leave any other open holes in an
enclosure of wiring or electrical components.
3) NOTE! – To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or any sharp objects.
4) NOTE! – Disconnect all power before proceeding.

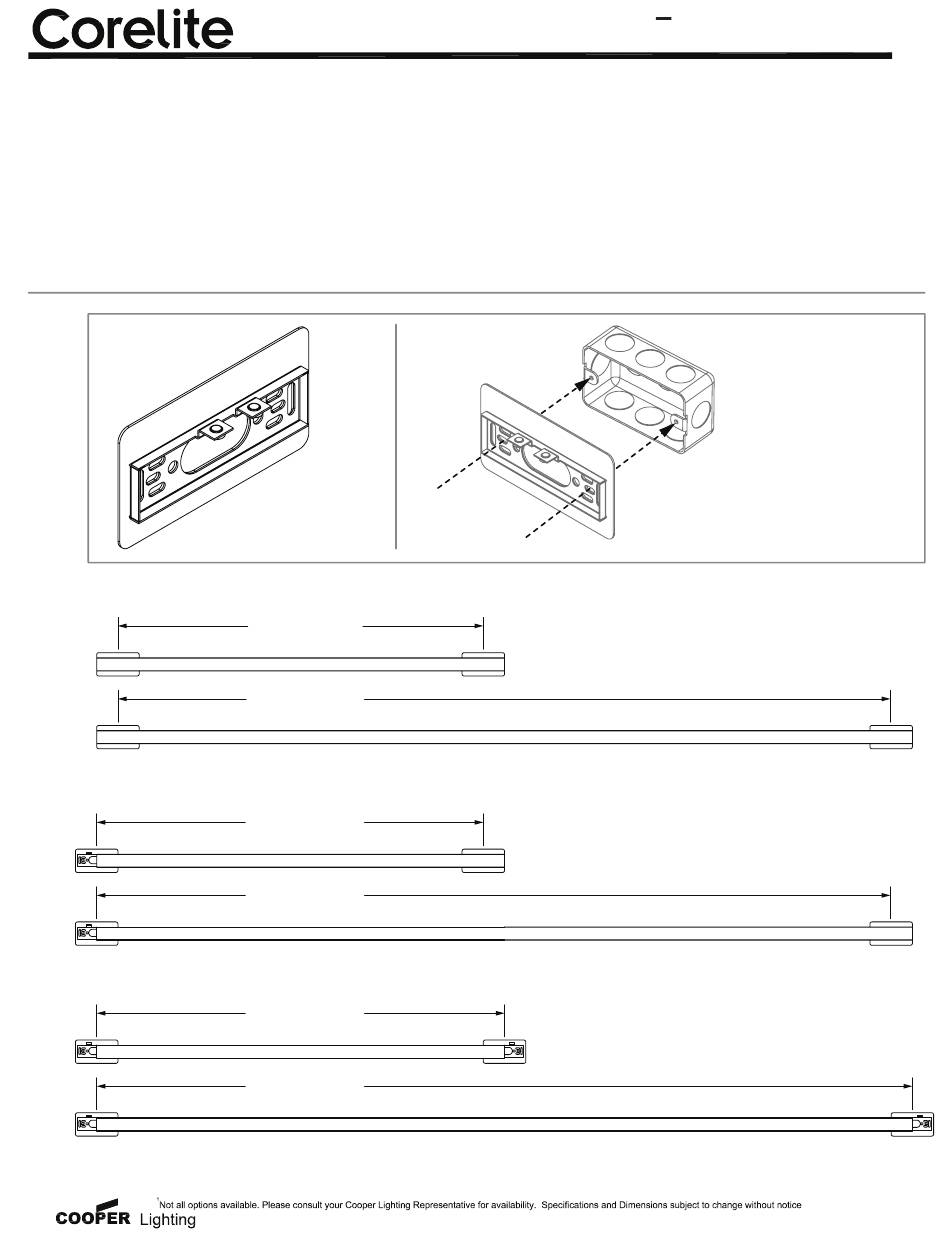

INSTALLATION OF MOUNTING BRACKETS
Mounting For Single Fixture
4'
8'
Mounting For Beginning or End Of Row
4'
8'
Mounting For Middle Of Row
4'
8'
MOUNTING BRACKET
43.0" [1092 mm]
91.0" [2311 mm]
45.5" [1156 mm]
93.5" [2375 mm]
48.0" [1219 mm]
96.0" [2438 mm]
JAYLUM
WALL LED Luminaire
END
INSTALLATION
USE ONLY HORIZONTALLY
MOUNTED 2x4" J-BOXES (by others)
AT POWER LOCATIONS.
MOUNT NON-POWER LOCATION
BRACKETS TO STRUCTURE.
ADE130028
