Cooper Lighting Sure-Lites SELDW Installation Instructions

IB505039EN
Installation Instructions for the Sure-Lites SELDW Emergency Luminaire for
Hazardous Locations
WARNING
Risk of Fire/Electric Shock
If not qualified, consult an electrician.
Important Safeguards
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE OBSERVED INCLUDING
THE FOLLOWING.
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
2. Do not use this equipment for other than the intended use.
3. Installation is to be performed only by qualified personnel.
4. Install in accordance with National Electric Code and local
regulatory agency requirements.
5. The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
6. SAVE THESE INSTRUCTIONS
MAX MOUNTING HEIGHT: 27.6 ft.
049-290
Risk of Electric Shock
Disconnect power at fuse or circuit breaker before
installing or servicing.
INSTALLATION – HAZARDOUS LOCATIONS
NOTE: For hazardous location compliance, the SELDW must
NOTE: Only proceed with installation to hazardous areas
1. Extend AC supply of rated voltage to conduit opening.
2. Remove the weather shield by removing the 4 screws in

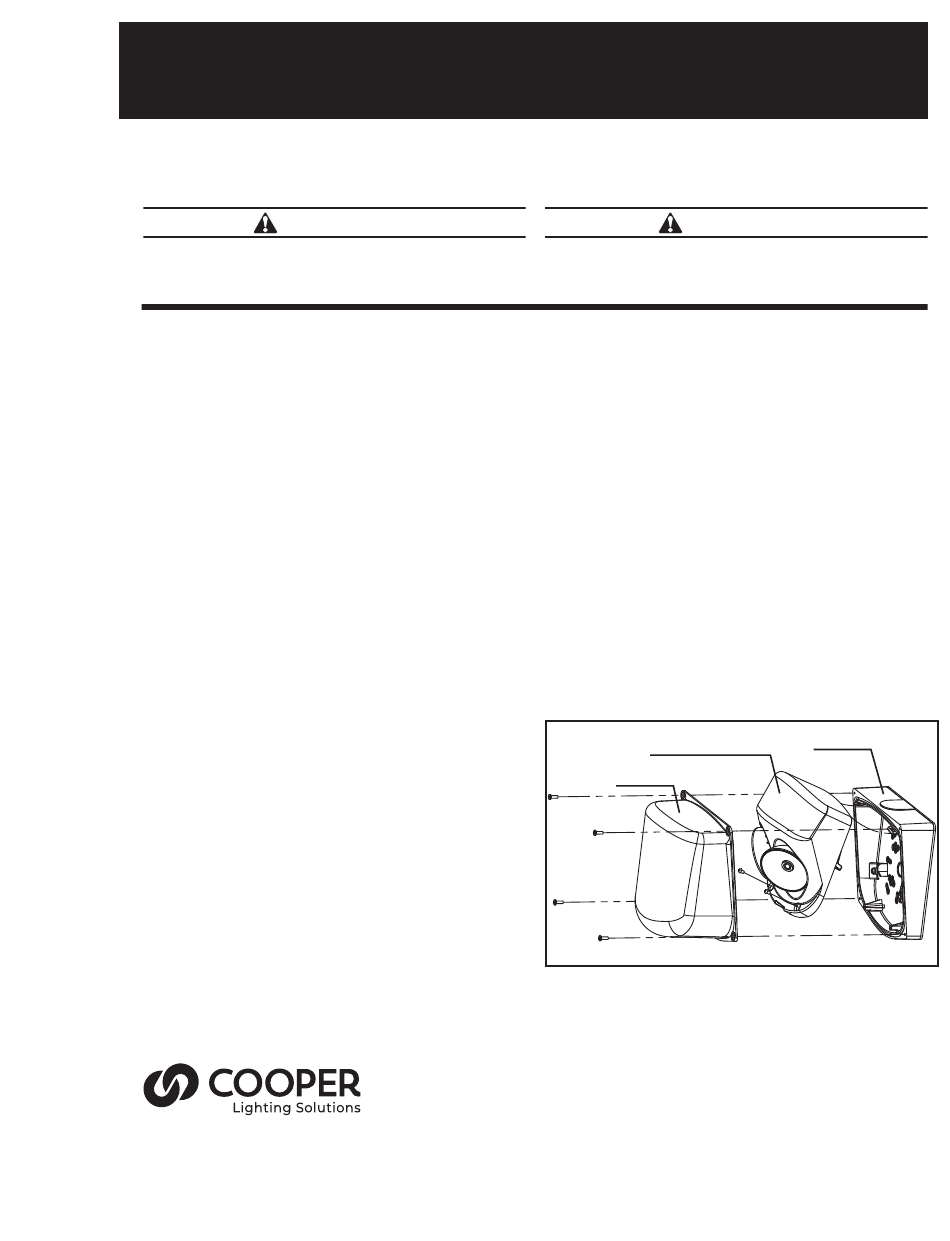

Figure 1
Weather Shield
SURE-LITES
WARNING
be installed using the provided conduit hub. The SELDW
should not be directly mounted to a junction box when
used in hazardous locations.
when area is non-hazardous.
Leave at least 18 inches of supply connection slack. Circuit
should not be energized. Use a wiring method suitable for
hazardous location ares.
the corners (See Figure 1). Due to the airtight nature of the
exit sign, the weather shield may be held on by a slight
vacuum. If this occurs, carefully pry the corners of the
shield with a flat head screwdriver, but do no damage the
water shield or inner gasket.
Cover
INS #
Backplate
